Arrakis Systems MARC-15 User Manual

S E R V I C E & M A I N T E N A N C E

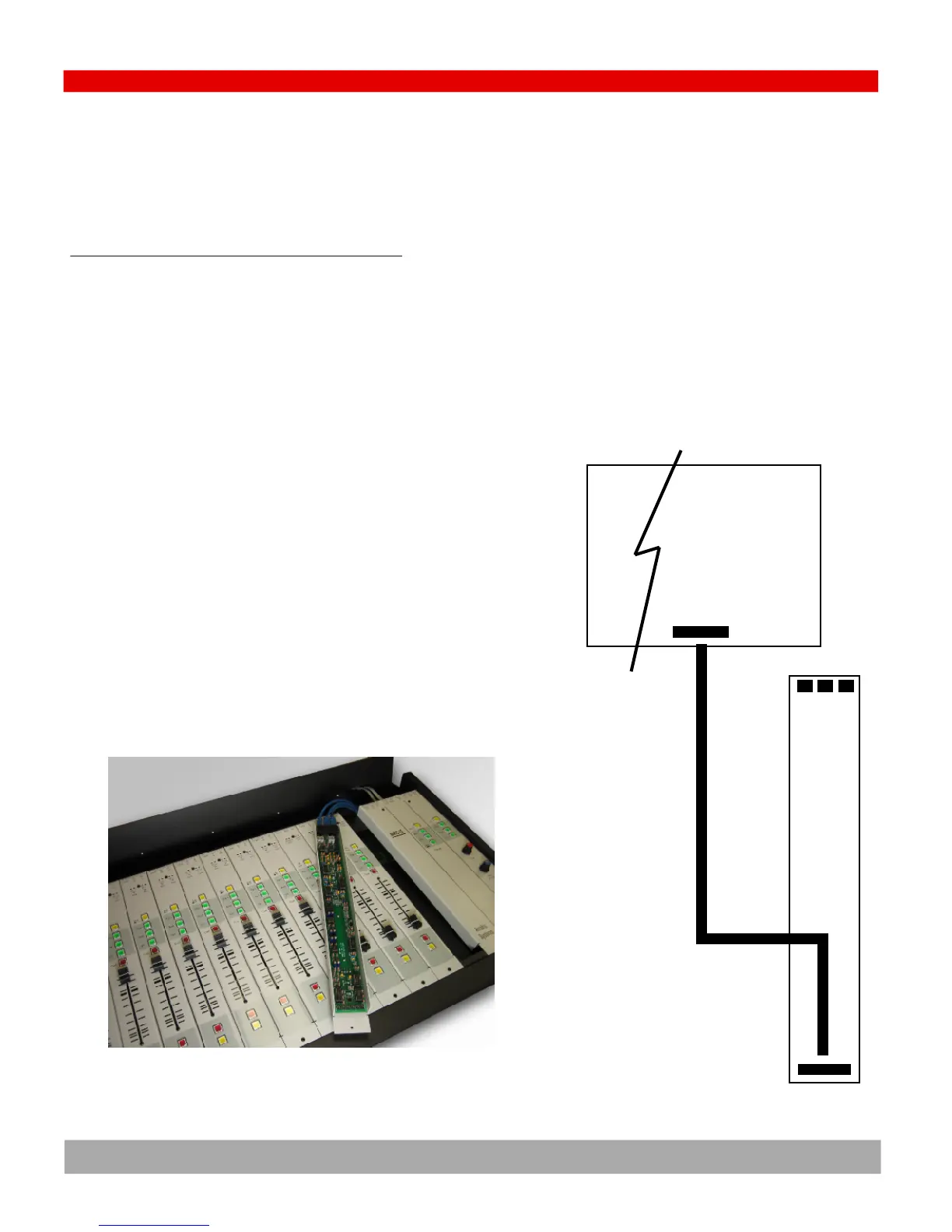

Removing an Input Module
The input modules have a single bus ribbon cable that connects them to the motherboard. Care should be taken when removing or
reinstalling this cable.
How to Remove an Input Module from the Mainframe
1) Turn all power off to the console
2) Remove the two screws that attach the module to the mainframe
3) Unplug the RJ45 IO cables located at the rear of the module
4) Lift the module up from the mainframe and unplug the 30 wire ribbon cable at the motherboard.Leave the cable plugged in at the
module end.
5) The module is now free.
6.2
Motherboard
Input
Module
Main
Bus
Ribbon
Cable
(30
wires)
