S E R V I C E & M A I N T E N A N C E

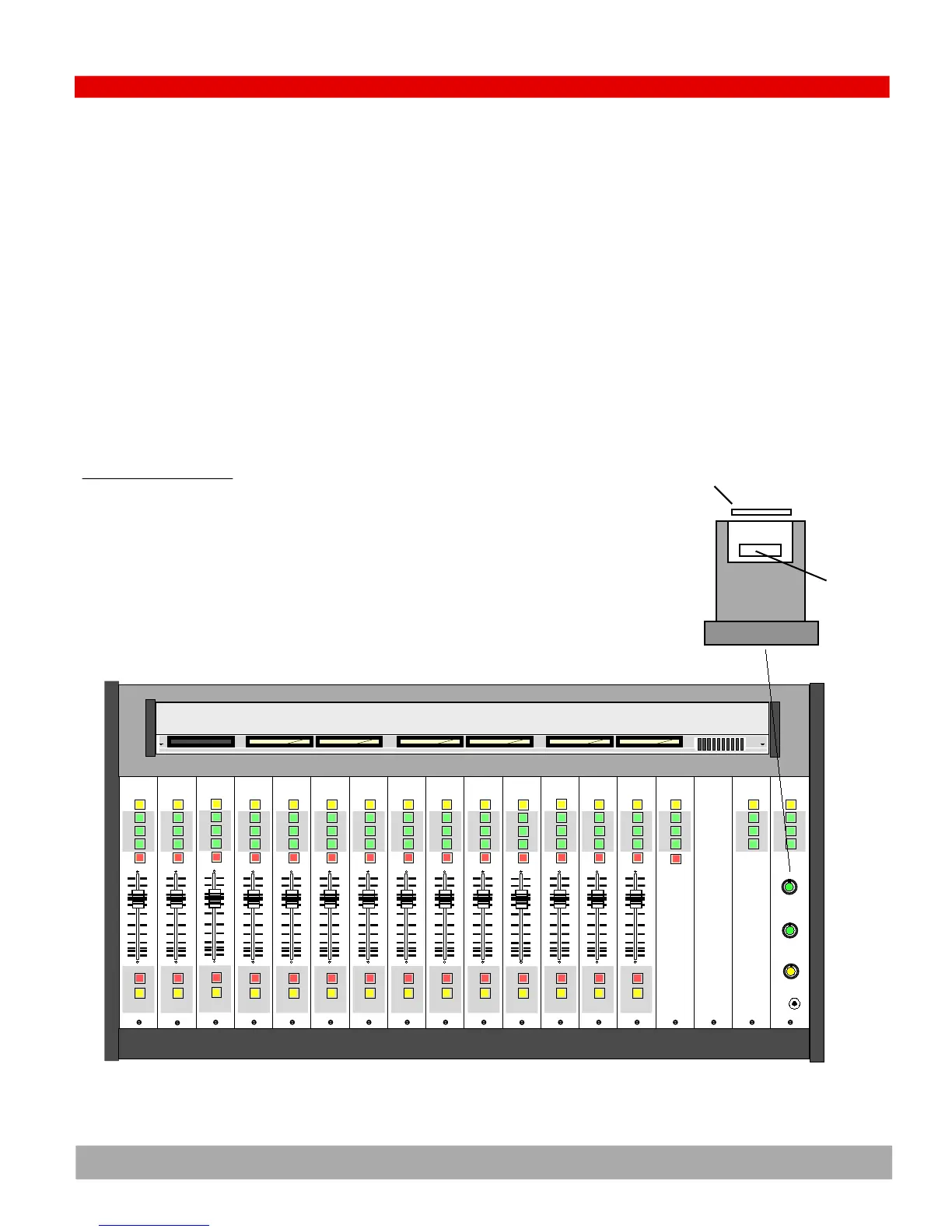

Replacing Rotary Faders
Pry cover from
top of the Knob
to reveal a lock
nut. Unscrew the
lock nut to remove
the knob
KNOB
COVER
KNOB
LOCK
NUT
All 3 rotary faders are in a single wiring harness that plugs into
the motherboard. The entire harness should be replaced with all
three pots. Contact the factory for a replacement harness.
To remove a rotary fader
(1) Remove the knob cover as illustrated
(2) Remove the nut and nut plate.
(3) The pot will now remove from the rear of the
front panel.
(4) Unplug the pot from the motherboard.
To put a new rotary fader in place:
Reverse the removal procedure
REMOVING THE KNOB
6.3
Replacing Slide Faders
Slide faders are soldered into the individual module PC boards. Replacement of the slide faders can be done by
qualified technicians in the field or the module may be sent into Arrakis for replacement of the fader.
