S E R V I C E & M A I N T E N A N C E

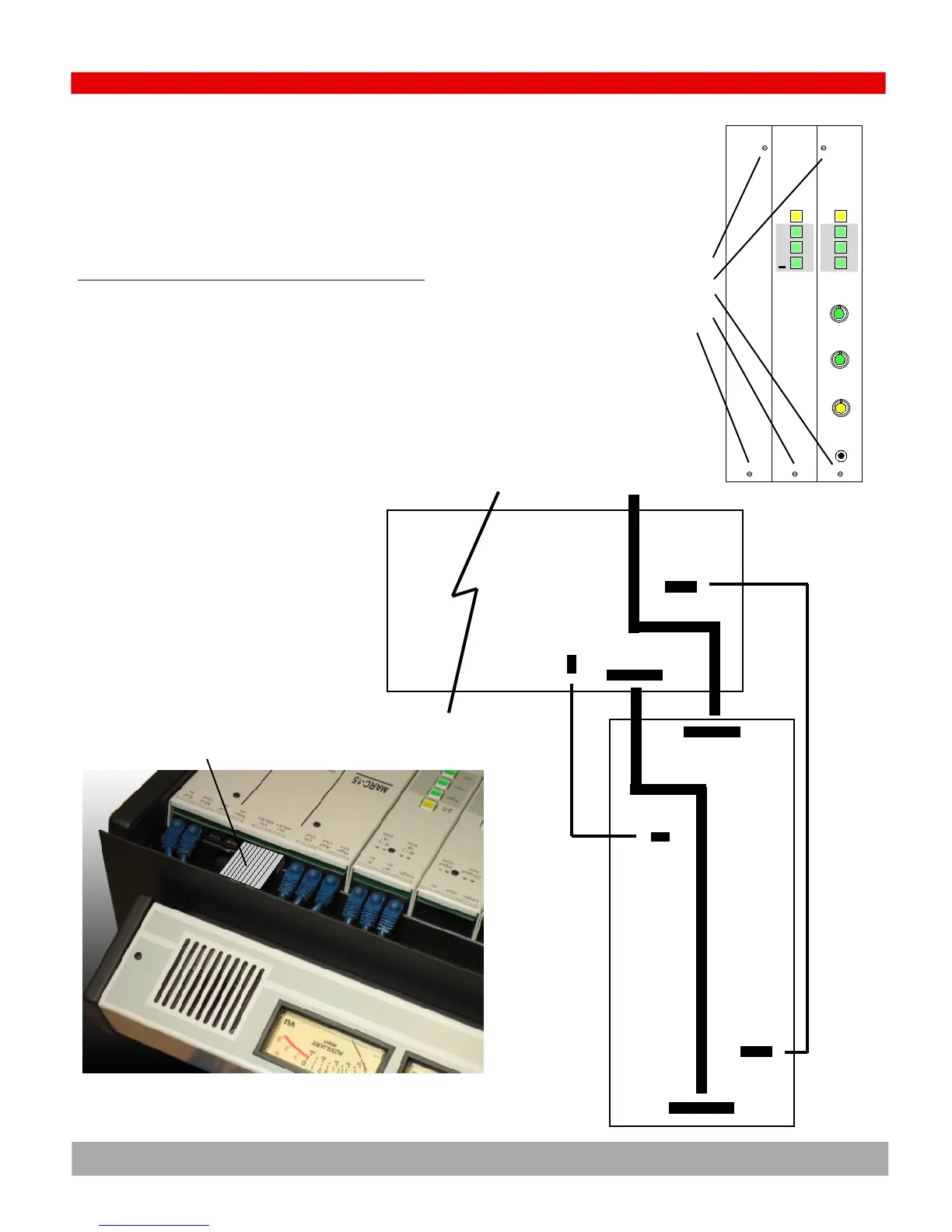

Removing the Output Module
The output module has four cables that connect it to the motherboard and the VU
meter bridge. While none of the cables are interchangeable, care should be taken when
removing or reinstalling these cables.
How to Remove the Output Module from the Mainframe
1) Turn all power off to the console
2) Remove the five screws that attach the module to the mainframe
3) Unplug the RJ45 IO cables located at the rear of the module
4) Lift the module at the rear and unplug the 26 wire ribbon cable to the VU meter
bridge.
5) Lift the module further and unplug the remaining 3 cables where they are plugged
into the motherboard. Leave the three cables plugged into at the module end.
6) The output module is now free.
6.2
Cue
Monitor
Head
phone
Aud
Utl
Ext1
Pgm
Stop
Auto
Reset
Start
Timer
Output Timer
Motherboard
Output
Module
Studio
Monitor
Ribbon
Cable
(10
wires)
Main
Bus
Ribbon
Cable
(30
wires)
Cue &
Earphone
Power
cable
(+5V &
ground)
VU Meter
Bridge Cable
Remove
five
mounting
screws
VU Meter Bridge ribbon cable
