Array electronic AF-10MR-A User Manual

C
hapter
II
I
nstallation and
W
iring

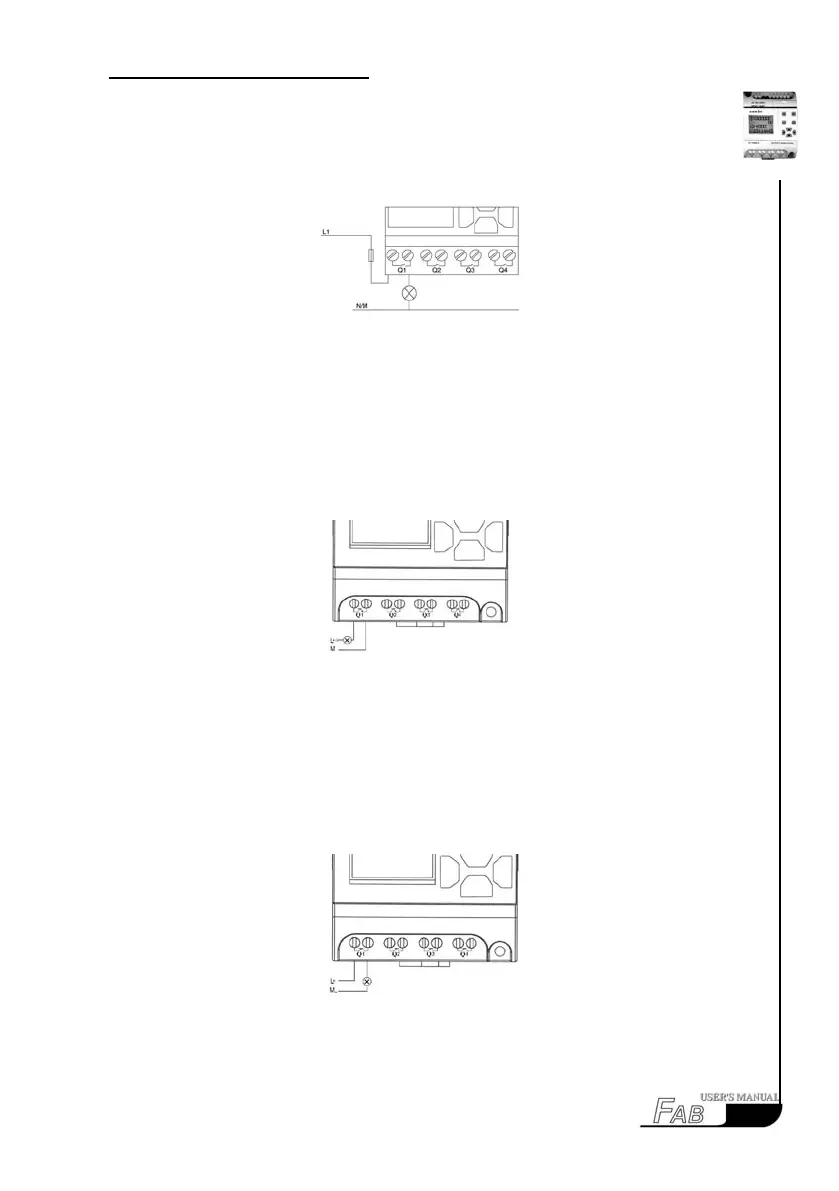

The connection is shown as follows:
Fig 2.10 Relay Output
2. Requirements for the transistor outputs
The load connected to FAB must have the following characteristics:When the
switch is ON (Q=1), the maximum current is 2A.
1) D type
Fig. 2.11 Transistor Output (D type)
Note:
1.“M” line should be connected to “M” of FAB Power supply, and the load
should be directly connected the “L+ ① ” of the load power.
2. The load voltage should be not more than DC80V.
2) GD type
Fig. 2.12 Transistor Output (GD type)
13
Transistors can be classied as D transistors and GD ones.
