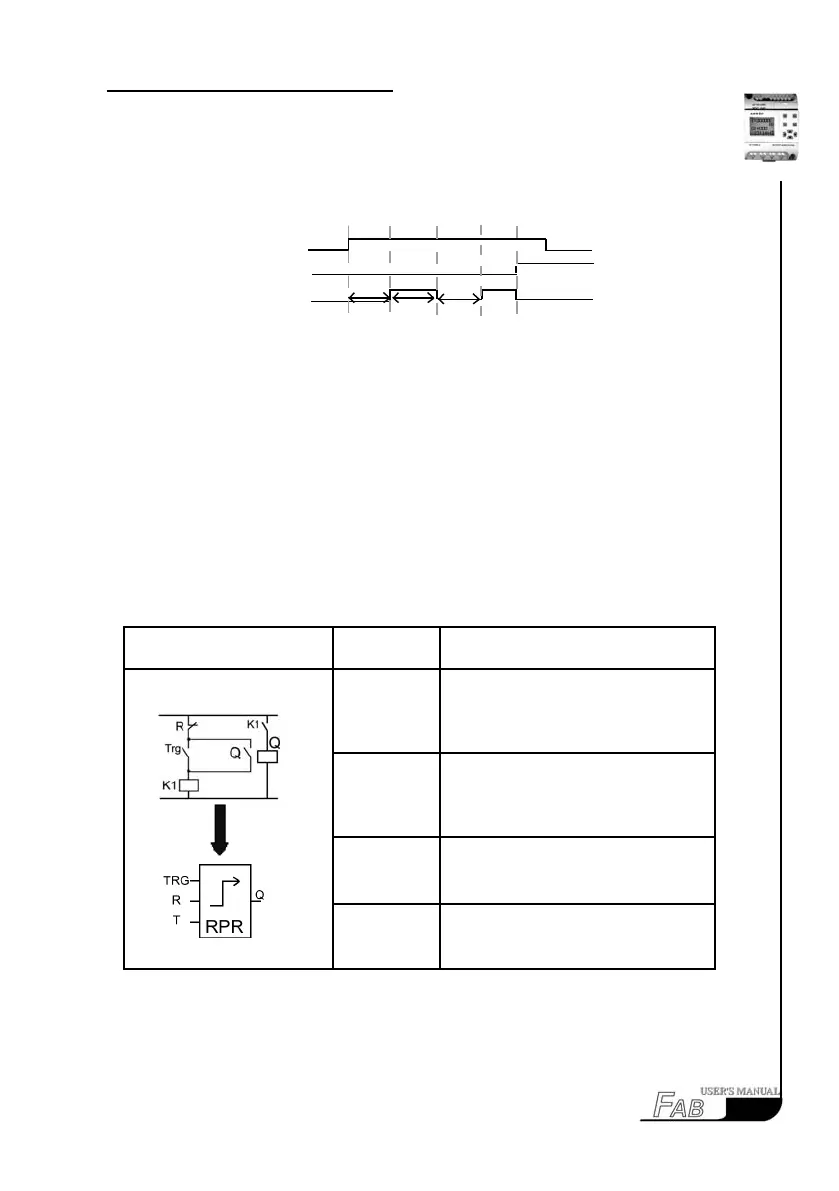

Time sequence frame is as follows:
Notes:
1. Use Parameter T to set ON/OFF time. The assignment range of T is 0.01 ~
99.99, and the time units can be set respectively to hour (H), minute (M) and sec-
ond (S). The time accuracy can reach 0.5‰.
2. Input EN (Enable) enables the CPG to work. Output Q of the CPG will ip-op
the status every time the time T elapses, and this cycle operation continues until
Input EN (Enable) is 0. Then the CPG stops operation and Output Q is 0.
3. This function is applicable to generate pulse automatically and to switch ON/
OFF automatically.
3.2.7 RPR
Line diagram / Symbol in
FAB
Pin Description
Input TRG
Timer for ON time delay is started via
Input TRG (Trigger).
Input R
Timer for ON time delay is reset to
ON via Input R, and make Output Q is
0 (R takes priority over TRG).
Parameter T
After TRG is triggered and the time T
elapses, the output is ON.
Output Q
After time delay T elapses, the output
is ON.
EN
R
Q
T T
T
33
