Detailed Description
PRECAUTION:
Please read this instruction carefully and start
working only if you feel safe about completing it.
If not, please contact:
ARRI Service Phone: +49/89/3809-2121
Email: service@arri.de

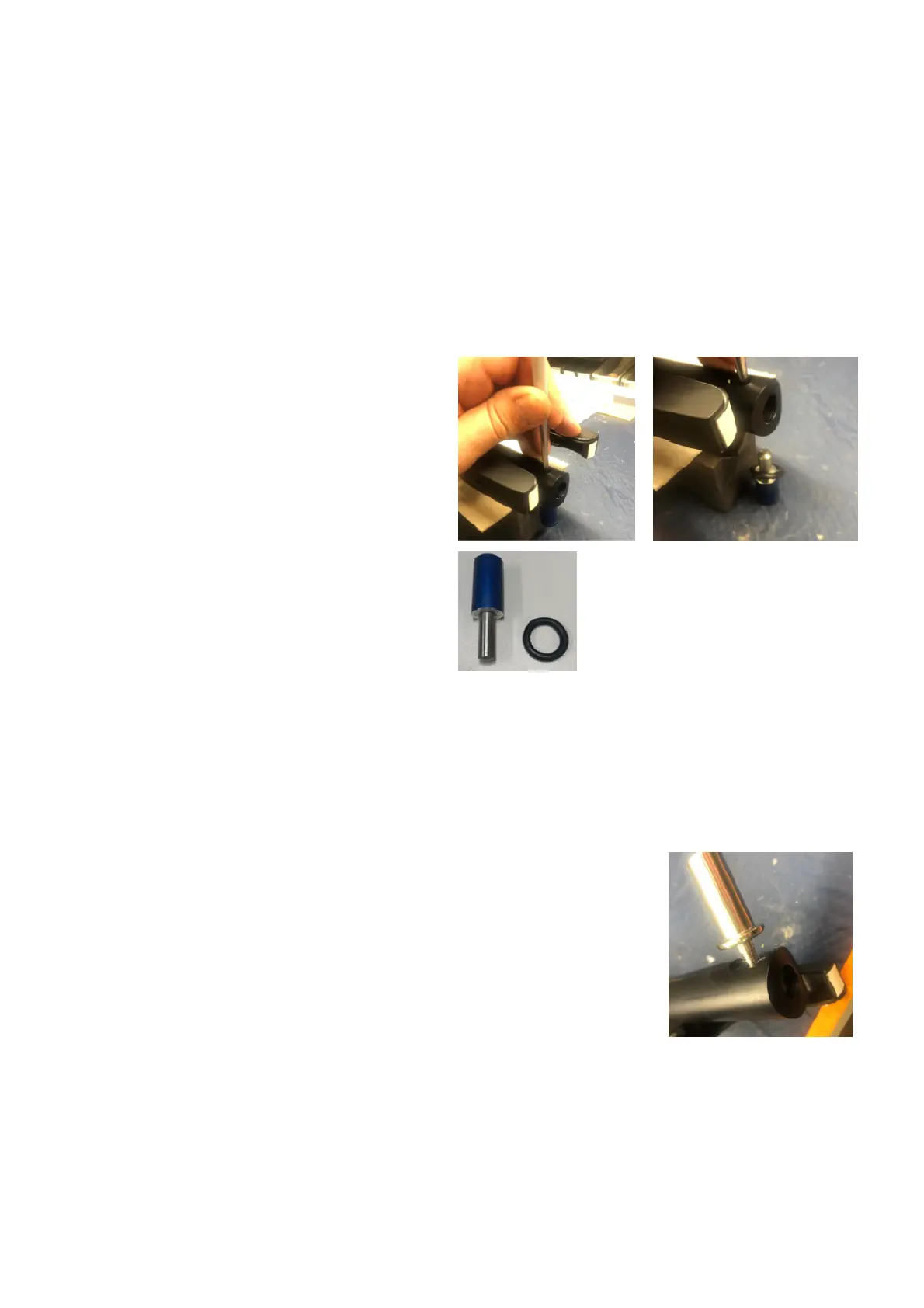

1. Removing the old pins
Hammer out the old Balance Pin
(blue or red) with a punch.
If it does not move, then heat it up
with a hot air blower to release the
adhesive.
These parts must be removed:
2. Placing the nut
Insert the transverse Captive Nut in the top rod
and align the thread with the hole.
(Nut = M8 (50.0025337)
3. Placing the new balance Pin
Screw the new Balance Pin (K5.0011587)
coated with Loctite 648 and tighten.
NOTE
Make sure that the surface of the
pin is not scratched.
4. Repeat this for the other Docking Pin
