4. How to Connect the Wires

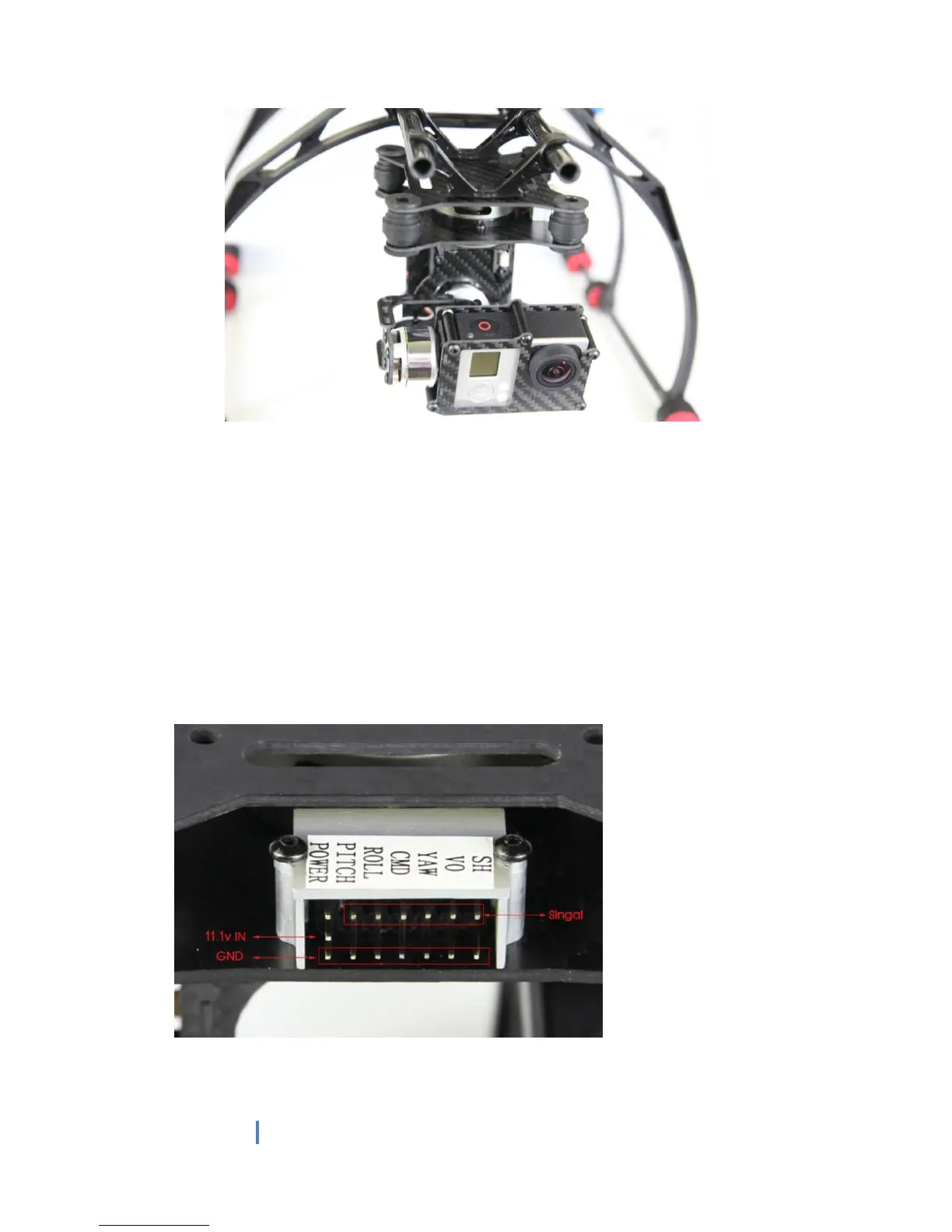

4.1 Plug defined positive and negative

(The mark on the metal case refers to the following function)

SH---Shutter

VO---Video Output

Yaw---Yaw

CMD--- Mode Switch

Roll---Roll

Pitch---Pitch

Power--- 12V Power Supply

4.2 How to Connect with the Receiver (Take Futaba R6208S as example):

Connect with receiver directly
