Arrma 4x4 BLX - Electronic Speed Controller (ESC) Details; ESC Specifications and Warnings; Throttle Setup Procedure

CONTROLLER OFF SECOND
ESC Specications
Input Voltage
2S-3S LiPo (7.4-11.1v) 35C 5000mAh Minimum
Req. 6-8 Cell NiMh (7.2v-9.6v)
BEC Output 6.0v/6A Max
Only use fully charged LiPo batteries (4.2V per cell) to prevent
battery/ESC damage.
Throt tle
Setup
Connect batteries, turn on TX and press/hold the set button ‘A’. Turn the switch on
‘B’ and release the set button when the RED light ashes on the ESC.

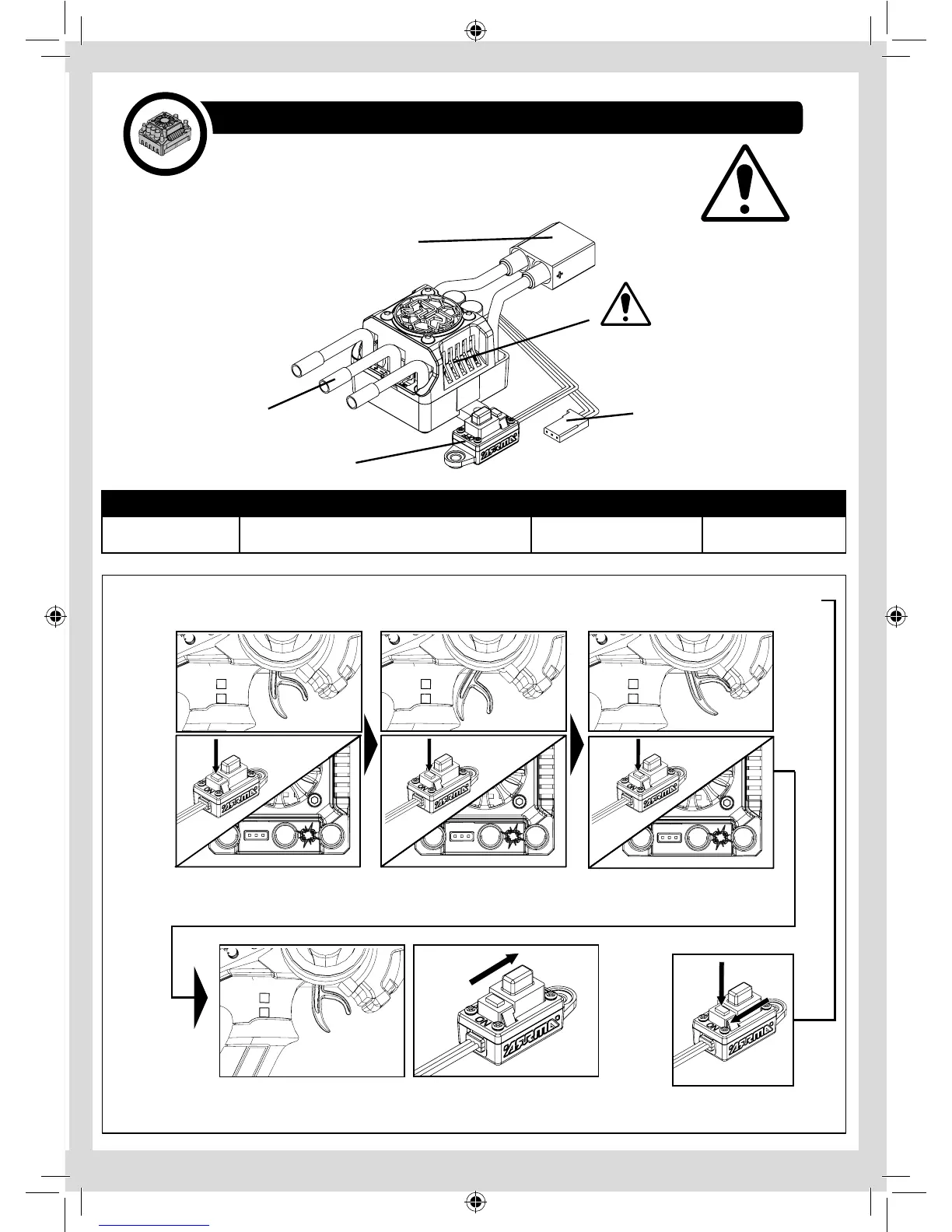

Electronic Speed Controller (ESC)
EC5 Battery Plug
HEAT-SINK MAY BE
HOT AFTER USE
Receiver Plug (CH2)
Power Switch & Set button
Motor wires x 3
1. TX in neutral - press set
button (1 Green ash)
2. TX full throttle - press set
button (2 Green ashes)
3. TX full brake - press set
button (3 Green ashes)
4. Switch o󰀨 ESC to complete setup
