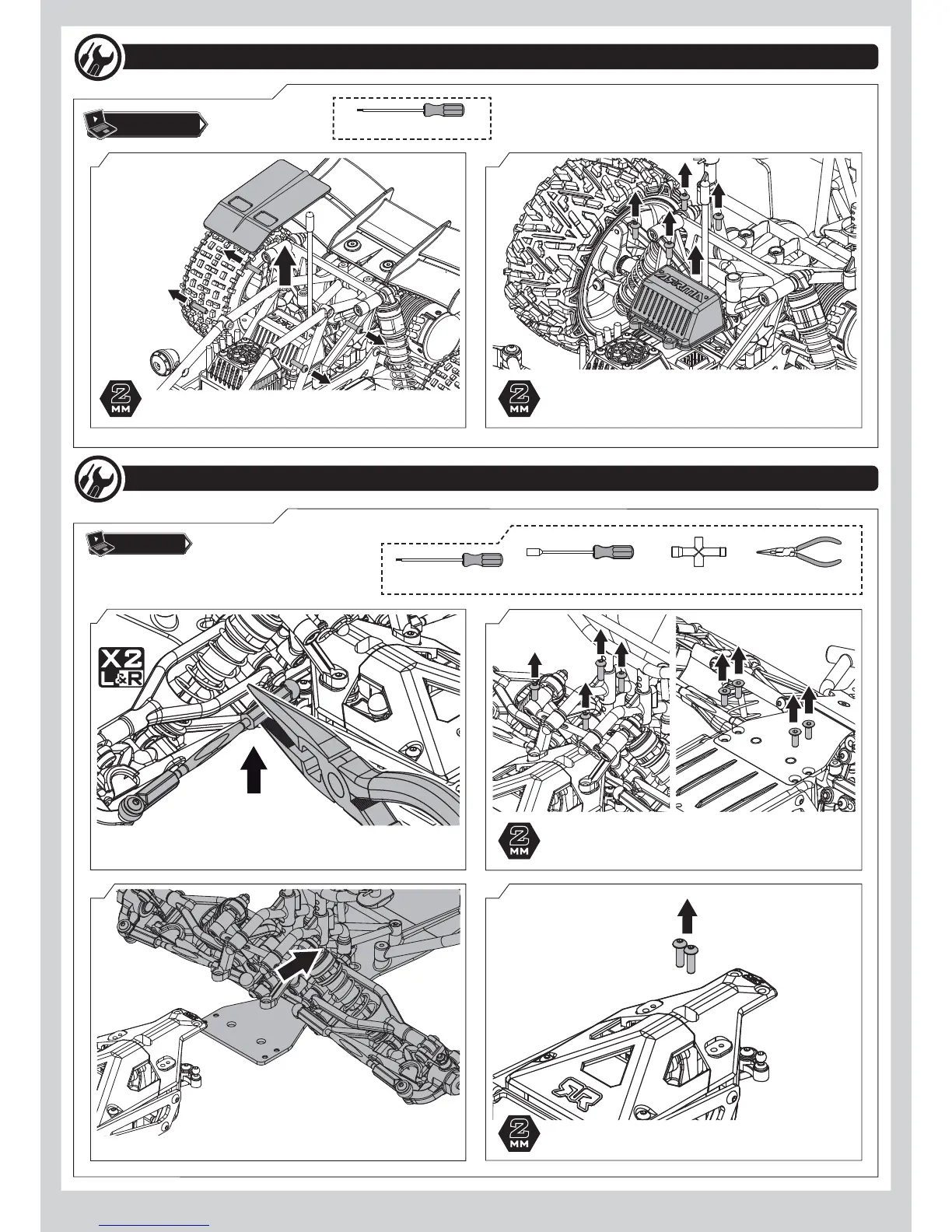

Radio-gear Maintenance
Steering Maintenance
Receiver Access
Steering Access
If you want to replace or upgrade the steering servo, ESC
(electronic speed controller) or re-bind the transmitter, you
will need to access the receiver.
If you find your car’s
steering feels loose it may mean you have to
adjust the servo saver. To do this you will have
to get access to the steering mechanism.
2mm Hex Driver
1
1
2
2
(Raider only) Remove four roof bolts with 2mm hex
driver, remove roof.
Disconnect steering link ball-joints on both sides with long
nose pliers.
Remove four bolts securing receiver box lid with 2mm
hex key, remove lid. Reinstallation is the reverse the
removal process.
Remove four button screws above and four
countersunk screws below servo box with 2mm hex
driver.
Tools Required
2mm Hex Driver 7mm Nut Driver or Cross Wrench Long-nose Pliers
ARRMA-RC.COM/
SUPPORT/
ARRMA-RC.COM/
SUPPORT/
Tools Required
3
4
Separate front sub assembly from rest of
chassis.
Remove two bolts holding steering assembly to chassis
with 2mm hex key.
