Assembly InstructionsHarriet
14

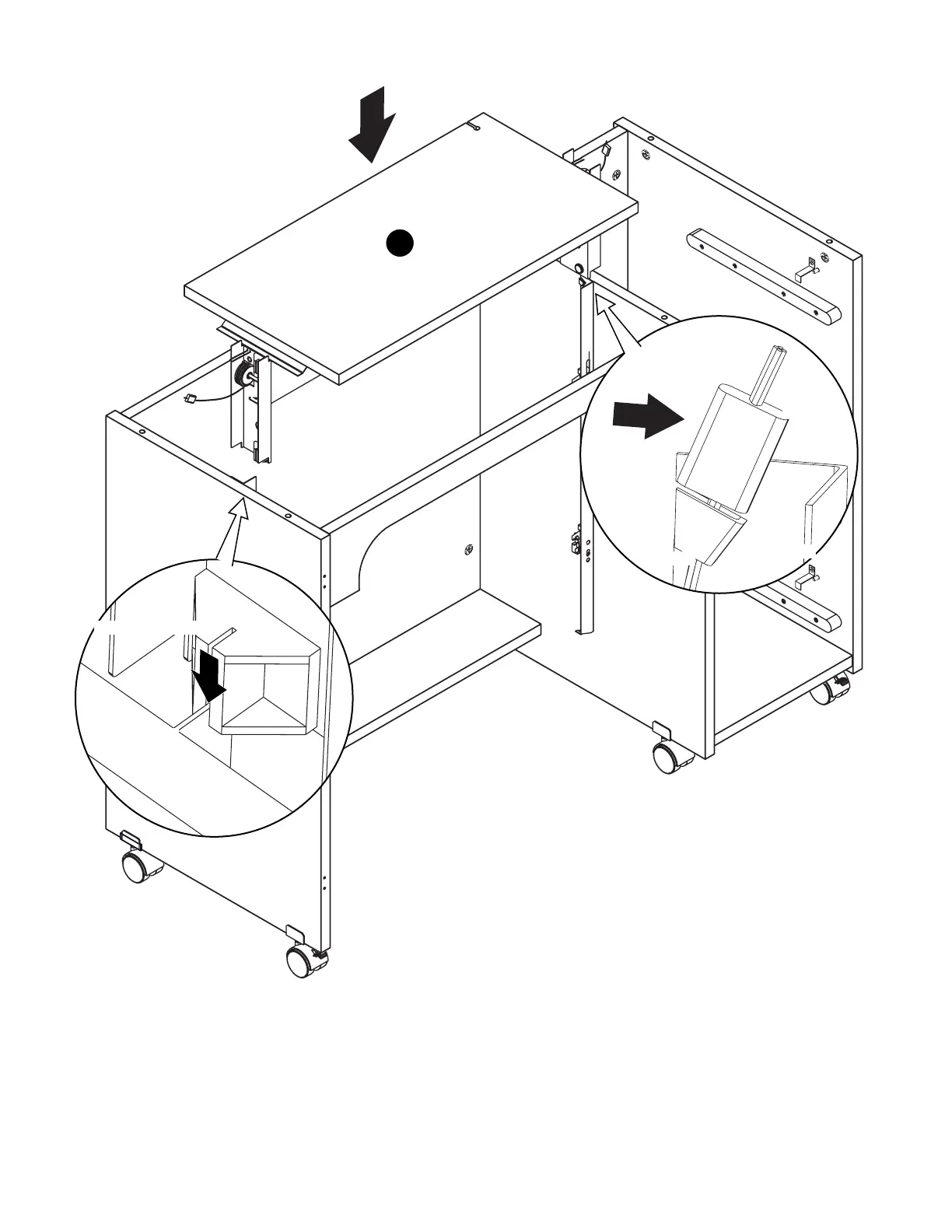

Step 4: Lift Installation
Lift rail
Plastic guides on Lift
Rail tabs
Lift rail
Cable
Guide Lift onto Lift Rails using plastic guides. Insert ends of cable into rail tabs; make sure the cable is hooked into the rail
tabs on both sides.
Cut the zip tie on the wooden block, but DO NOT remove the block yet.
Lower the Lift to first lock position and remove the wooden block. DO NOT ADJUST LIFT POSITION until the top is installed,
or you risk the Lift coming out and cables becoming disengaged.
