Arrow Harriet 305 - Par Ts List: Hardware

Assembly InstructionsHarriet
4

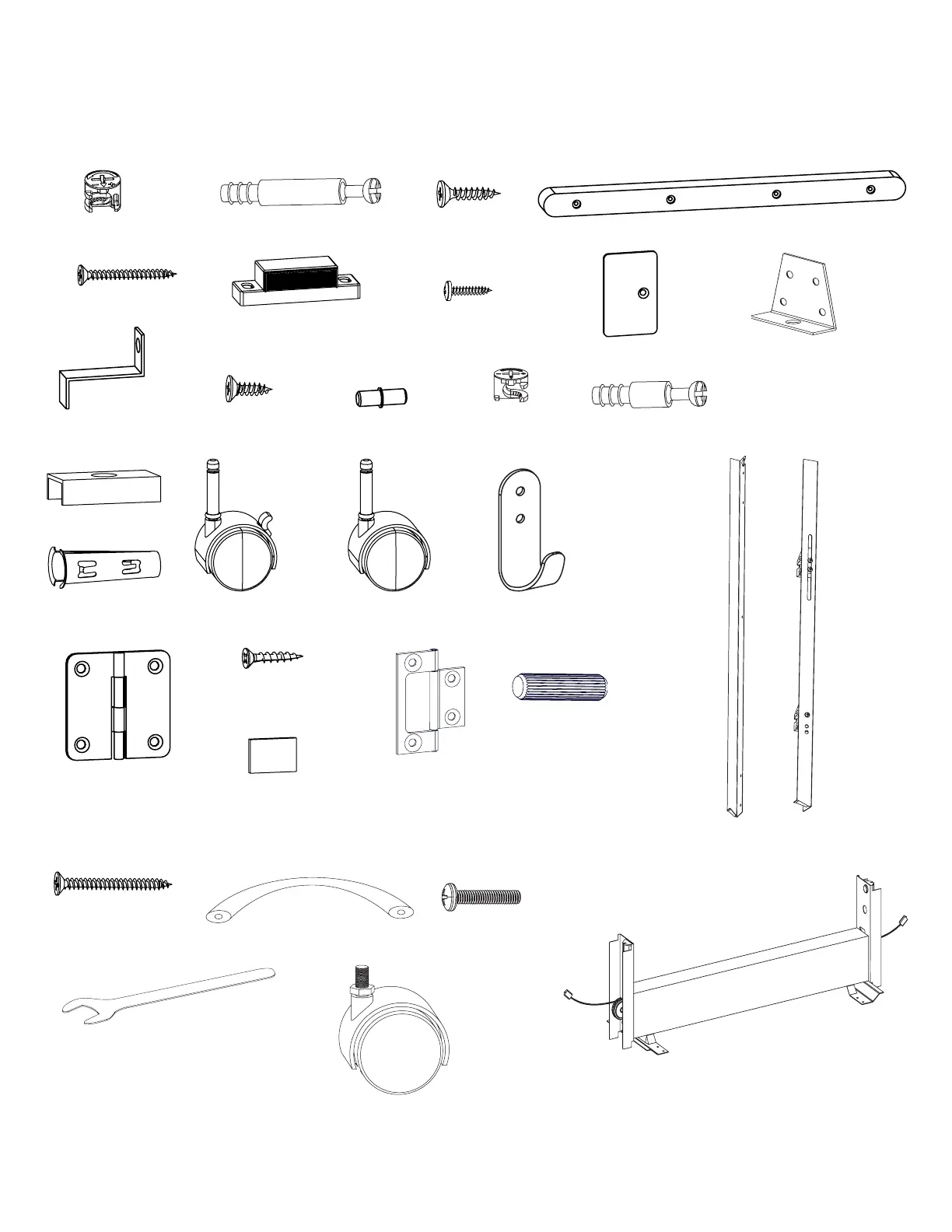

Parts List: Hardware
TIP: Keep all the parts in their individually labeled bags. This will make finding parts easier as you assemble your cabinet.
12mm Cam Lock x27
10mm Cam Lock
x16
Large Cam Bolt x27
#6x1” Flathead Screw x32
Small Cam Bolt x16
Strike Plate x1
Door Magnet x1
#6x5/8”
Gold Panhead Screws x2
Handle x5
4x19 Fix Bolt
x10
4x14 Screw x30
Drawer Runners x8
Drawer Stoppers x4
Door Hooks x4
#8x5/8” Screws
x8
Metal Dowels x4
Caster Clip x5
Caster Insert x5
Non-Locking Casters
x3
Locking Casters
x2
Support Hinge x2
#7x5/8” Flathead
Screw x9
Self-Sticking Rubber
Tab x1
Lift Rail
(Left) x1
Lift Rail
(Right) x1
Lift x1
Flush Hinge x3
Wood Dowel x14
#10x1-1/4”
Flathead Screw x16
Caster Bracket x1
Wrench x1
50mm Non-Locking Caster x1
