Assembly InstructionsHarriet
5
Step 1: Cabinet Shell - Back and Left Panel
12mm Cam Lock x6
Long Cam Bolts x6
Lift Rail
(Left) x1
4x14 Screw x3

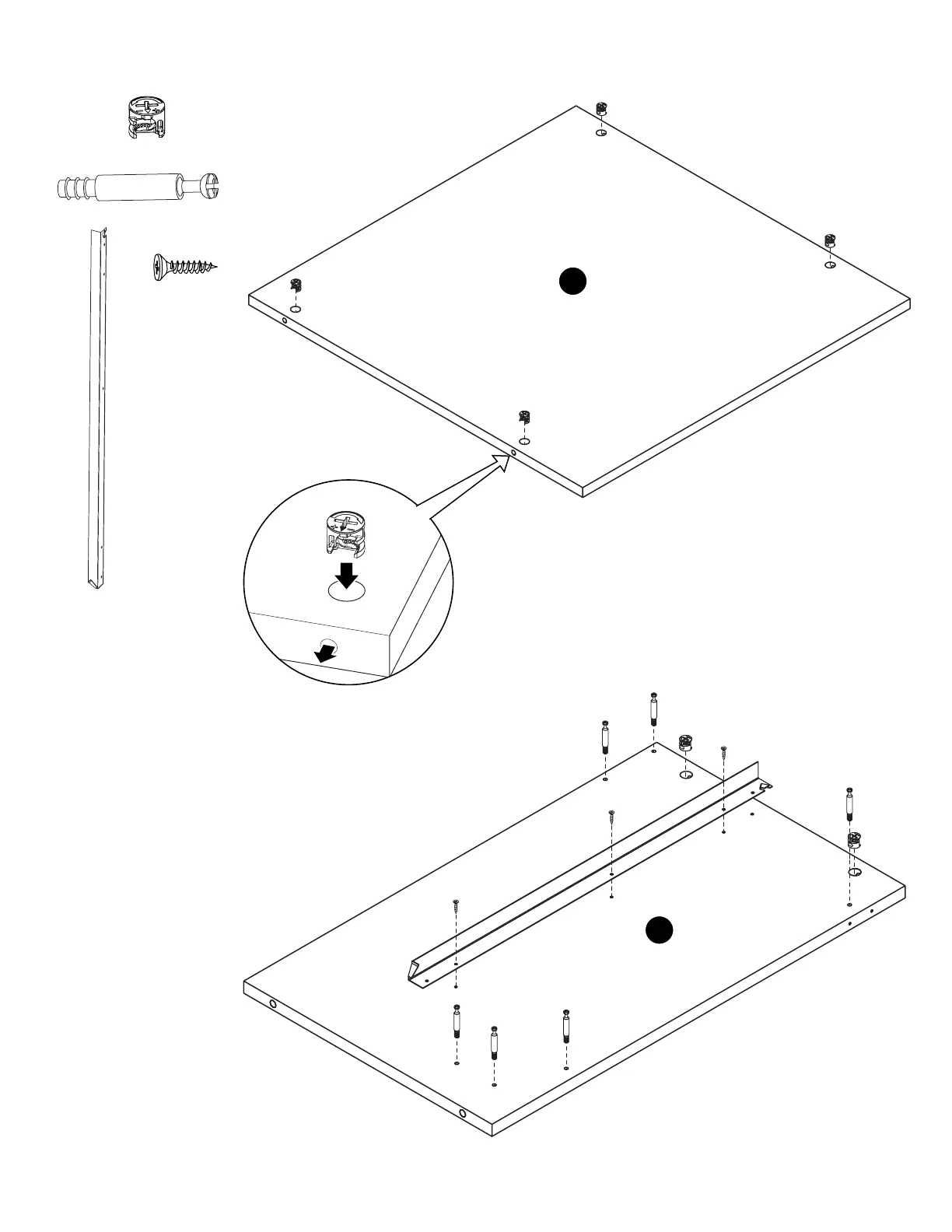

Insert 4 Cam Locks into Panel G. Be sure that the arrow
on the cam lock is pointing toward the edge of the panel
(as shown at left).
Attach the following hardware to Panel D:
- 2 Cam Locks
- 6 Long Cam Bolts
- the Lift Rail (Left), using 4x14 Screws
To Next Page
