Assembly InstructionsHarriet
6

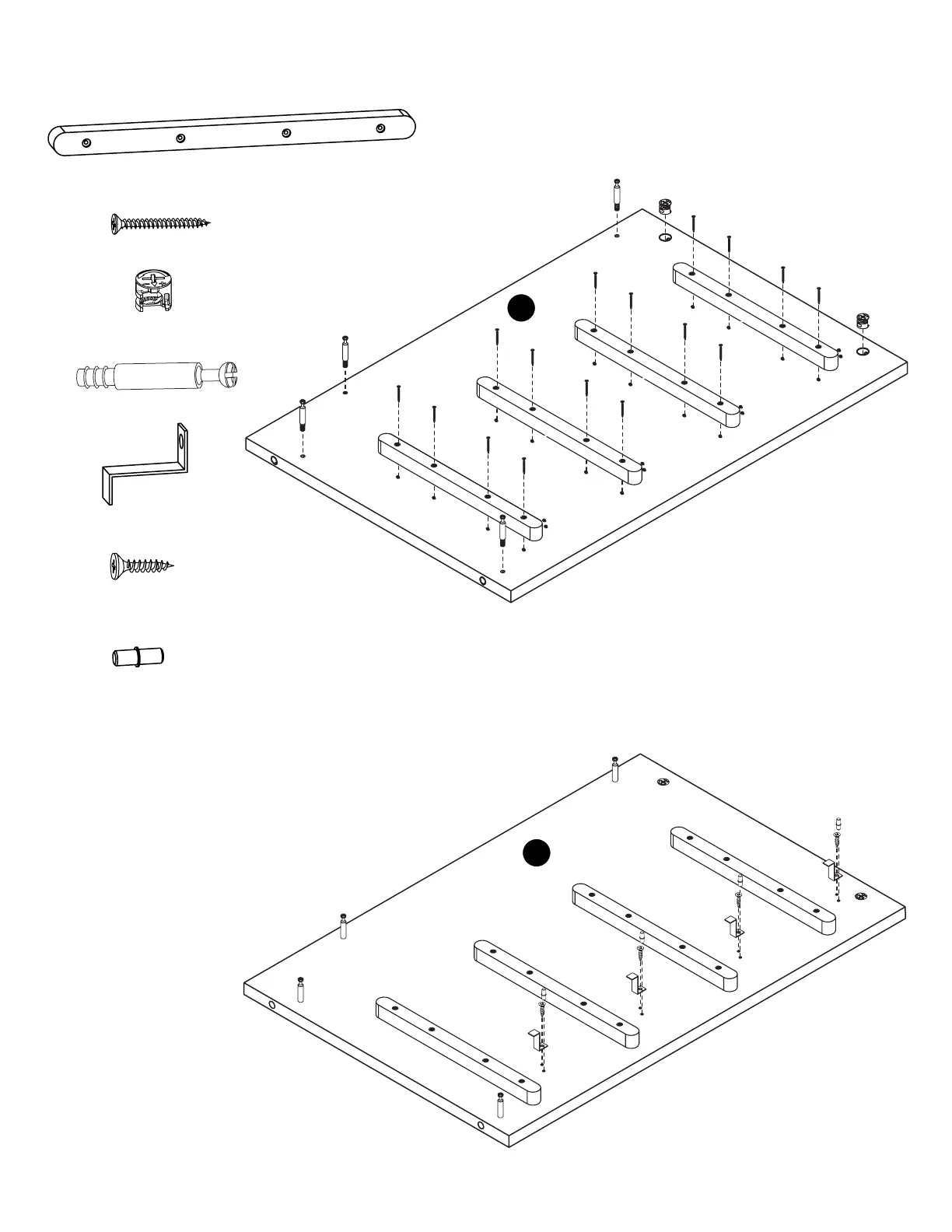

Step 1: Cabinet Shell - Right Panel
12mm Cam Lock x2
Drawer Runners
x4
#6x1” Flathead Screws x16
Long Cam Bolts
x4
Metal Dowels
x4
Drawer Stoppers
x4
Attach the following to Panel E:
- 2 12mm Cam Locks
- 4 Long Cam Bolts
- 4 Drawer Runners with #6x1”
Flathead Screws
Once the Cam Locks, Cam Bolts and Drawer Runners are
attached to Panel E, attach 4 Drawer Stops with 4x14
Screws, and insert 4 Metal Dowels as shown.
NOTE: Do not tighten the screws completely. Make sure
you leave enough space for the drawer stopper to swivel.
4x14 Screw x4
To Next Page
