Assembly InstructionsHarriet
13
Step 4: Lift Installation
LIFT INSTALLATION WARNING:
DO NOT remove the small wooden block from the Lift until assembly is complete. If the block is removed or falls out
before lift assembly is complete, the cables will retract, making installation more difficult. If the
block falls out before complete assembly, Please call Customer Service at 1-800-533-7347,
ext. 1 for assistance, or visit www.arrowsewing.com/assembly and find the
“Alternate Airlift Attachment Steps” video.

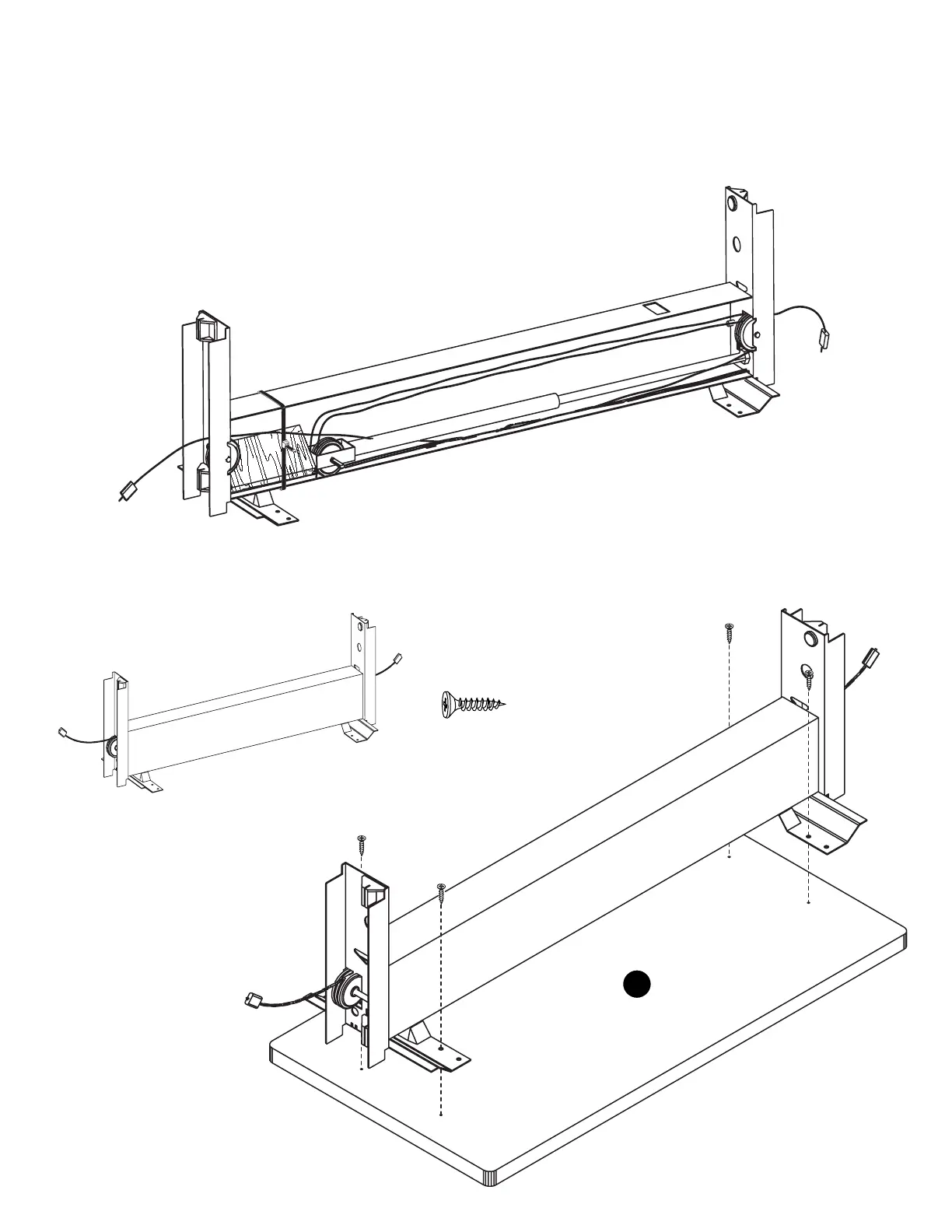

This illustration shows the back view of the Lift. Notice the
wooden block and zip tie; the wooden block holds the piston
in place so that the cables can be easily handled and inserted
into the Lift Rails installed on your cabinet.
Lift x1
4x14 Screw x4
Attach the Lift to Panel M using
4x14 Screws.
To Next Page
