Assembly InstructionsHarriet
7

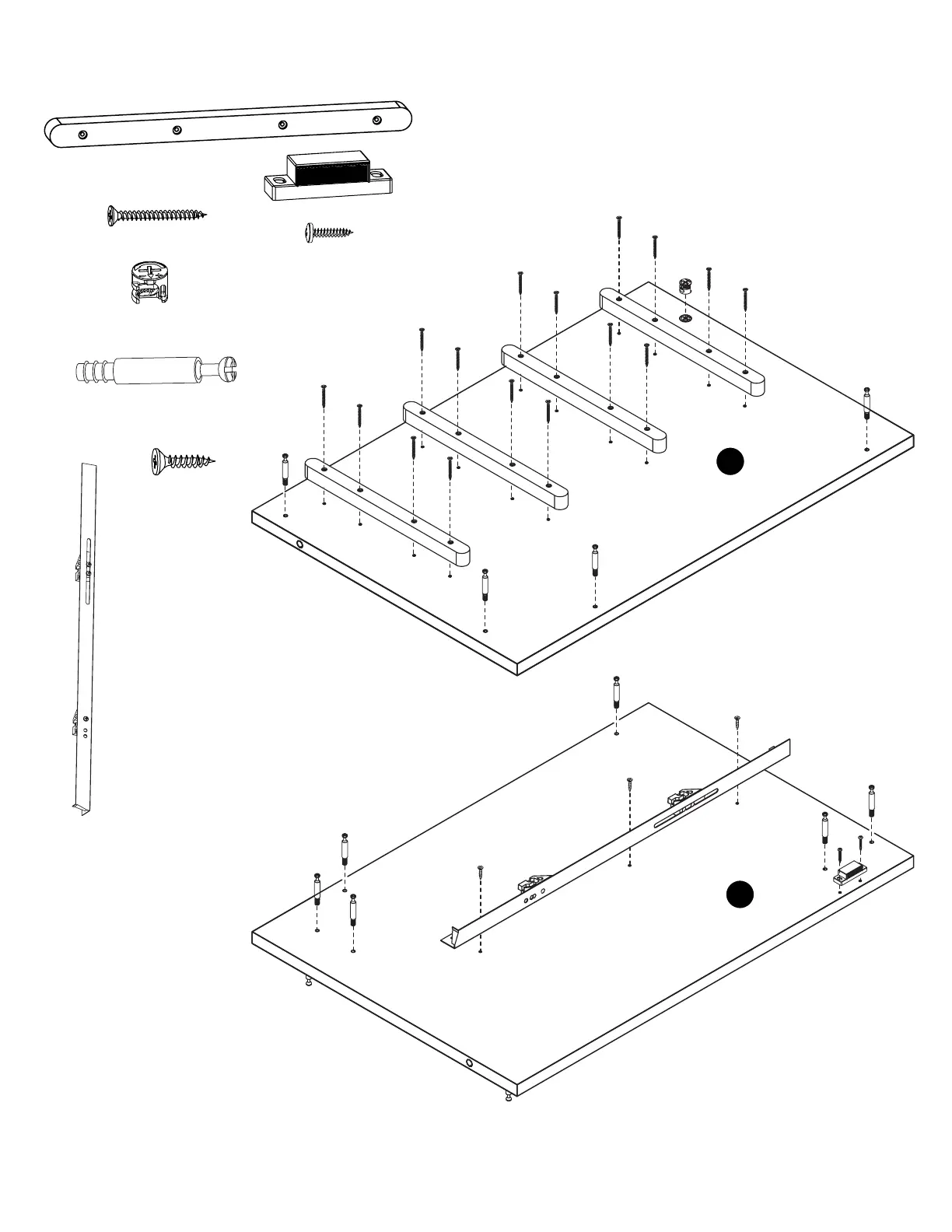

Step 1: Cabinet Shell - Partition Panel
Side One
Side Two
12mm Cam Lock x1
Drawer Runners
x4
#6x1” Flathead Screws x16
Long Cam Bolts
x10
Lift Rail
(Right) x1
4x14 Screw x3
Attach the following to Panel F (Side One):
- 1 12mm Cam Lock
- 4 Long Cam Bolts
- 4 Drawer Runners with #6x1” Flathead Screws
Flip Panel F over.
Attach to Panel F (Side Two):
- 6 Long Cam Bolts
- Lift Rail (Right), using 4x14 Screws
- Magnet with #6x5/8” Screws
NOTE: When installing the Magnet, make sure that the magnetic side is facing the front edge of Panel F as shown.
Door Magnet x1
#6x5/8” Gold
Panhead Screws x2
To Next Page
