Arrow HM8667 - Step 2; Frame Assemblies

Step 2
B15
15
● Parts Needed For ●
Frame Assemblies
●●
●●
● 6615 Rear Wall Angle (2)
●●
●●
● 9924 Rear Wall Channel (2)
The main frame pieces reinforce the
walls. These pieces will later be in-
stalled in the center and at the top
edge of the rear wall. Proceed as
follows:

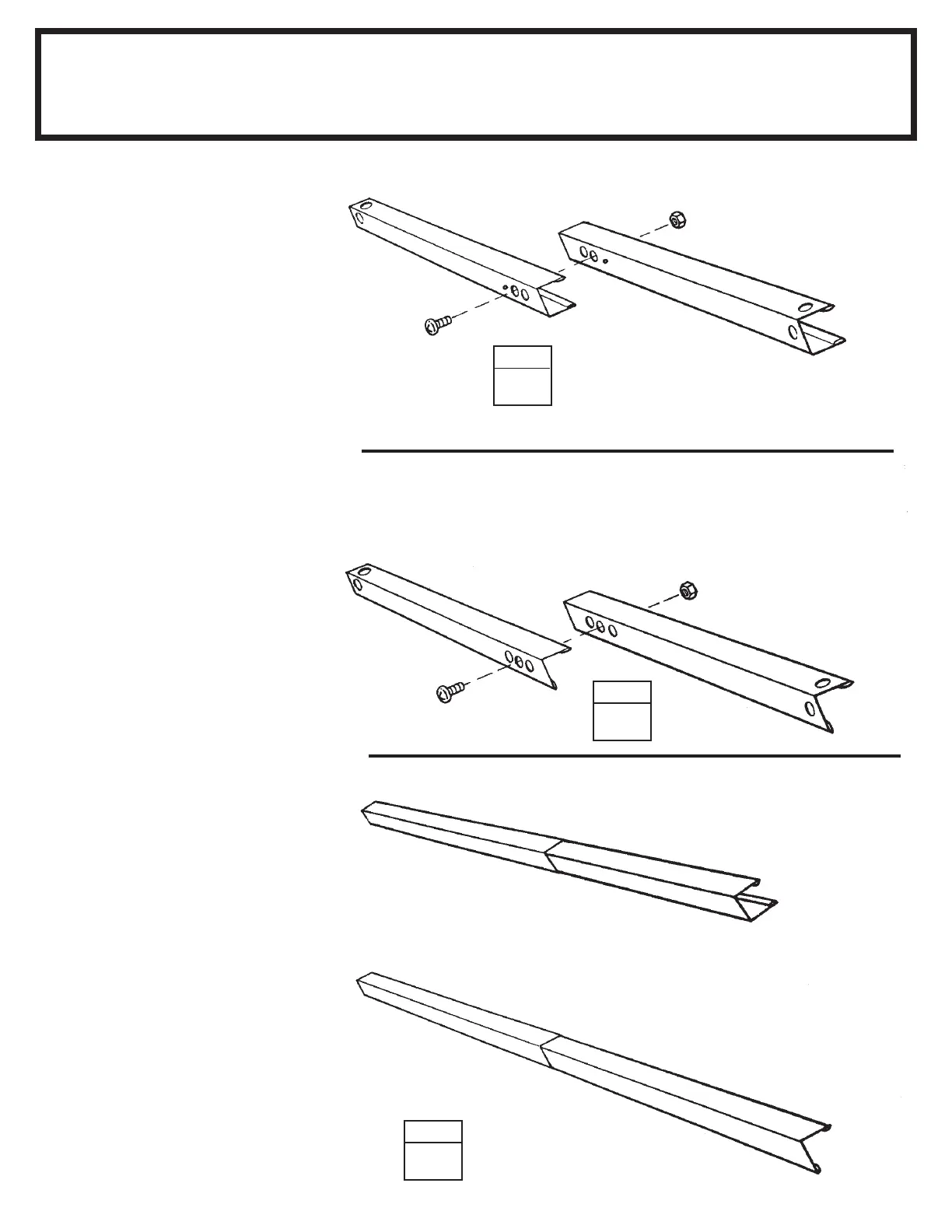

1 Overlap the rear wall channel
pieces as shown in the figure and
fasten the two pieces together with
one bolt in the center hole (three
holes will align).
2 Overlap the rear wall angle pieces
as shown in the figure and fasten
them together with one bolt in the
center hole.
3 Double check the length of each
and set these pieces aside for later
use.
9924
9924
STEP
1
Rear Wall Channel
94 5/8" 240,3 cm
6615
STEP
2
6615
Rear Wall Angle
94 5/8" 240,3 cm
Rear Wall Channel
94 5/8" 240,3 cm
Rear Wall Angle
94 5/8" 240,3 cm
STEP
3
