Arrow LW108 - Wall Panels

25
6515
6515
7332
7332
7332
7332
6515
6515
Whenever a crimped rib and an uncrimped
rib meet, the crimped rib should be placed
UNDER the uncrimped rib if possible.
Wall Panel
4
6515
Wall Panel
4
7332
Crimped Rib
Uncrimped Rib
You will need for this page:

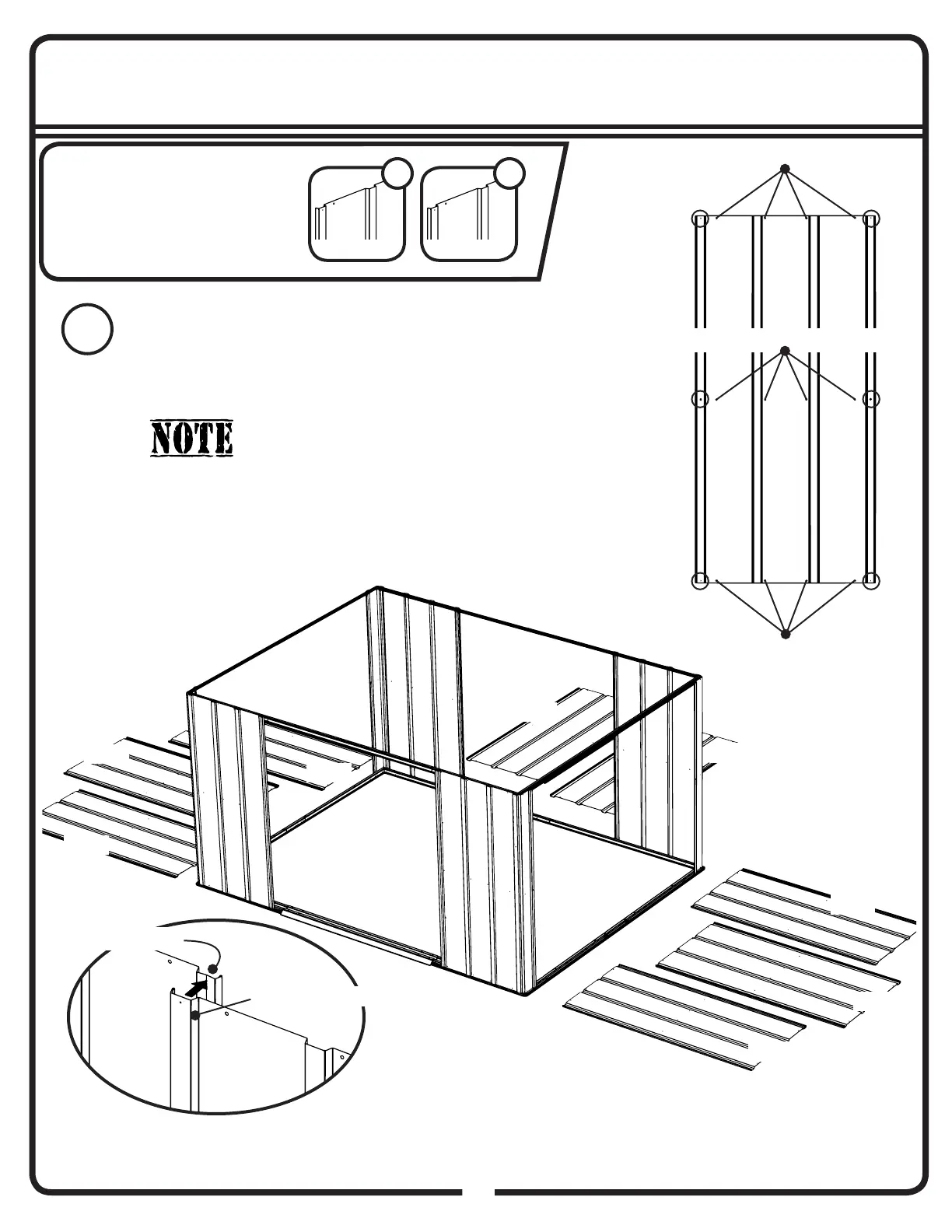

Step 8: Wall Panels
Lay out all Panels in the positions shown below.
Double check that you have the correct Panel in
each location.
1
FASTEN TO WALL ANGLES
FASTEN TO FLOOR FRAMES
FASTEN TO WALL CHANNELS (STEP 10)
Use the diagram to the right when attaching Wall Panels.
• Secure the top row to Wall Angles.
• Secure the middle row to Wall Channels (Step 10).
• Secure the lower row to Floor Frames.
• Secure the circled holes to the Panel next to it.
25A
[ NO HARDWARE NEEDED
FOR THIS STEP ]
