Arrow LW108 - Page 31

31
Attach Brace with bolt thru
second hole from bottom only.
Install Track Support.
You will need for this page:
Step 11: Continued

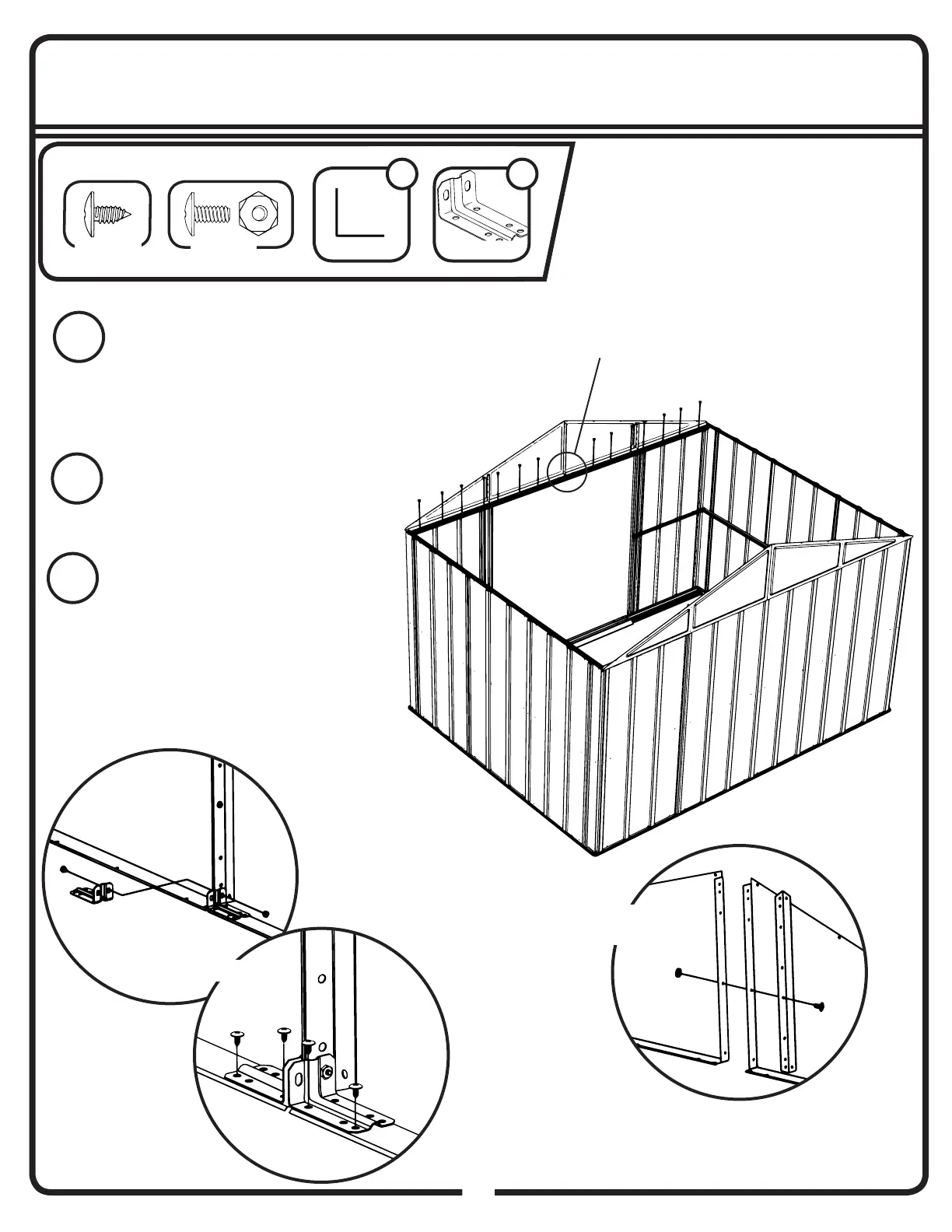

Working with one Gable at a time,
attach the front Gables to the Door
Track with screws. Do not insert
screws into the two (2) holes closest to the
peak of each Gable. These will be used to
attach the Track Support later.
5
6
To secure Gables together, position
the Gable Brace as shown and
insert a single bolt and nut through
the second hole from the bottom only.
Leave two (2) holes open on each side of
the Gable peak to attach Track Support.
7
Position Track Support as shown.
Secure Track Supports to Gable
using one (1) bolt and nut. Secure to
Door Track using two (2) screws per side.
(QTY: 2)
Gable Brace
1
9009
Track Sup.
2
(QTY: 18)
31A
