35
An Awl may be used to help
align holes that are only slightly
misaligned. Take care not to bend
or warp the metal, and always practice
proper tool safety.
2
1
3
4
5
7
8
6
(QTY: 24)
(QTY: 8)
Right End
2
8578
Left End
2
8579
Washer
Bolt
Nut
GABLE
You will need for this page:
LEAVE THESE HOLES OPEN
FASTEN TO NEXT PANEL
2
1
3
4
5
7
8
LEAVE THIS HOLE OPEN
6
LEAVE THIS HOLE OPEN

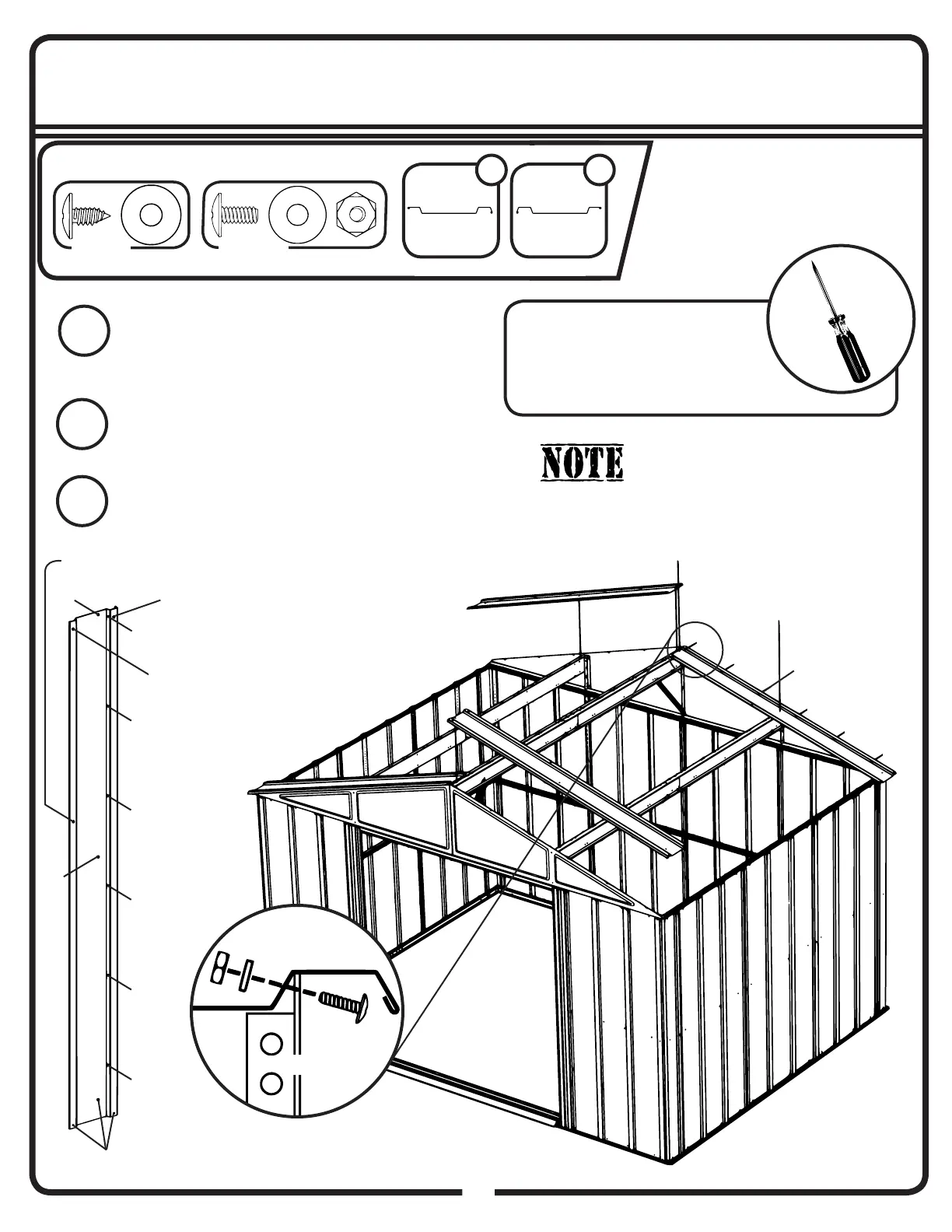

Step 13: Roof Corners
Secure the fi rst End Panel to the Main Roof
Beam by placing a screw in hole #1 (from the
diagram below). Carefully remove the Gable
Edge Trim once the Panel is in position.
Fasten Panel to Gable by placing bolts through
holes #2 - #7. Fasten the holes in order.
Work one corner at a time. Be sure
to fi nish a corner before moving on to
the next one.
Secure the Panel to the Lower Roof Beam
by placing a screw in hole #8. Repeat for other
three End Panels.
35A
To Next Page
