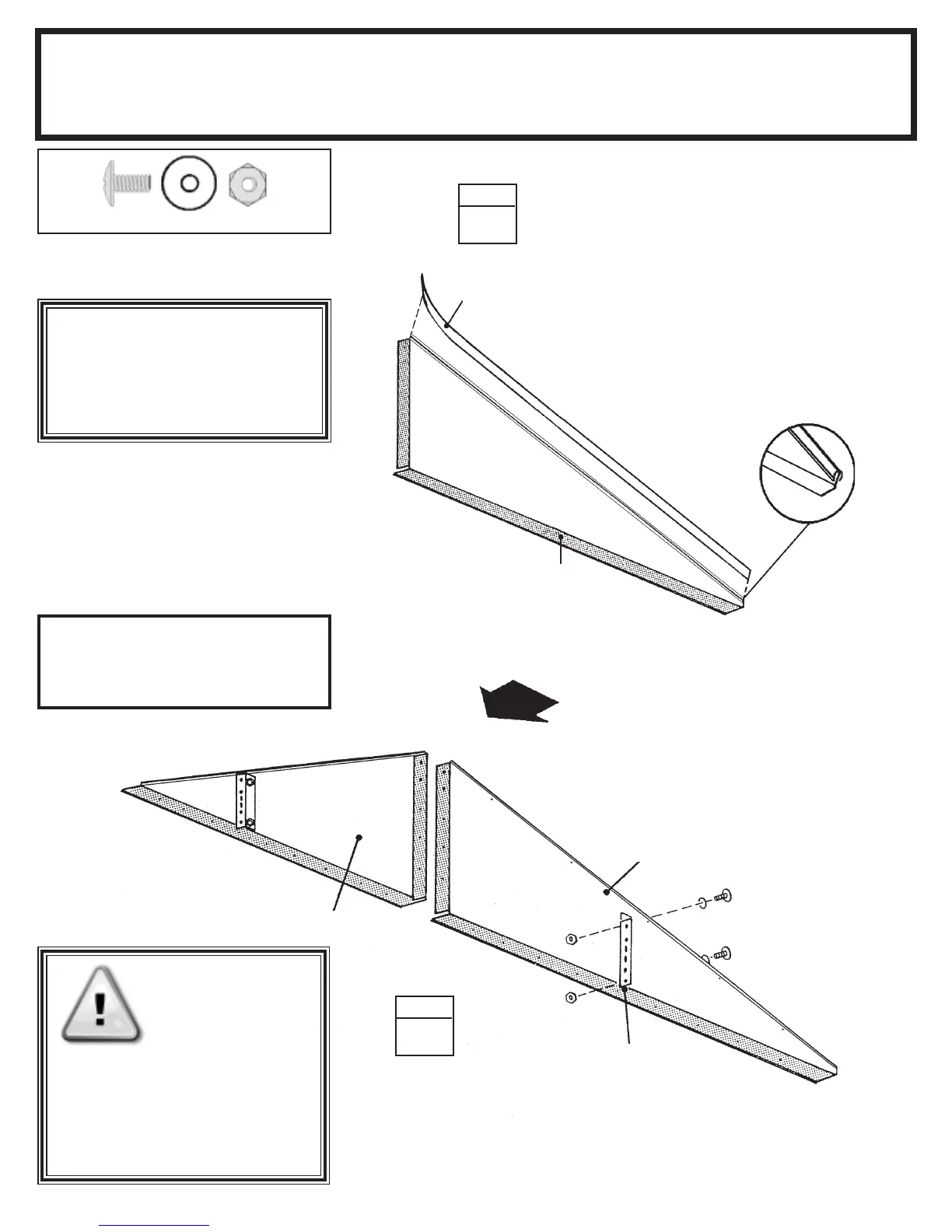

23
The gables go on top of the front and
rear walls to support the roof beams.
NOTE
The gables are packed nested
together and might be mistaken
as one piece. Carefully separate
them before continuing.
1 Apply edge trim to the top edge of
the right gables and left gables.
2 Attach the four roof beam
brackets to the gables using two
bolts, washers and nuts.
NOTE
Mounting leg of bracket must
face toward center of gable
● Parts Needed For ●
Gable Assemblies
Step 10
N23et
●●
●●
● 8576 Right Gable (2)
●●
●●
● 8577 Left Gable (2)
●●
●●
● 6635 Roof Beam Bracket (4)
STEP
2
(8)
6635
Roof Beam
Brackets
8577
FRONT
8577
8576
To avoid mishap on the sharp
edge the edge trim must remain
in place on the top edge of the
gable until right and left roof
panels are in place.
Washer
Edge Trim
(plastic piece)
STEP
1
CAUTION:
To Next Page
