Step 13
N26et
● Parts Needed For ●
Right Roof Panel
●●
●●
● 8578 Right Roof Panel (1)
Installing the roof panels is best done
with a step ladder. Begin installing
roof panels at the back right corner of
the building. Each screw and bolt in
the roof requires a washer.
NOTE
Measure the building diagonally
again and make adjustments to
make sure the building is square.
This will make the roof panels fit
better, and holes will align.
NOTE
If a Roof Beef-Up Kit was
purchased, assemble prior to
attaching the roof panels.

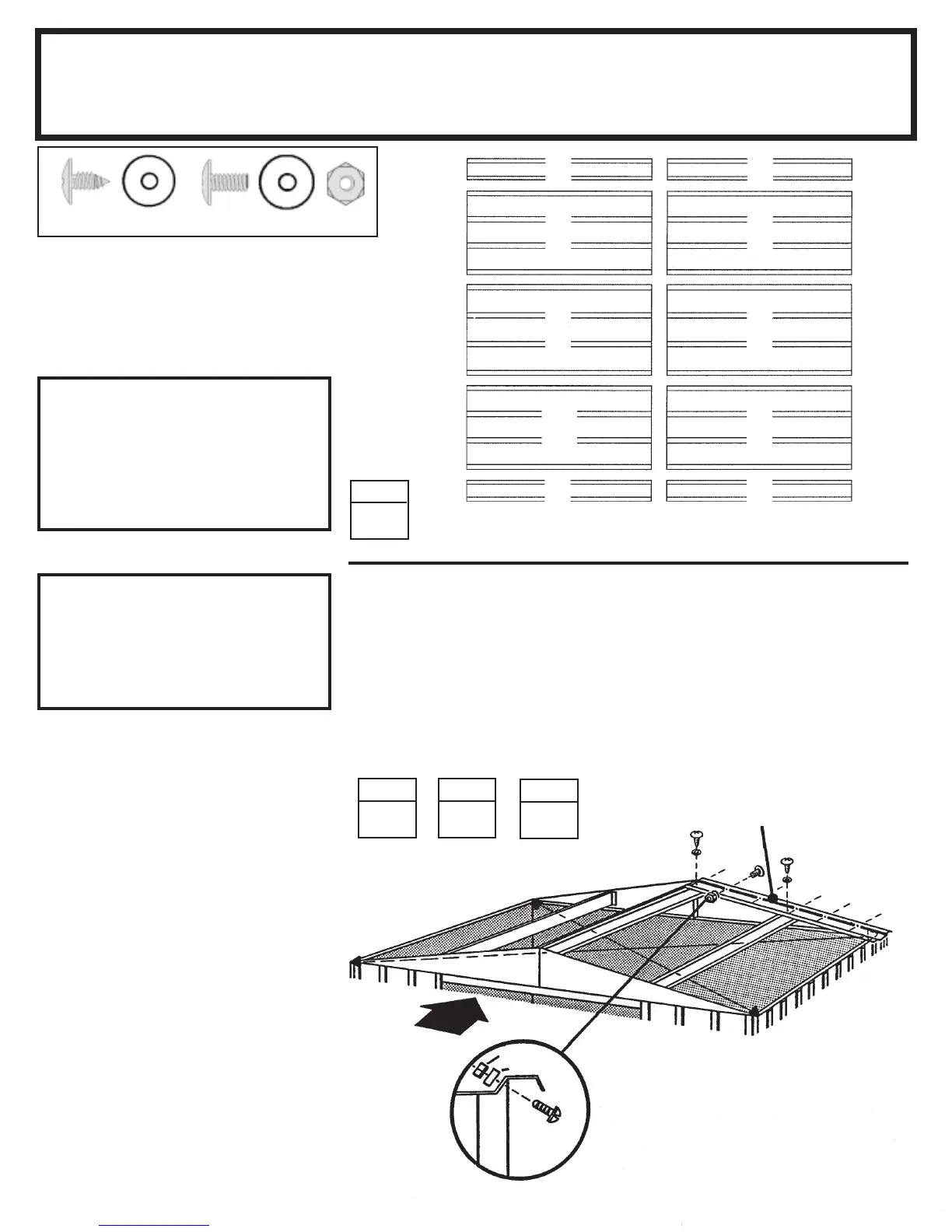

1 Locate the roof panels and find the
right roof panel.
2 Position a right roof panel at the
back right corner and fasten to the top
roof beam using a screw.
FRONT
Washer
Bolt
Gable
STEP
1
Nut
1
2
3
4
5
6
7
8579
7571
7571
8578
8579
7571
7571
8578
8
6
2
4
1
5
7
3
FRONT
7743
7743
10
9
8
(2) (6)
3 Remove edge trim from the left gable under
the roof panel.
4 Continue fastening the right roof panel to
the gable and lower roof beam using screws,
bolts and nuts as shown. Do not fasten the
lower end of the panels to the side wall angles
at this time.
Hint: Follow the fastener sequence
shown for proper alignment.
STEP
2
Right Roof Panel
8578
STEP
3
STEP
4
To Next Page
