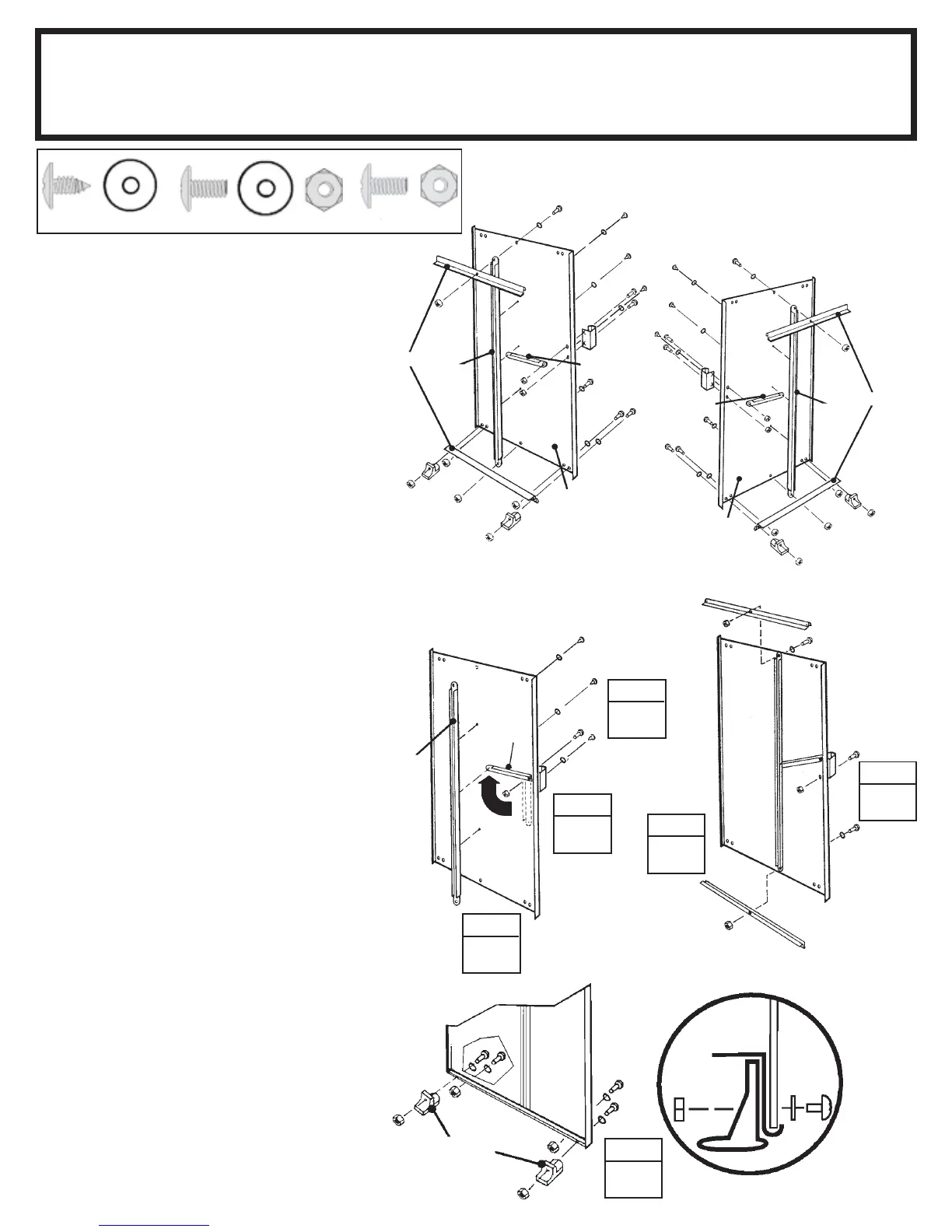

Arrow LW108FB - Step 17: Door Assembly; Door Assembly Parts; Assembling Door Handle and Brace; Attaching Vertical Door Brace

●●
●●
● 3719 Door Handle Brace (2)
●●
●●
● 10475 Right and Left Doors (2)
●●
●●
● 10497 Horizontal Door Brace (4)
●●
●●
● 6278 Vertical Door Brace (2)
● Parts Needed For ●
Door Assembly
Step 17
D30hw
30
The steps on this page tell how to
assemble the right door. You will
perform exactly the same procedures
for the left door. Each bolt and screw
in the door requires a washer. Pro-
ceed as follows:
1 Attach the door handle brace and
handle to the door with 1 bolt as
shown. Don't tighten the bolt yet.
2 Swing the door handle brace up to
the hole on the center of the door and
insert a screw.
3 Hold the vertical door brace
against the center of the inside sur-
face of the door and turn the screw to
hold the vertical door brace and door
handle brace in place. Fasten to
door above and below center
connection using 2 screws.
4 Insert a second bolt in the door
handle and tighten both bolts.
5 Put a horizontal door brace onto
the top edge and bottom edge and
fasten with 1 bolt in the center.
6 Attach the lower door guides and
bolts as shown.
7 Repeat steps 1 through 6 for the
left door.
STEP
5
4
STEP
3
10475
Right Door
66382
66382
10497
66045
3719
66382
END VIEW
SHOWING:
Horizontal
Door Brace
Door
Washer
Guide
6278
6278
(4)(6)
(12)
3719
10475
Left Door
66045
66045
3719
STEP
1
STEP
2
STEP
6
10497
STEP
10497
10497
