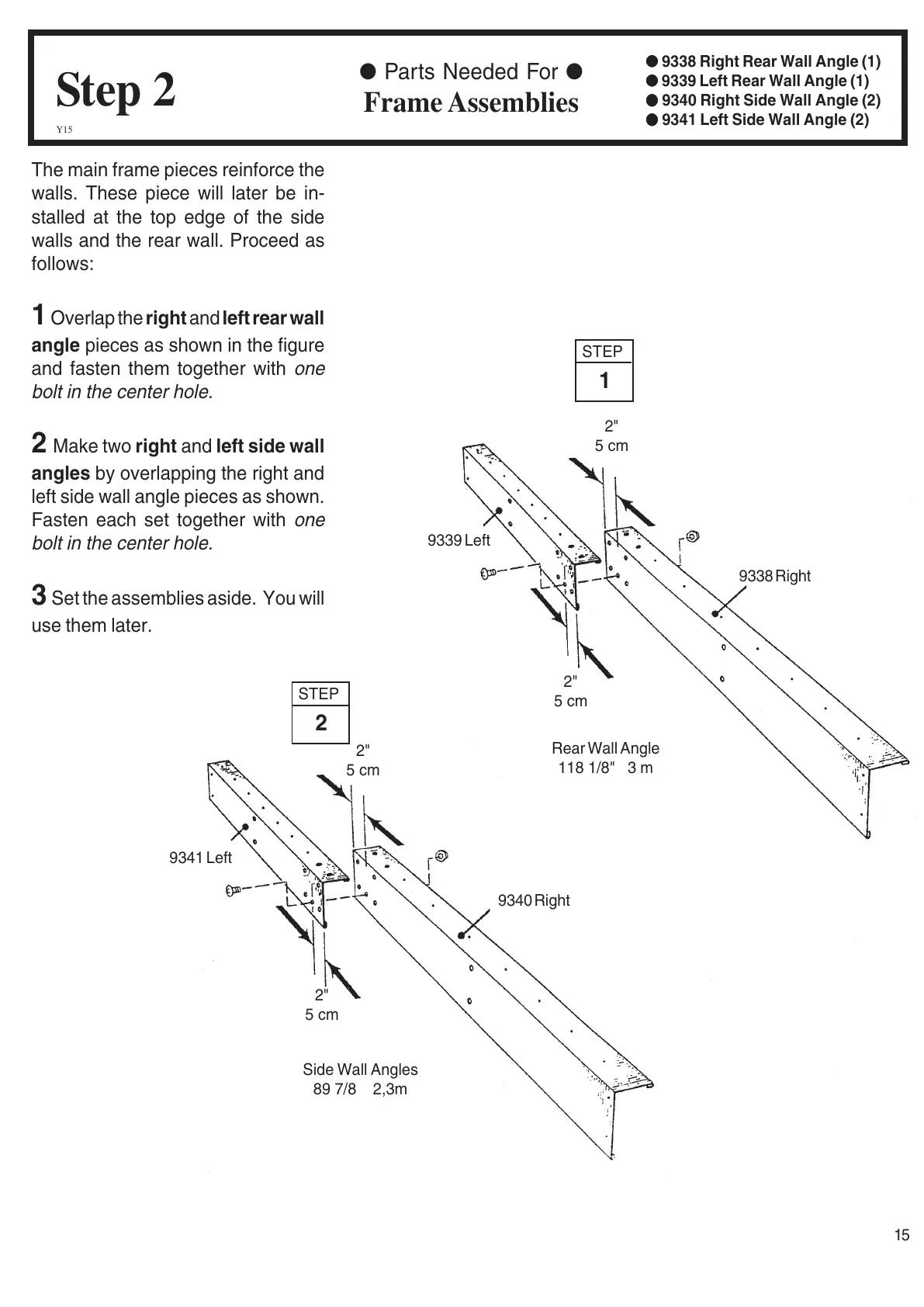

Step 2
Y15
15
● Parts Needed For ●
Frame Assemblies
The main frame pieces reinforce the
walls. These piece will later be in-
stalled at the top edge of the side
walls and the rear wall. Proceed as
follows:
1 Overlap the right and left rear wall
angle pieces as shown in the figure
and fasten them together with one
bolt in the center hole.
2 Make two right and left side wall
angles by overlapping the right and
left side wall angle pieces as shown.
Fasten each set together with one
bolt in the center hole.
3 Set the assemblies aside. You will
use them later.
●●
●●
● 9338 Right Rear Wall Angle (1)
●●
●●
● 9339 Left Rear Wall Angle (1)
●●
●●
● 9340 Right Side Wall Angle (2)
●●
●●
● 9341 Left Side Wall Angle (2)
STEP
1
9339 Left
9338 Right
Side Wall Angles
89 7/8 2,3m
2"
5 cm
Rear Wall Angle
118 1/8" 3 m
2"
5 cm
9341 Left
9340 Right
STEP
2
2"
5 cm
2"
5 cm
