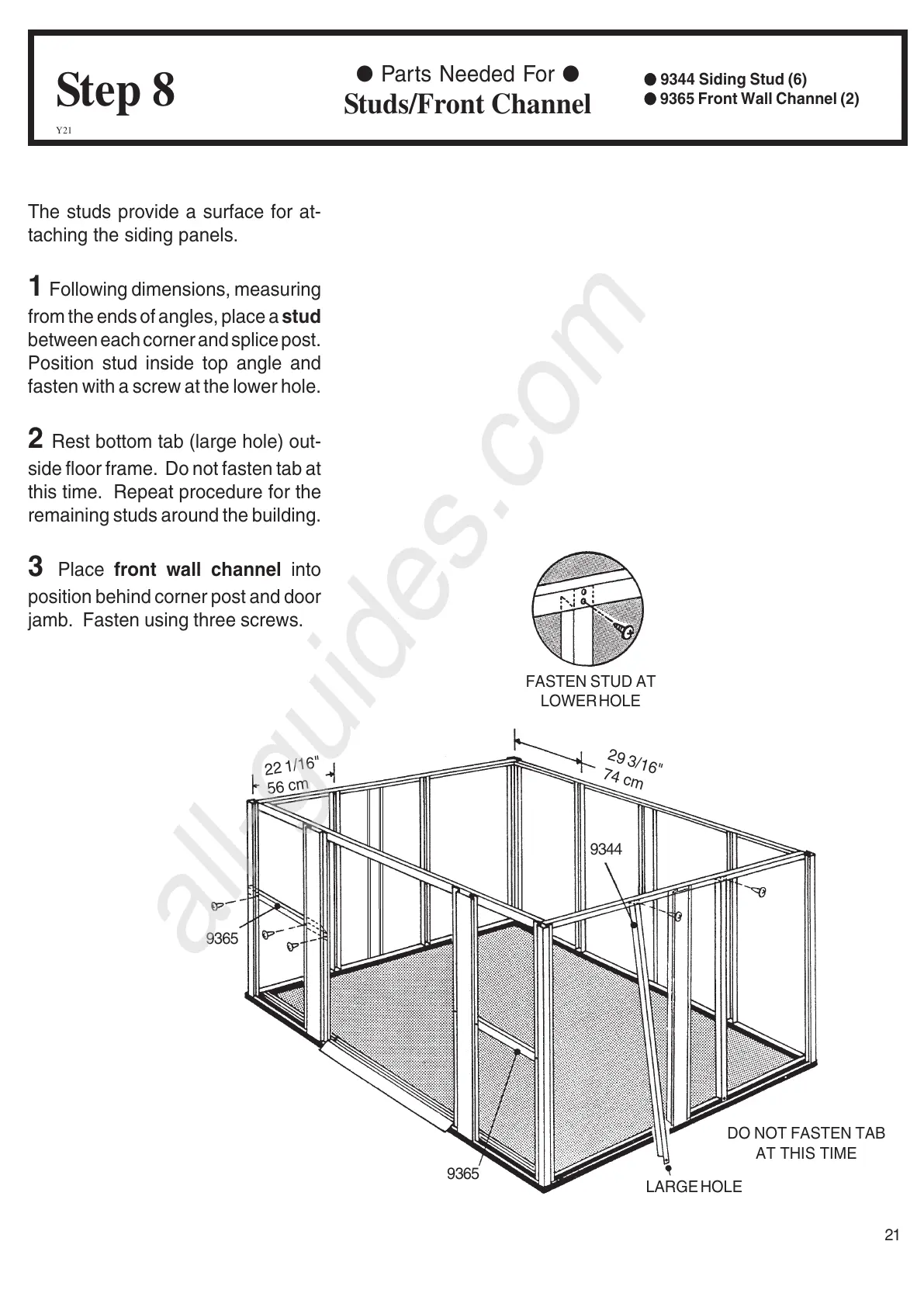

The studs provide a surface for at-
taching the siding panels.
1 Following dimensions, measuring
from the ends of angles, place a stud
between each corner and splice post.
Position stud inside top angle and
fasten with a screw at the lower hole.
2 Rest bottom tab (large hole) out-
side floor frame. Do not fasten tab at
this time. Repeat procedure for the
remaining studs around the building.
3 Place front wall channel into
position behind corner post and door
jamb. Fasten using three screws.
●●
●●
● 9344 Siding Stud (6)
●●
●●
● 9365 Front Wall Channel (2)
● Parts Needed For ●
Studs/Front Channel
Step 8
Y21
21
9344
LARGE HOLE
DO NOT FASTEN TAB
AT THIS TIME
22 1/16"
56 cm
9365
29 3/16"
74 cm
9365
FASTEN STUD AT
LOWER HOLE
