Page 26 · 6300 Series ComboSource User’s Manual
See the manual of your laser (and fixture) for additional safety and operational
information.
Power and Cable Connections

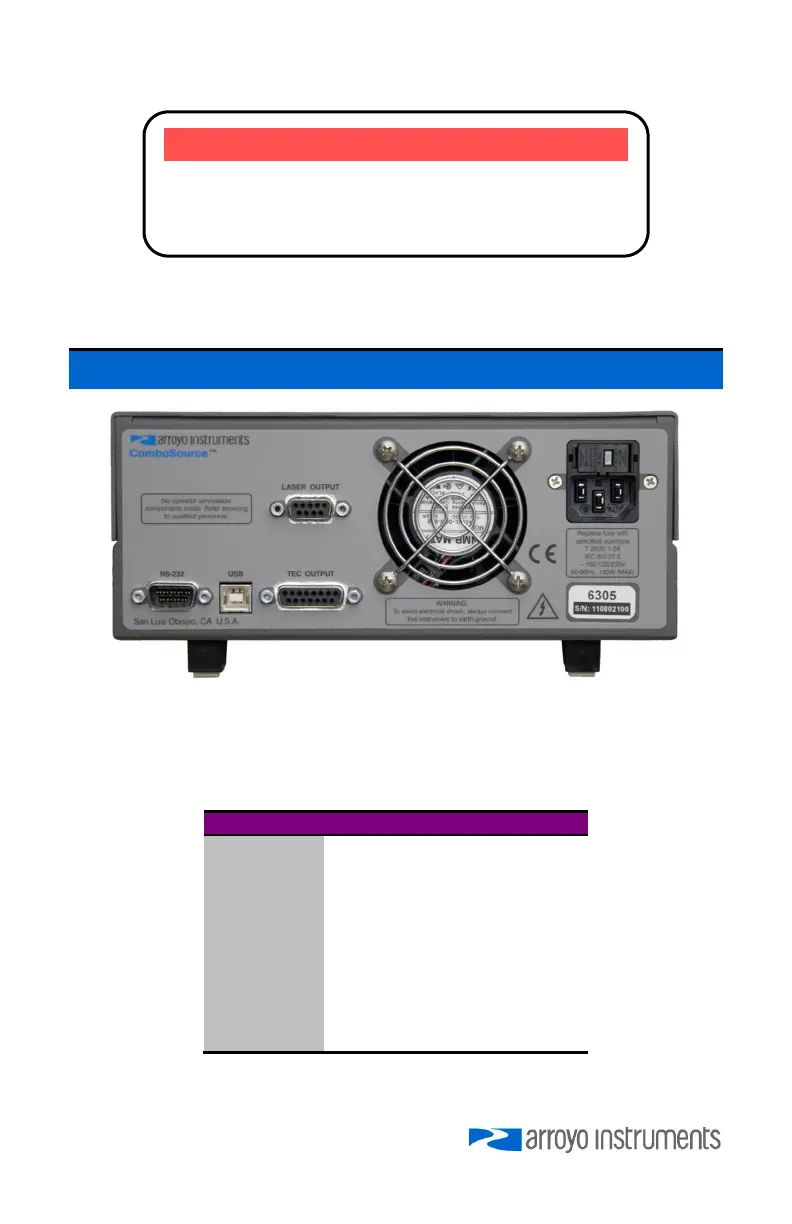

ComboSource Rear Panel
Laser Output Connector
The laser Output connector is a female DB-9, and has the following pin-out:
DB-9 Pin Description
1 Interlock+
2 Interlock –
3 Earth Ground
4 Laser Cathode Voltage Sense
5 Laser Cathode
6 Photodiode (PD) Cathode
7 Photodiode (PD) Anode
8 Laser Anode Voltage Sense
9 Laser Anode
Shell Earth Ground
LASER Output Connector (DB-9 Female)
NOTE
Connections to the ComboSource and the fixture must
be secure. Tighten any screws on the DB connectors,
and make sure all connections are in good condition.
