TECHNICAL DATA
Test Block saTECH TSB-14 | User Manual | Rev.: 2.0
15
Chapter 5. Technical Data
Technical data
Dielectric strength
IEC 60255-27
saTECH
TSB & TSB-P
IEC 60255-5
2kV between input and output contacts
2kV open contacts, test plug inserted
5 kV rms for 1 minute between all terminals
connected together and the ground terminal
2 kV rms for 1 minute between any pair of contacts,
including contacts adjacent
Step current
saTECH TSB
saTECH TSB-P
IEC 60947-7-1
All circuits 20A allow continuously or 400A for 1s
All circuits 10A allow continuously or 250A for 1s.
Maximum operating voltage
saTECH TSB & TSB-P
300 volts ac or dc continuously
IEC 60255
Environmental conditions
Temperature
Storage -25 ° C to + 70 ° C
operation –25°C a +55°C
IEC 60068-2-1 Cold
IEC 60068-2-2 Dry heat
Humidity
IEC 60068-2-78
56 days a 93% Relative Humidity and +40°C
Enclosure protection
IEC 60529-1:
TSB with front cover IP50
TSB without front cover IP20
TSB-P connected IP20
mechanical characteristics
Vibration
60255-21-1 IEC Class II
60255-21-2 IEC Class II

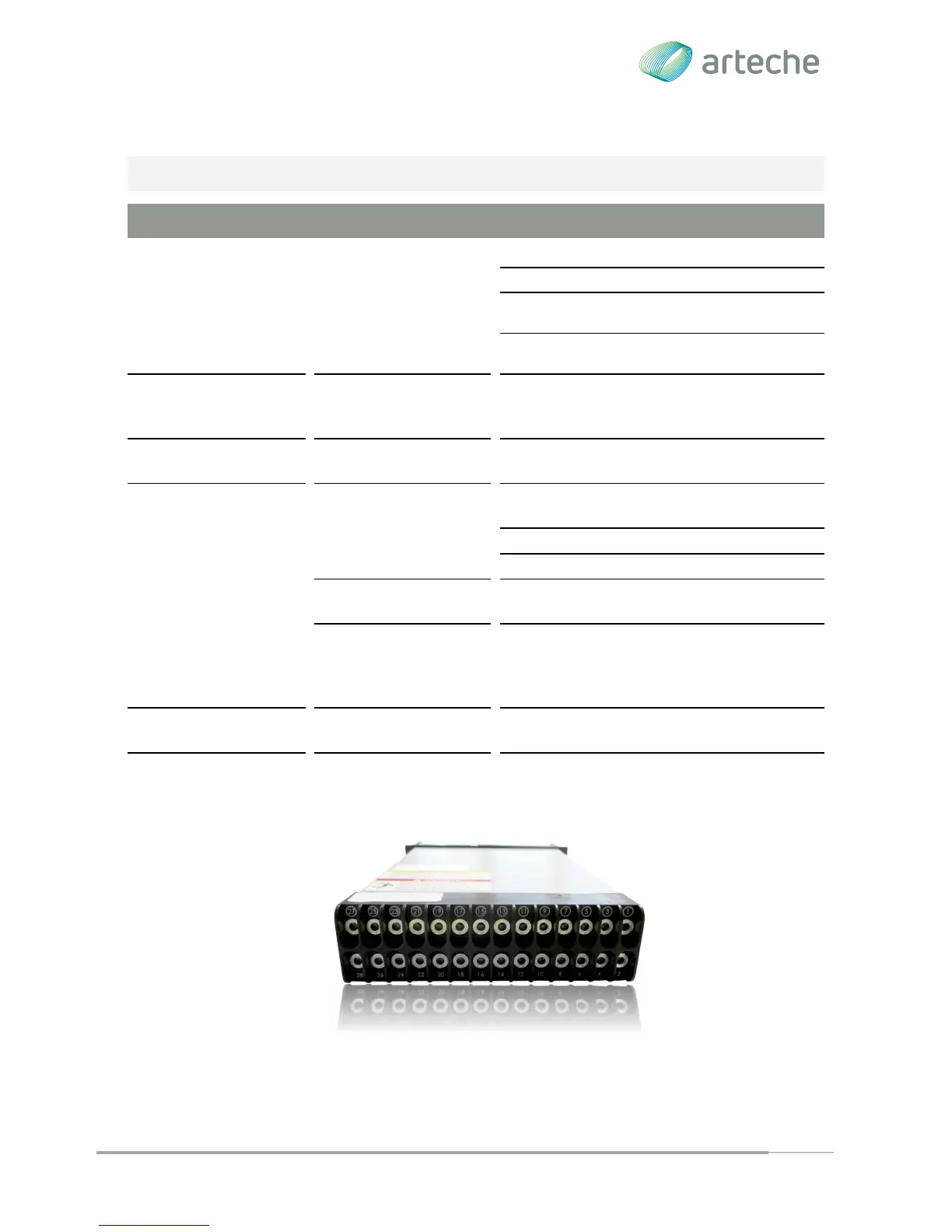

saTECH TSB-14 Rear View
