ASSEMBLY AND INSTALLATION

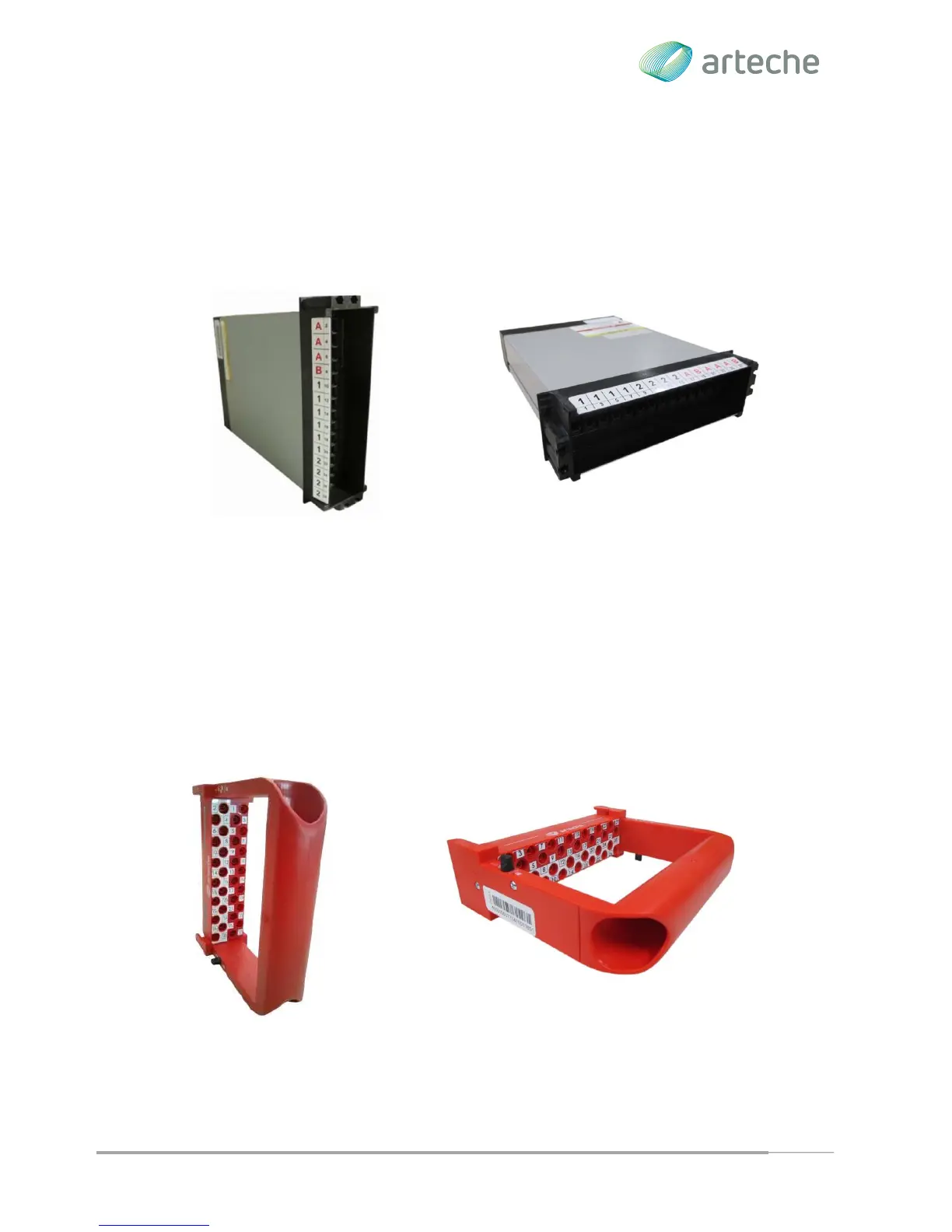

There are two options for the installation of theTest Block: horizontally and vertically. The
installation of equipment will be made according to the following indications:
For the basic TSB-14 model (not RC), In the vertical option, the field circuits must be located in
the right side and the numbers / letters disposition will be top down.
In the horizontal option, he same thing happens for each model, the field circuits must be at the
top and the equipment circuits at the bottom.
The connection of the Test Plug is conditioned by the installation of the Test Block, because it
has a poka-yoke for the correct insertion. The TSB-14 model looks like this:
