1.9 System Indicators
1.9.1 Synergy
HD3

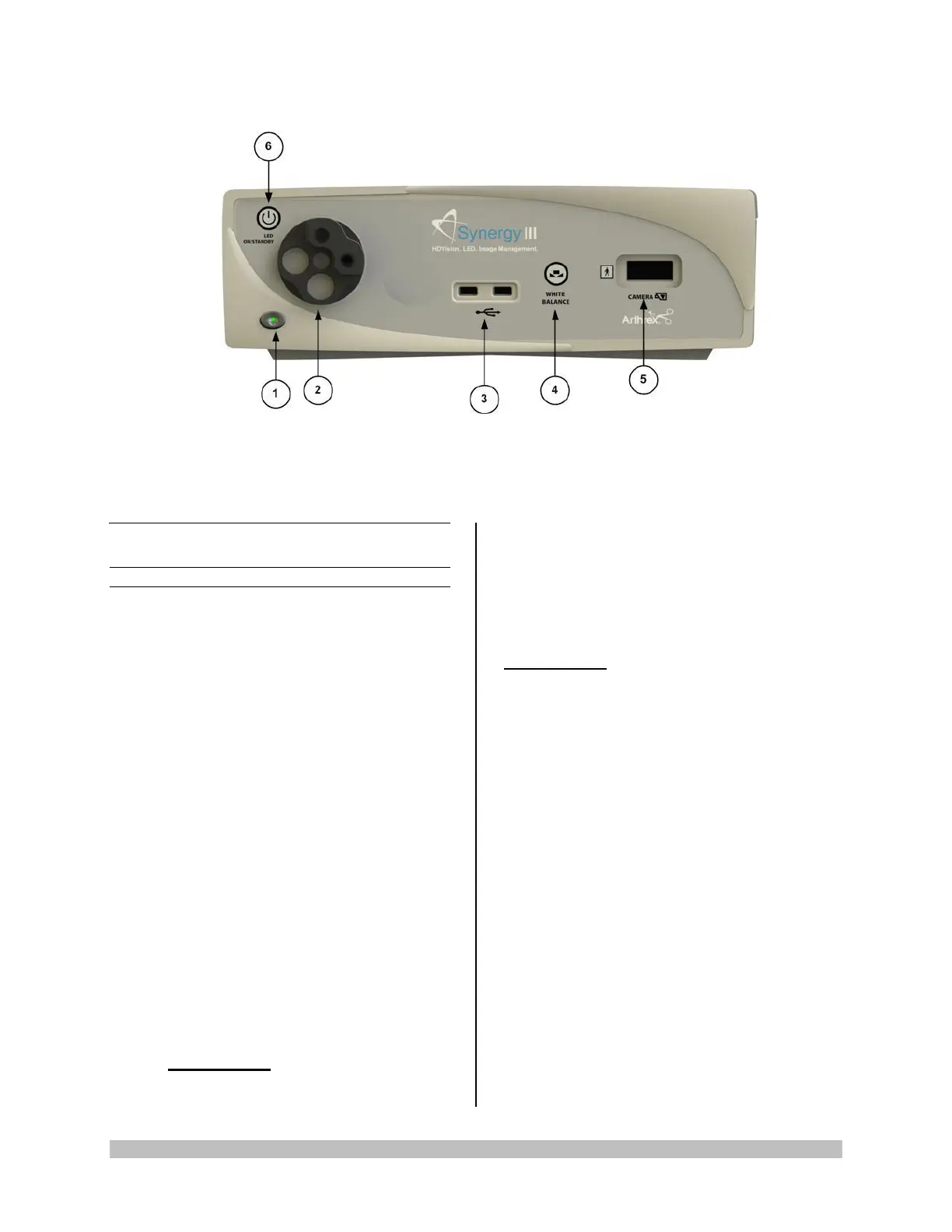

Front Panel
1. On/Standby Switch — The On/Standby
switch toggles the (CCU) between ON
[operational mode], and STANDBY. The
Green LED will illuminate when the CCU is in
the ON mode. Press and HOLD the switch to
toggle between ON and STANDBY.
2. Light Guide Turret - Turret for Light Guide
input
3. USB Ports [2x] — Connect USB devices
here.
4. “WHITE BALANCE” Button — Press to
initiate camera white balance.
5. “CAMERA” Input Connection — Insert
the camera head connector here. The
camera head connector and receptacle are
specially keyed to prevent the camera head
from being improperly connected. Ensure
that the “UP” label on the camera head
connector is facing upwards when the
camera head connector is inserted.
PRECAUTION: Ensure camera head
contacts are clean and dry and cool
15 minutes prior to insertion.
6. Light Source On/Standby Switch — The
Light Source On/Standby Switch toggles
the Light Source between ON [Operational
Mode], and STANDBY.
PRECAUTION:
1. Use Only FUSED Light Guides to ensure
proper operation of LED Engine.
2. LED Engine Cleaning Requirements.
Allow LED Engine to cool for ½ hour
before cleaning.
Dampen one end of a cotton swab with
isopropyl alcohol.
Clean any residue from optic using
circular motion.
Use the DRY END of the cotton swab to
dry the face of the optics.
Inspect the optics for residue or cotton
fibers and clean as required.
Allow to AIR DRY for 5 minutes prior to
use.
