Follow Wiring Diagram
The wiring diagram in Figure 9 applies to Analyzer Models AI-ANA-1050-AN, AI-ANA-1050-CN, AI-ANA-1550-AN,
AI-ANA-1550-CN.
Refer to Figure 8 for a detailed back view of the appliance as you connect the cables in the wiring diagram.

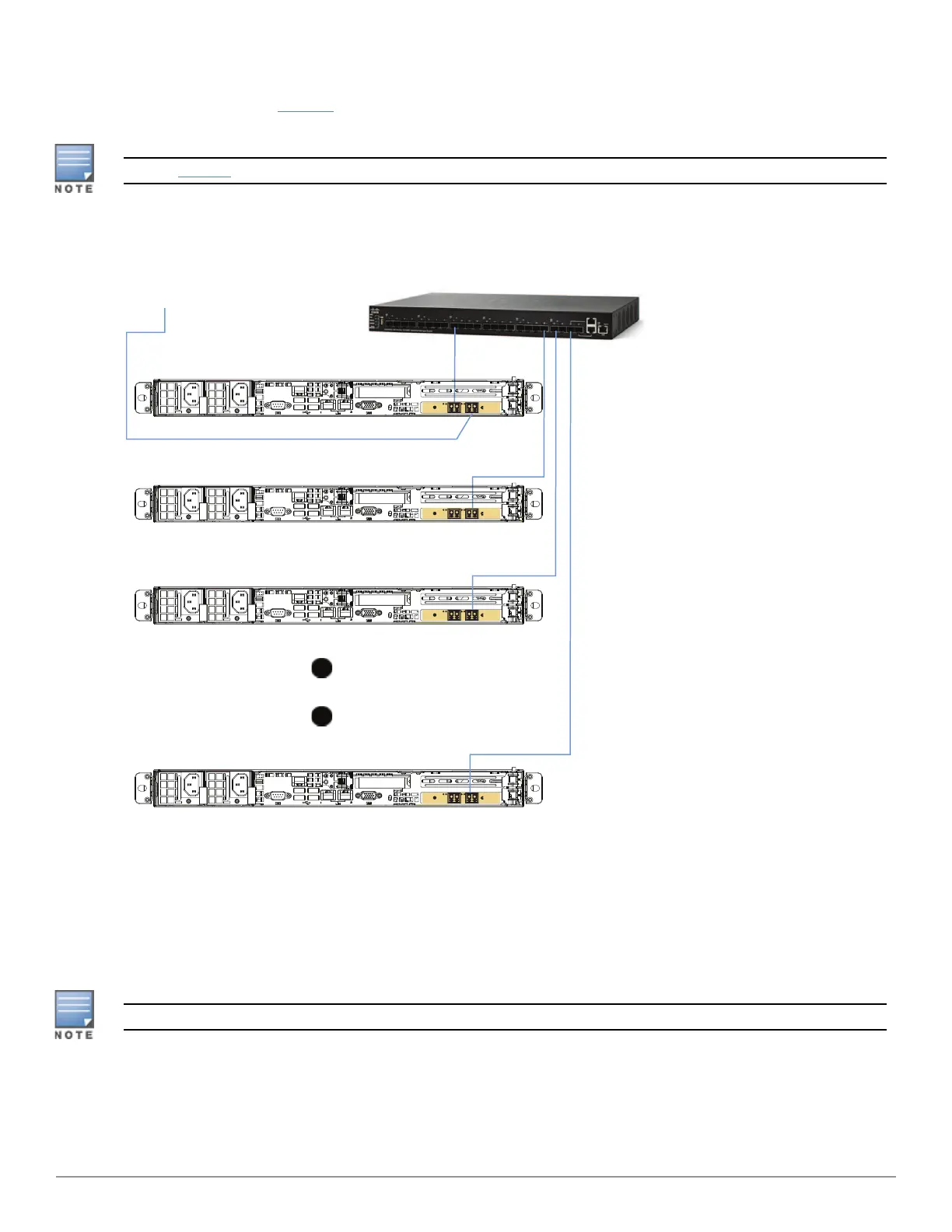

Figure 9 Wiring Diagram for Analyzer Models AI-ANA-1050-AN, AI-ANA-1050-CN, AI-ANA-1550-AN, AI-ANA-
1550-CN with Fiber Management Port
Compute Node N
Compute Node 2
Compute Node 1
AN Node
ETH1 ETH0
ETH1
ETH0
ETH1 ETH0
ETH1 ETH0
Customer-supplied 10G Fiber Switch
To
Corporate
Network
Configure the Analyzer Cluster
1. Connect a laptop to a free port on the 10G fiber switch.
2. Open a browser instance and connect to: https://192.168.1.254:8443.
3. Complete the IntroSpect setup wizard.
For detailed setup instructions, see the IntroSpect Appliance Setup Guides.
IntroSpect Analyzer 1XXX Series | Quick Start Guide 7
