Aruba AP-270-MNT-V1 User Manual

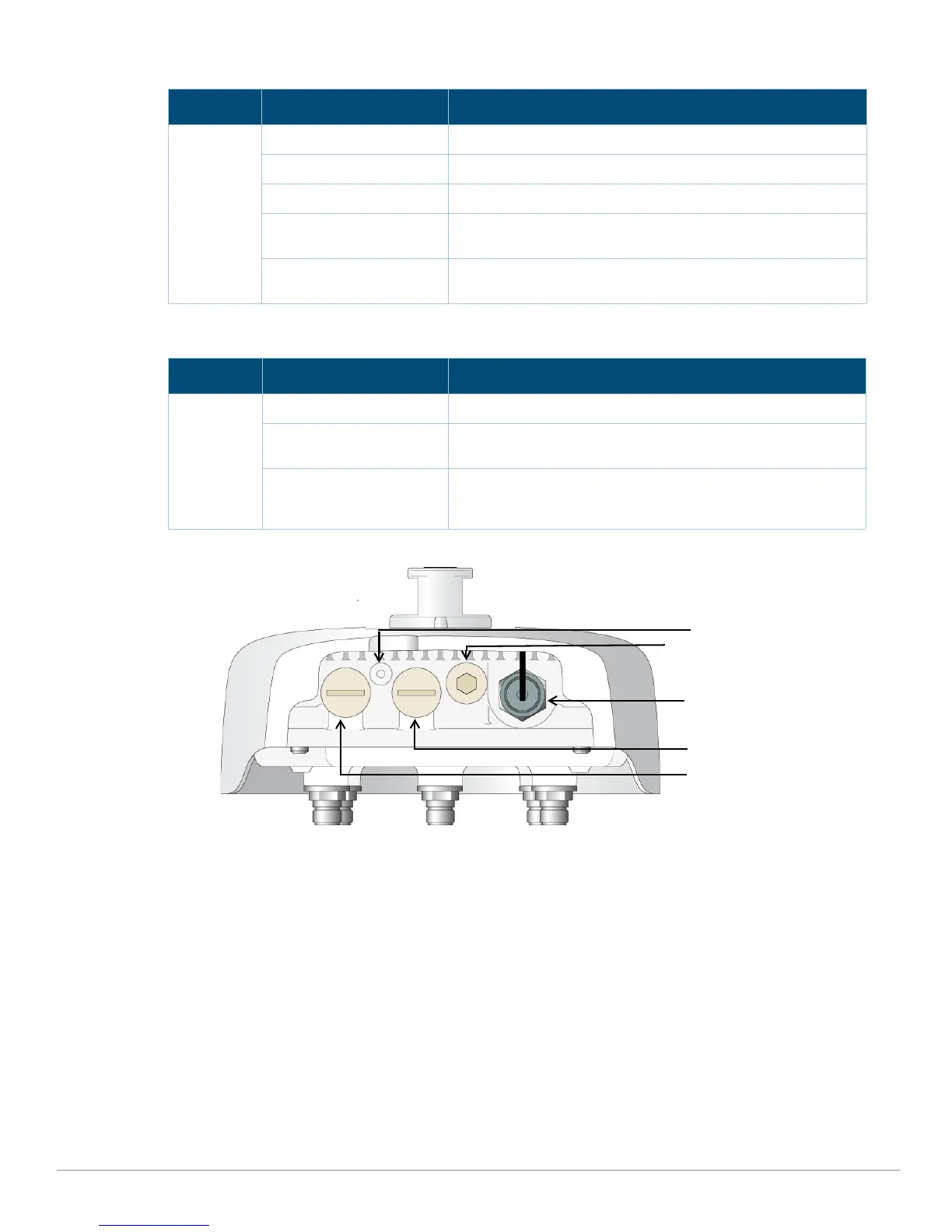

Aruba AP-270 Series Outdoor Access Points | Installation Guide 3
Table 1 AP-270 Series LED Meanings during Boot Up
Table 2 AP-270 Series LED Meanings during Operation
Figure 3 AP-274 Rear View
LED Color/State Meaning
System LED Off No power to AP
Red Initial power-up
Green - Flashing AP booting
Green - Steady AP ready and 1000Mbps Ethernet link established. The LED
turns off after 1200 seconds
Green - Yellow, 6 seconds
period
AP ready and 10/100Mbps Ethernet link established. The LED
turns off after 1200 seconds
LED Color/State Meaning
System LED Solid Red General fault
One blink off every 3
seconds
Radio 0 fault (5 GHz)
Two quick blink off 0.5
seconds apart cycled every
3 seconds
Radio 1 fault (2.4GHz)
AC Power Interface
LAN Port
WAN Port
Grounding Point
USB Console Portand Reset button

Aruba AP-270-MNT-V1 Specifications

General

Brand	Aruba
Model	AP-270-MNT-V1
Category	Wireless Access Point
Language	English
