4 Aruba AP-270 Series Outdoor Access Points | Installation Guide

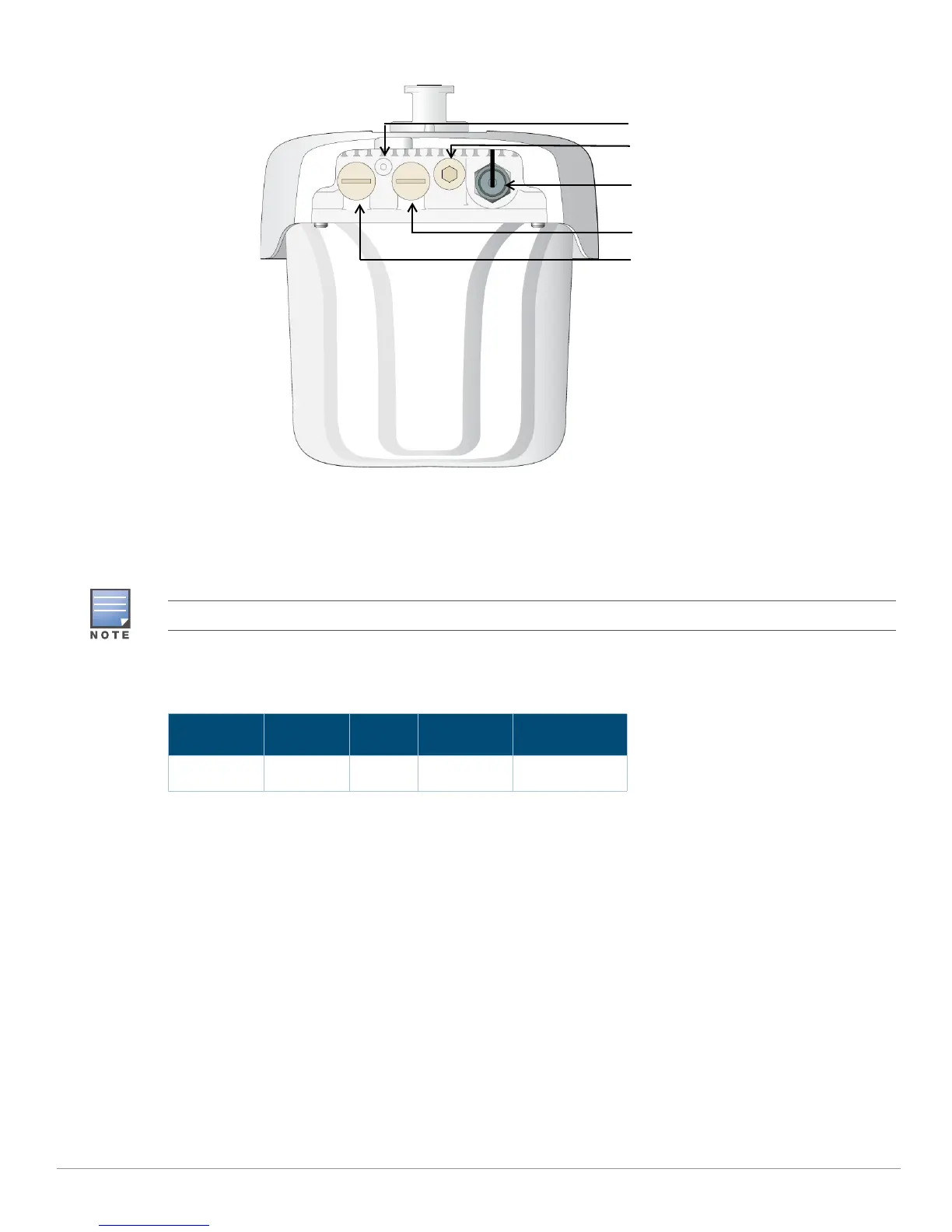

Figure 4 AP-275 Rear View
USB Console Port
The USB Micro-B console port allows you to connect the AP to a terminal or a laptop for direct local
management. Use the included USB console cable to connect the AP. You can download the necessary driver for
USB-UART adapter from
support.arubanetworks.com under the Tools & Resources tab.
Use the following setting to access the terminal:
Ethernet Ports
AP-270 Series is equipped with two10/100/1000Base-T (RJ-45) Gigabit Ethernet ports (WAN and LAN port) for
wired network connectivity. The WAN port supports 802.3at Power over Ethernet (PoE), accepting 48 VDC
(nominal) as a standard defined Powered Device (PD) from a Power Sourcing Equipment (PSE) such as a PoE
midspan injector.
These ports have RJ-45 female connectors with the pin-outs shown in Figure 5.
AC Power Interface
LAN Port
WAN Port
Grounding Point
USB Console Portand Reset button
You need a proper Allen wrench (8mm) to open the cover of the USB Console port.
Table 3 Console Settings
Baud Rate Data Bits Parity Stop Bits Flow Control
9600 8 None 1 None
