Hardware Overview

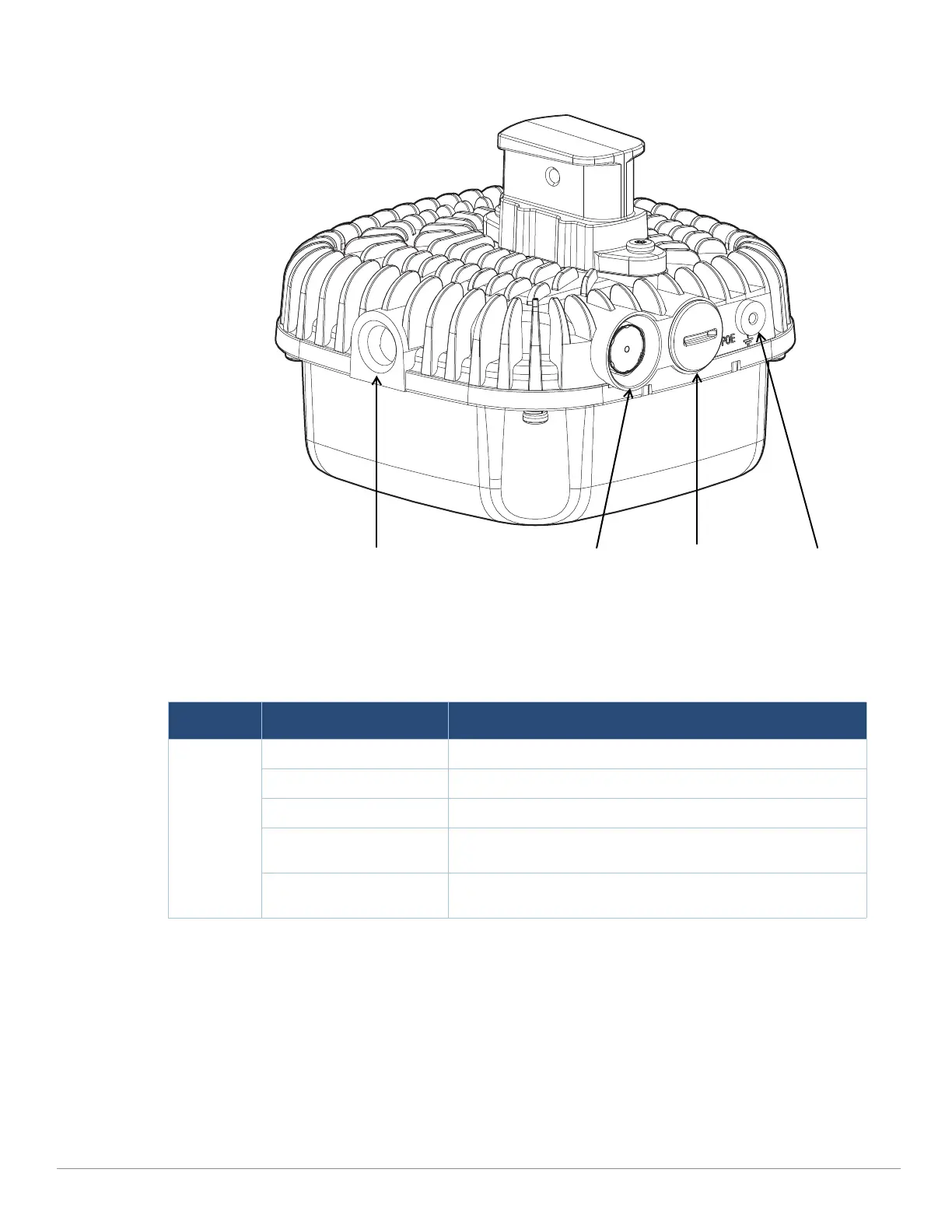

Figure 1 560 Series Access Point
LED
The 560 Series access point is equipped with one LED that indicates the system status of the access point.
Table 1 560 Series LED Meanings during Boot Up
LED Color/State Meaning
System LED Off No power to AP
Red Initial power-up
Green - Flashing AP booting, not ready
Green - Steady AP ready and Gigabit Ethernet connected. The LED turns off
after 1200 seconds
Green - Yellow, 6 seconds
period
AP ready and 10/100Mbps Ethernet link established. The LED
turns off after 1200 seconds
USB Console Port, Reset
button and LED
Grounding PointEthernet PortAir Vent

Aruba AP-567 Specifications

General

2.4 GHz	Yes
MIMO type	Multi User MIMO
Modulation	16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
Bluetooth version	5.0
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt
Spread spectrum method	DSSS, OFDM, OFDMA
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1774 Mbit/s
Maximum data transfer rate (5 GHz)	1200 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
USB connector type	USB Type-C
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna type	Internal
Antenna features	Integrated antenna
Antenna direction type	Directional
Antenna gain level (max)	7 dBi
Placement	Pole, Wall
Product color	White
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-40 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Security algorithms	WPA2, WPA3

Weight and Dimensions

Width	165 mm
Height	110 mm
Weight	1090 g
