Aruba Instant On AP22 User Manual

Aruba Instant On AP22 Access Point | Installation Guide 5
The following sections provide instructions on how to use this mount bracket.
Installing the Access Point to a Ceiling Tile Rail
1. Pull the necessary cables through a prepared hole in the ceiling tile near where the access point will be
placed.
2. Place the mount bracket against the back of the access point with the mount bracket at an angle of
approximately 30 degrees to the tabs (see Figure 4).
3. Twist the mount bracket clockwise until it snaps into place in the tabs (see Figure 4).

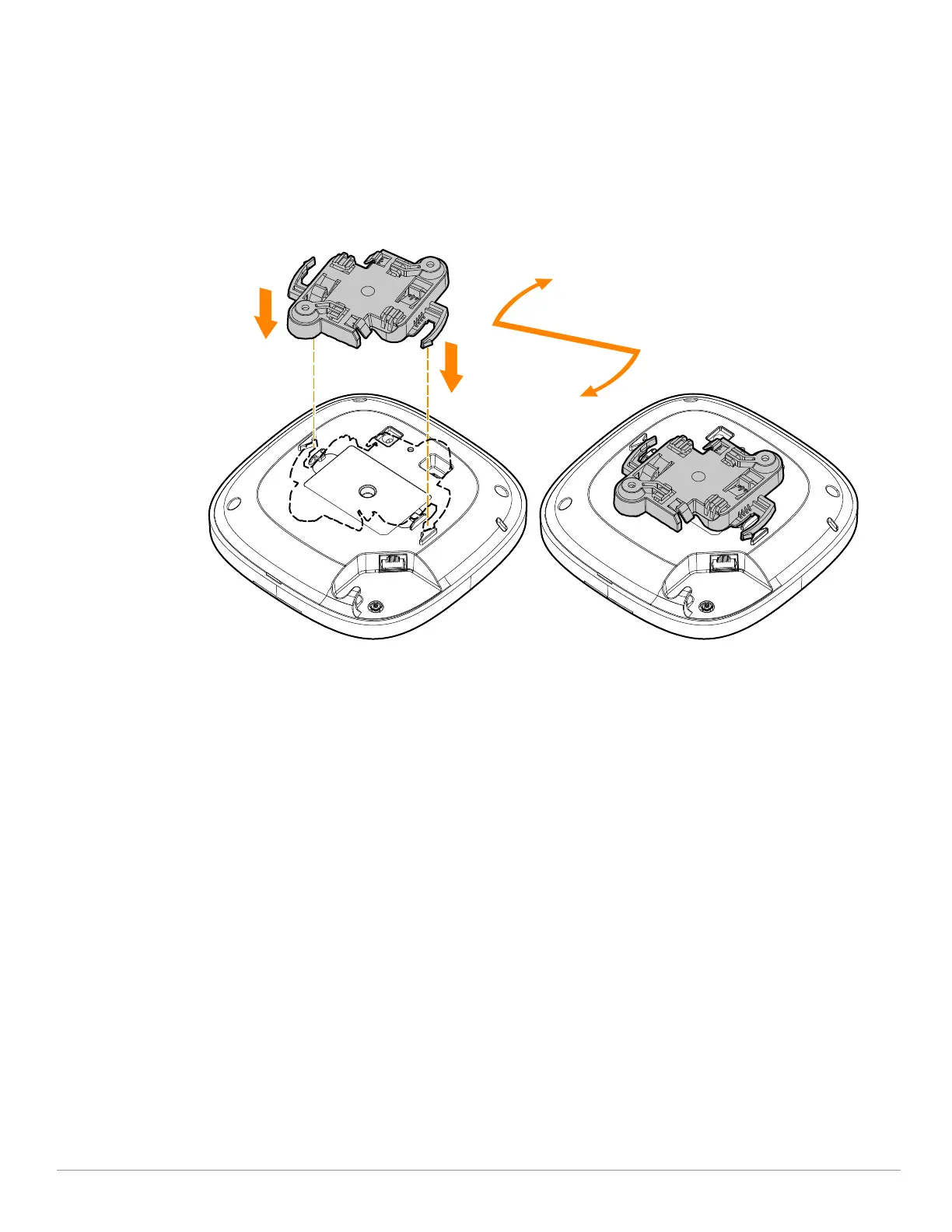

Figure 4 Attaching the Mount Bracket to the AP
4. Hold the access point next to the ceiling tile rail with the mounting slots at approximately a 30-degree angle
to the ceiling tile rail (see Figure 5 and Figure 6). Make sure that any cable slack is above the ceiling tile.
5. Pushing toward the ceiling tile, rotate the access point clockwise until the device clicks into place on the
ceiling tile rail.

Aruba Instant On AP22 Specifications

General

Wi-Fi Standard	Wi-Fi 6 (802.11ax)
Frequency Bands	2.4 GHz, 5 GHz
Ports	1x Gigabit Ethernet (RJ-45)
Operating Temperature	0°C to 40°C
Power over Ethernet (PoE)	802.3af
Dimensions	160 mm x 160 mm x 37 mm
Weight	500 g
Mounting	Wall or ceiling
Maximum Data Rate	1774 Mbps
