Aruba Instant On AP22 User Manual

6 Aruba Instant On AP22 Access Point | Installation Guide

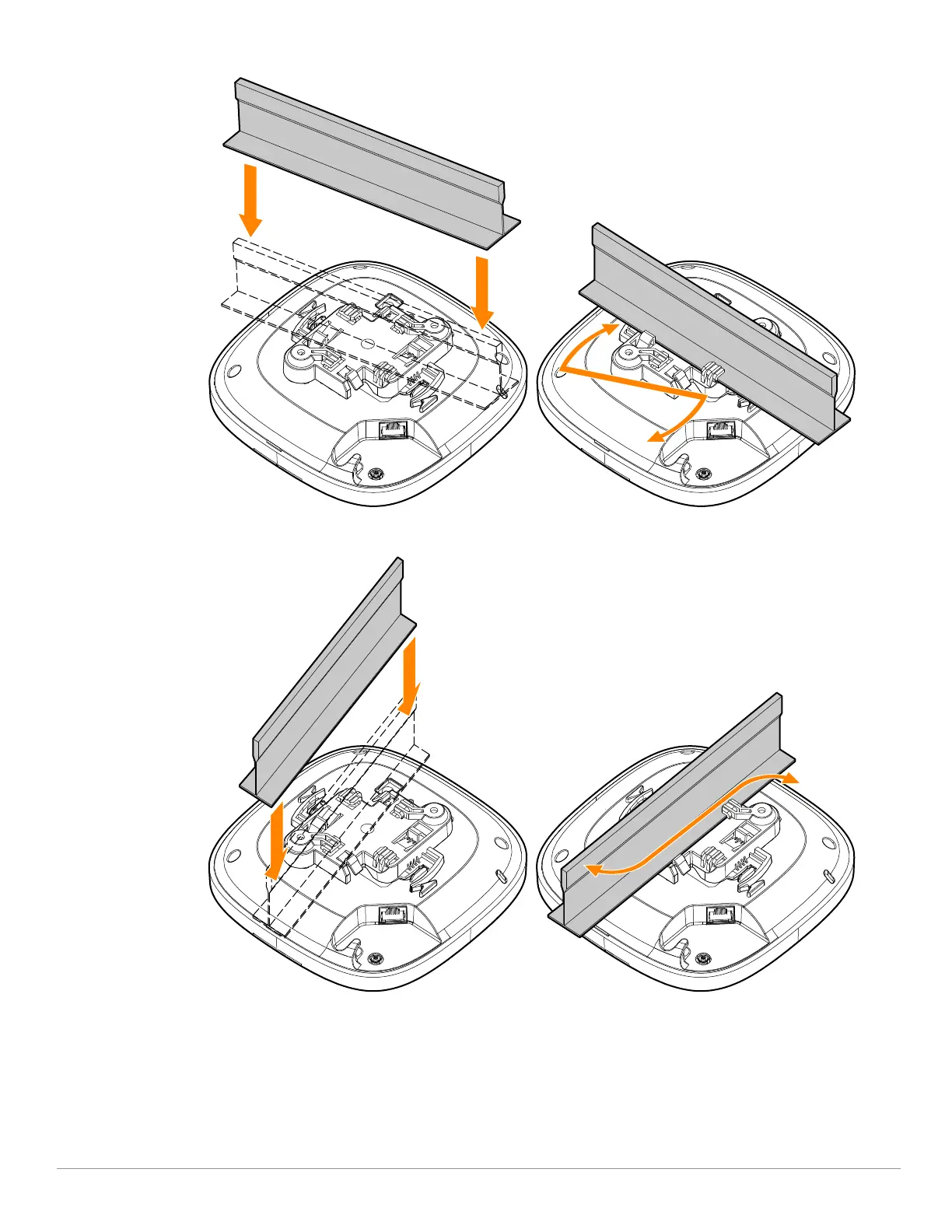

Figure 5 Mounting the AP to a 15/16” Ceiling Rail
Figure 6 Mounting the AP to a 9/16” Ceiling Rail
Installing the Access Point to a Solid Surface
1. Attach the mount bracket to any solid surface, such as a wall or hard ceiling, as shown in Figure 7.
a. Install any necessary wall anchors. Wall anchors are not included in the package.
b. Align the screw holes in the mount bracket with the previously installed anchors or demarcated screw
points.

Aruba Instant On AP22 Specifications

General

Wi-Fi Standard	Wi-Fi 6 (802.11ax)
Frequency Bands	2.4 GHz, 5 GHz
Ports	1x Gigabit Ethernet (RJ-45)
Operating Temperature	0°C to 40°C
Power over Ethernet (PoE)	802.3af
Dimensions	160 mm x 160 mm x 37 mm
Weight	500 g
Mounting	Wall or ceiling
Maximum Data Rate	1774 Mbps
