For your device, a retrofit service and parking
brake are available. It is actuated by pulling the
hand lever located at the handlebar and acts
on the rear wheels.
At your request, your dealer will be happy to
install the brake.
The device is delivered in a carton.
The scope of delivery includes:
– The device.
– These operating instructions.
– Warranty card.
– Protection bow.
– Protection skirt.
– Front wheel.
– Side panel.
– Tool bag with small items.
1. Remove the loose parts from the box
(protection bow, protection skirt, side panel,
front wheel, and cardboard inserts).
2. Cut open the front side of the box.

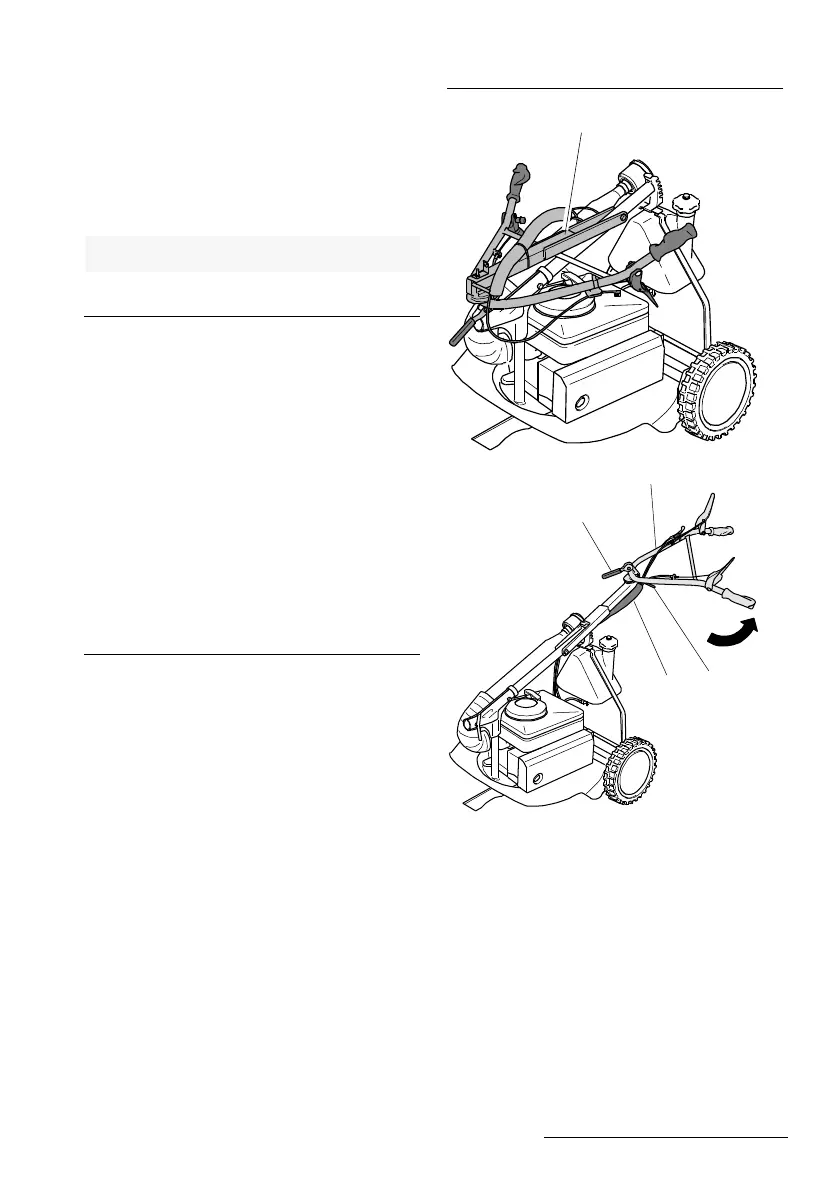

3. Bring the handlebar up (see guide bar and
handlebar).
1. Swing the guide bar (1) back.
2. Slacken the hexagon nut at the eccentric
lever (2).
3. Attention: Do not crush the Bowden ca-
bles (3) when pivoting the handlebar.
Swivel the handlebar (4) in an anti-
clockwise direction backwards and clamp it
down with the eccentric lever (2).
4. Turn in the hexagon nut until the eccentric
lever (2) can be tensioned with normal
force and is parallel to the guide bar.
5. Adjust the guide bar by pulling the tied
rod (5) to the desired height. Make sure
