that the Bowden cables are laid without any
tension.
6. Push the device out of the box on its rear
wheels.

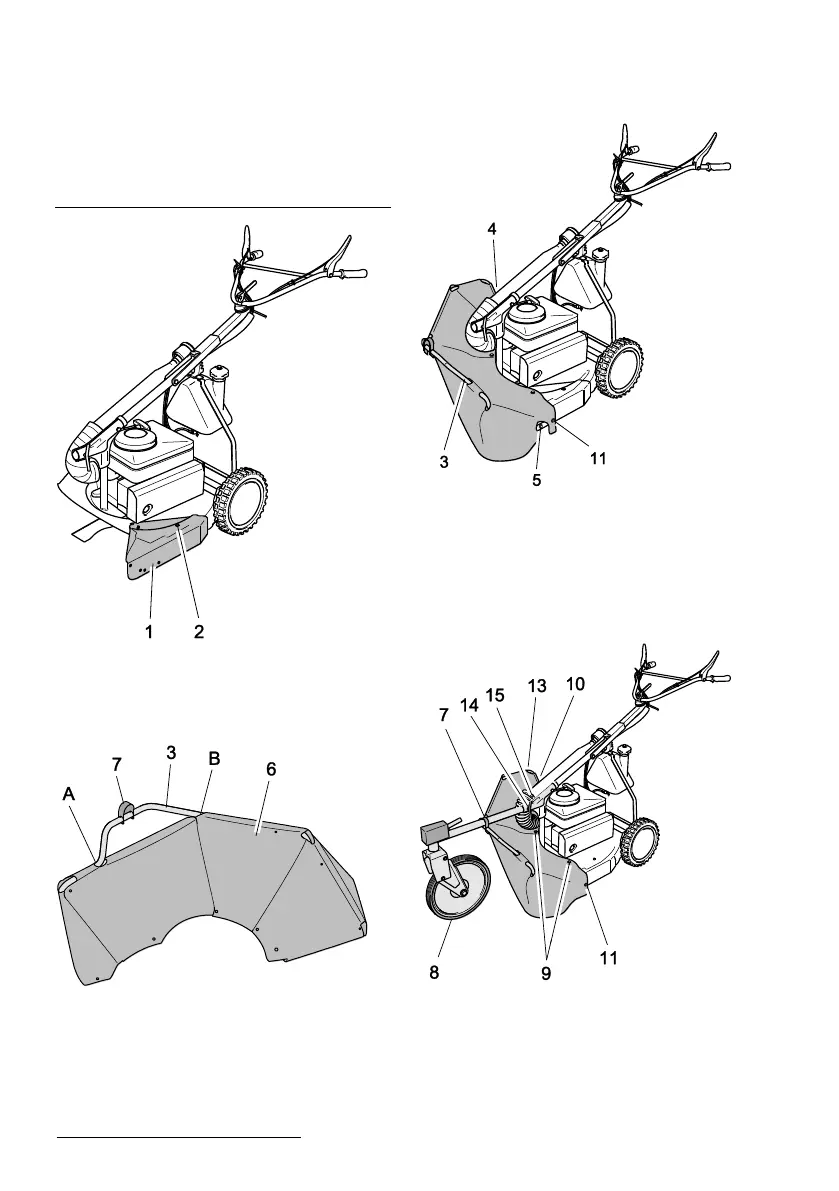

Protection skirt and steerable front
wheel
1. Apply the side panel (1) on the left front
blade hood side to the welding screws.
2. Fasten the side panel onto the rear
screw (2) with a nut M6 and a washer.
3. Push the protection bow (3) from below
through the opening (B) in the protection
skirt (6).
4. Push the bow holding device (7) onto the
protection bow (3).
5. Push the protection bow (3) downward
through the opening (A) in the protection
skirt.
6. Apply the protection bow (3) on the right
blade hood side to the screw M8 (4).
7. Screw in the protection bow at the front
hole (5) of the side panel with a screw M6,
washer and nut. Make sure that the rear
hole of the protection bow coincides with
the rear hole of the side panel (11).
8. Turn the bow holding device (7) up to the
centre.
9. Push the steerable front wheel (8) with the
tube end through the bow holding de-
vice (7) and insert it into the guide bar (15).
