Switch Value Output of TFmini Plus v1.0
A10,Keshi Building, No.28, Xinxi Rd, Haidian district, Beijing, China. 100084 Page4

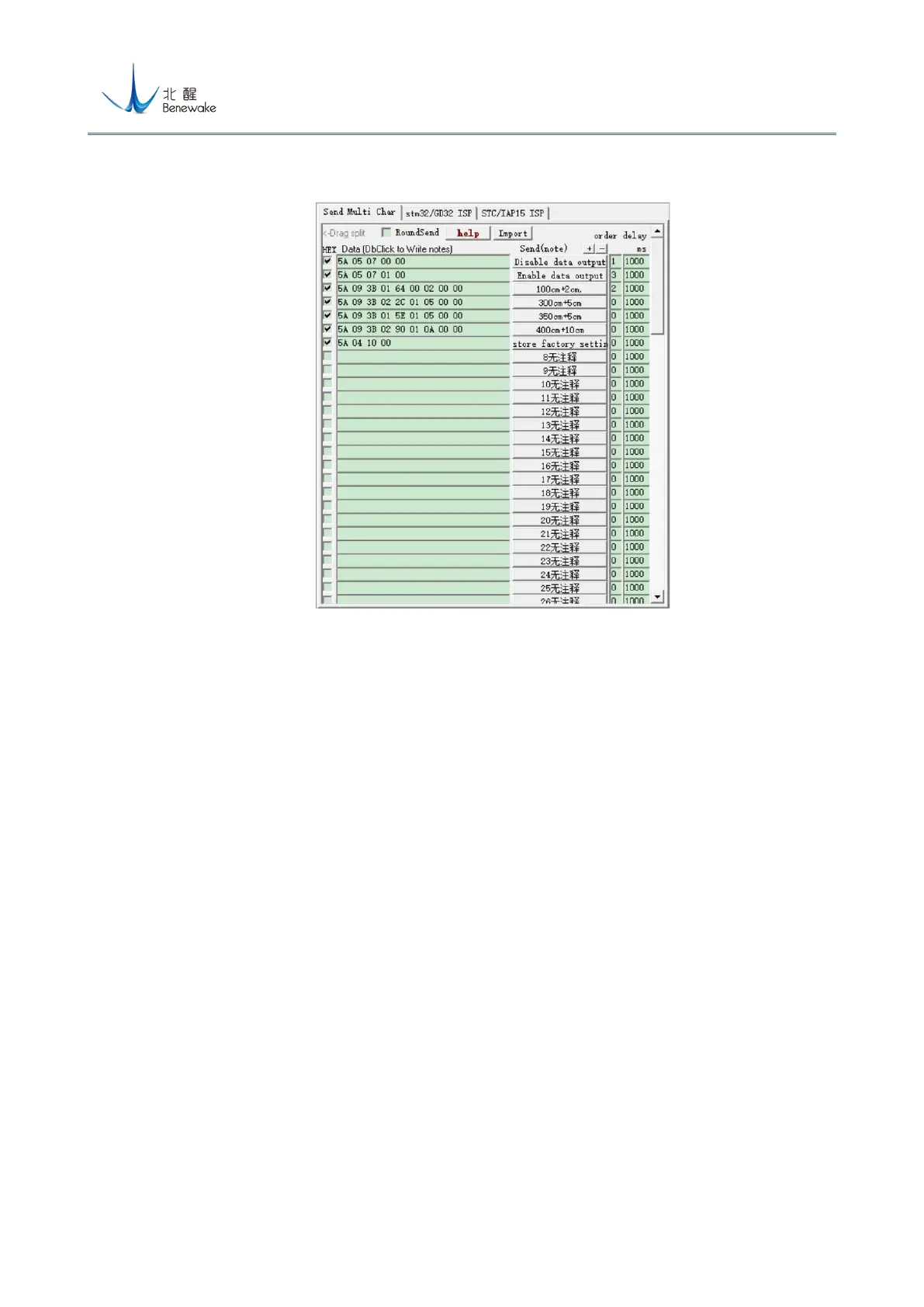

When you need to send a command, click the button on the right side of it, as shown below:
Fig.5 send commands
4.3 Commands Configuration and Description
1. 【Disable data output】Turn off the input and output enable of TFmini-Plus, stop the
measurement program to prevent program conflicts when modifying the configuration.
- Command: 5A 05 07 00
2. 【Setting output mode of switch value】
- Switch value mode, critical value and hysteresis range should be set for switch
value.
- Switch value mode：When it is below the threshold, the output level is high/low,
and when it is above the threshold, the output level is low/high.
- Critical value: the threshold for switching between high and low levels
- Hysteretic range: Assuming that the critical value is 100 cm and the hysteretic
range is 2 cm, it means that the output state does not change within 100-102 cm:
① the original state is close-distance, and when the measurement distance ＞
