Partial cutaway view showing
positioning of rider ring, core
guide, and core spring on
core assembly.
rider ring
core assembly
core guide
core spring
manual operator
(Suffi x MS)
solenoid base
sub-assembly
Part Name
solenoid base
sub-assembly
core assembly
with core spring
solenoid base
gasket
retainer ring
valve body
With Manual Operator
External Spring Construction
solenoid base
sub-assembly
Torque Chart
Torque value
Inch-Pounds
175 ± 25
Torque value
Newton-Meters
Suffi x “P”
19,8 ± 2,8
solenoid base
sub-assembly
core assembly
with core spring
and rider ring
core guide
solenoid base
gasket
valve body
Indicates Parts Supplied in
ASCO Rebuild Kits.
core spring core spring
(see Note) (see Note)
core assembly
core assembly
(AC Construction) (DC Construction)
solenoid base gasket
valve body
Note:
Wide end of core spring in core fi rst,
closed end protrudes from top of core.
Internal Spring Construction

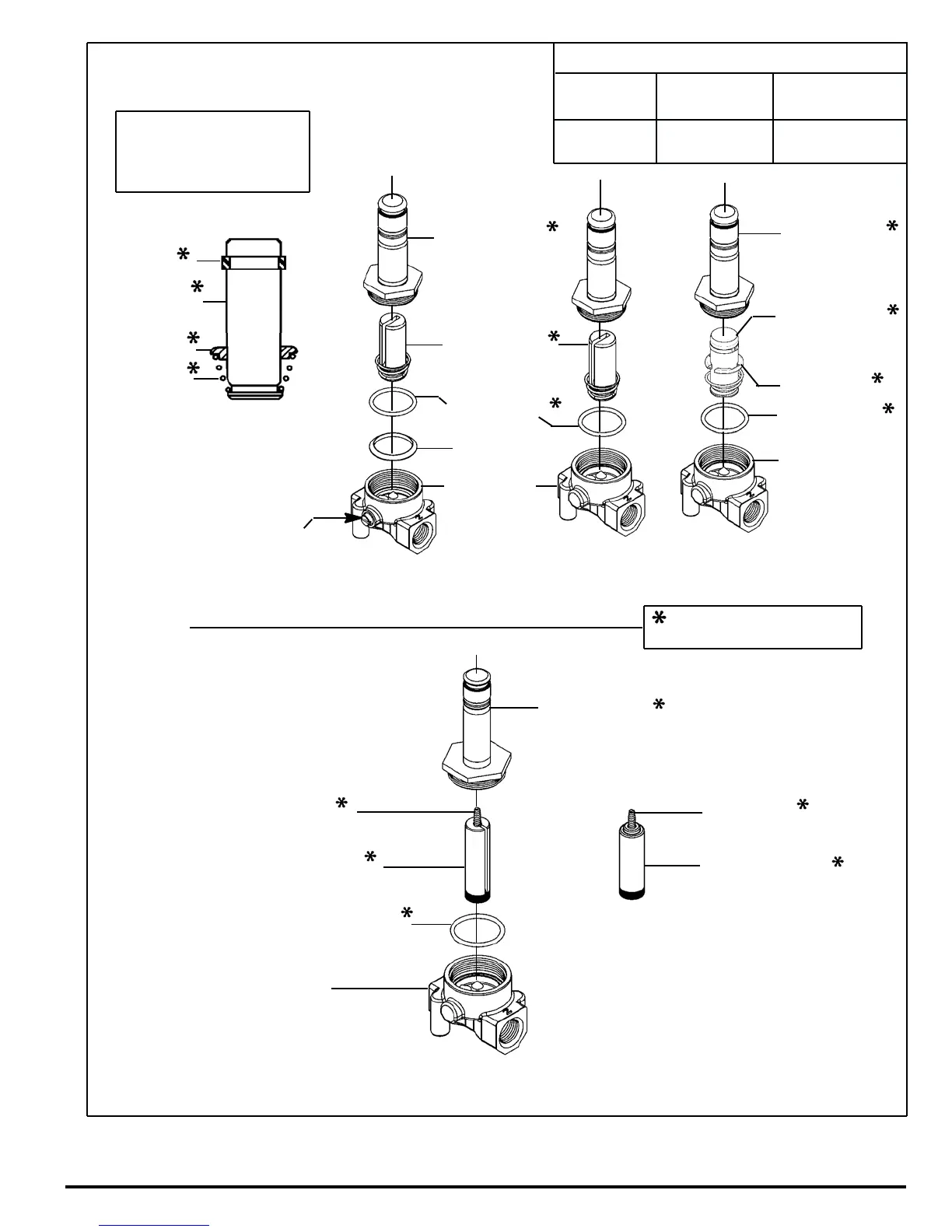

Figure 2. Normally Closed Construction
©ASCO Valve, Inc. 50 Hanover Road, Florham Park, New Jersey 07932 www.ascovalve.com
I&M No. V 9575 R5 - Sec. 1
Page 3 of 5 (Section 1 of 2)
