Installation Manual
NU-Series Hardware
Room Modules
3 of 3 P/N PM000156A • Rev. 1.00 • ISS 5/8/17
2.

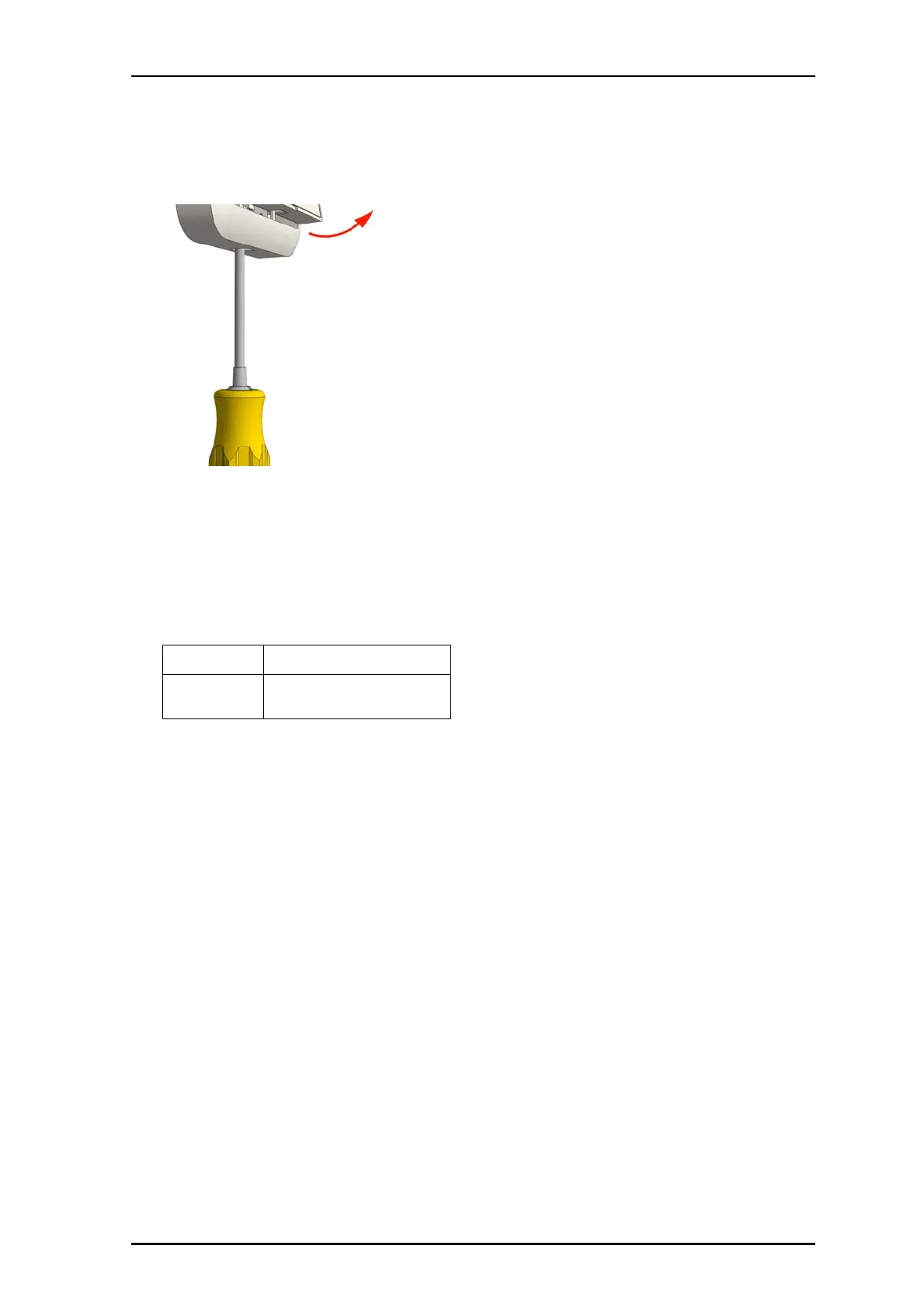

Gently push the 6mm flat blade screwdriver until
the module releases from the adapter.
Caution: Do not insert the screwdriver into the bottom
corner of the frame, as this may damage the frame or
module.
3. Remove the module from the adapter.
4. Disconnect the RJ-45 connectors.
Specifications
Wire/terminations
Cat 5/5e/6/7 U/UTP with RJ-45
connectors.
Compatible
electrical boxes
European Union, United Kingdom:
Standard plastic or metal back box
with mounting holes: 60mm (2.36”),
