OPERATION
Please refer to following steps to charge the battery,
Insert the AC power cord into the charger.
Insert the AC cord into a wall socket (100-240V). All LEDS will light for 1 second and the
battery type LED will flash green and red which indicates the charger is ready to charge.

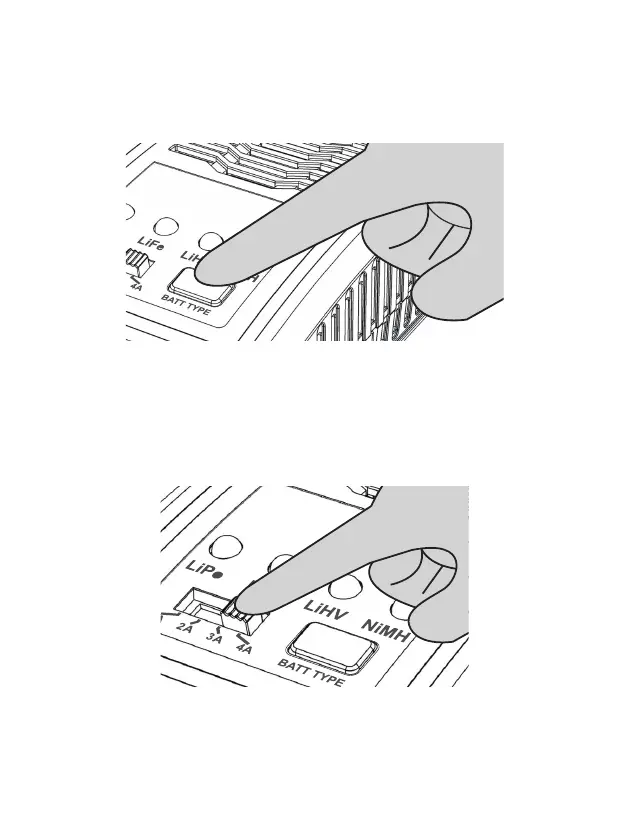

Select the battery type LiPo/LiFe/LiHV/NiMH by press “BATT TYPE” button.
Select the proper charging current 1A/2A/3A/4A by the slide switch.
The charge current varies from 1A(1000mA) to 4A(4000mA). The recommended charge rate is
1C (battery capacity = charge current). 1C means: capacity value = charge current.
Example: LiPo cell of 2200mAh Capacity; 1C=2200mA (=2.2A) charge current. You can choose
2A current to charge the battery. LiPo cell of 2800mAh Capacity; 1C=2800mA (=2.8A) charge
current. You can choose 3A current to charge the battery.
