Battery Voltage Meter
The user can check battery’s total voltage, the highest voltage, the lowest voltage and each
cell’s voltage.
Please connect the battery to the charger main battery lead to battery socket and balance
wires to balance socket.

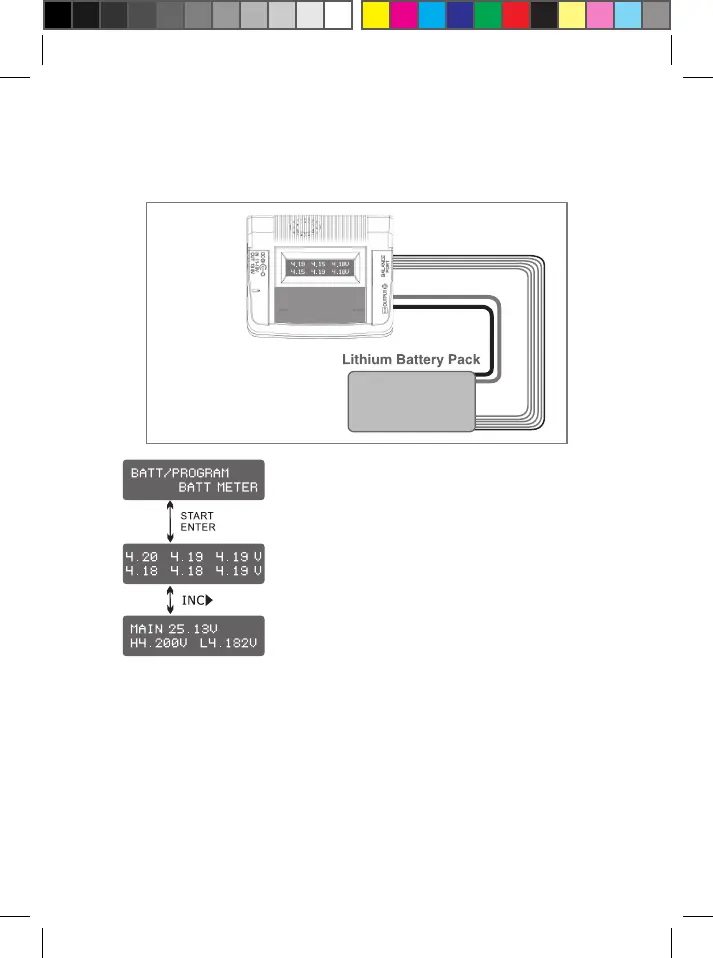

This diagram shows the
correct way to connect your
battery to check the voltage.
The Screen Indicate each cells voltage.
Press the START/ENTER to enter the Lithium Battery
Meter program.
The Screen indicates the total voltage, the high-
est voltage and lowest voltage.
