Ashford RIGID HEDDLE TABLE STAND - Page 4

4

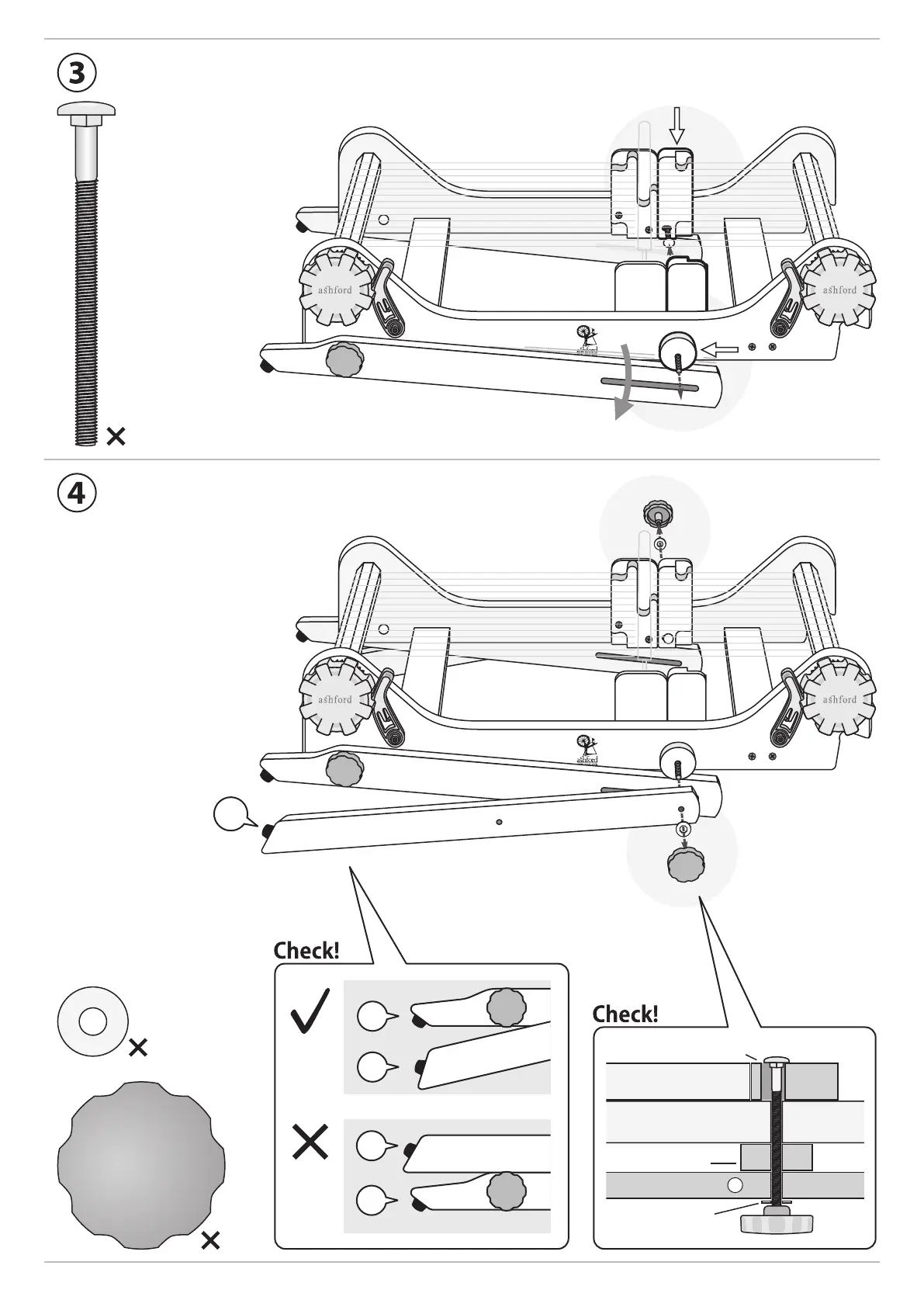

Push the
75mm (3”) bolt
through the
reed support
block and side
as illustrated
followed by the
spacer.
Then locate a leg B as
illustrated and secure
with a washer and knob.
Repeat for the other
side.
2
2
2
Knob
A
B
Knob
A
B
B
B
Loom side
Spacer
Washer
New reed support block
Reed support block
Spacer
Reed Support Block
