10.95
17.78
5.49
EXHAUST PIPE
FRESH AIR
INTAKE
Installation
OUTSIDE AIR SUPPLY (OPTIONAL, UNLESS INSTALLING IN A
MOBILE HOME)
Depending on your location and home construction,
outside air may be necessary for optimal performance.
Metal pipe (solid or exible) must be used for the outside
air installation. PVC pipe is NOT approved and should
NEVER be used.
A wind shield over the termination of the outside air
pipe or a 90-degree elbow or bend away from the
prevailing winds MUST be used when an outside air pipe
is installed through the side of a building. The outside air
termination MUST be at least 1ft (0.305m) away from the
exhaust system termination.
The outside air pipe on your heater is 2” (50.8mm) OD.
The outside air connecting pipe must be at least 2”
(50.8mm) ID. The outside air connection used MUST NOT
restrict the amount of air available to your heater. The
outside air connecting pipe must be as short and free
of bends as possible, and it must t over, not inside, the
outside air connection to the heater.
NOTE: Dimensions from the oor to your stoves
inlet/exhaust pipes are approximate and may vary
depending on your installation.

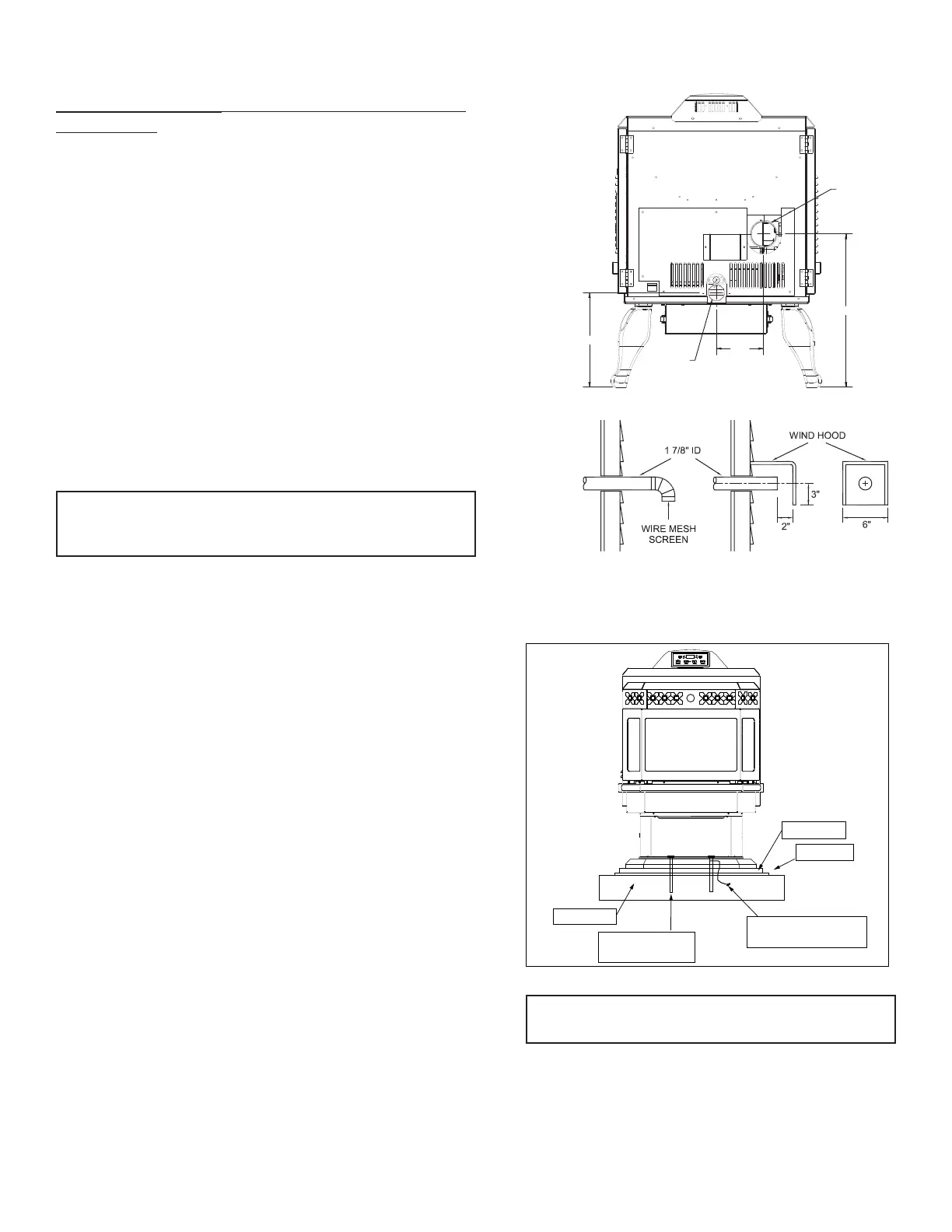

TYPICAL FRESH AIR TERMINATION
EXHAUST/INLET LOCATIONS
Mobile Home Installation
Mobile home installation should be done in accordance
with the Manufactured Home and Safety Standard (HUD),
CFR 3280, Part 24. Canadian installations require that the
heater must be connected to a 3 or 4 inch, factory-built
chimney conforming to CAN/ULC-S629. See the installation
illustrations in this manual for minimum height above the roof.
The chimney installation must allow for removal in case of
mobile home transportation, especially outside connections.
You may contact your local building authority or person
having jurisdiction on height restrictions.In order for this unit
to be installed in a mobile home the following criteria must
be met:
• The unit must be secured to the oor using lag bolts in the
holes provided in the pedestal base.
• Ensure that the unit is permanently electrically grounded
to the chassis of your home with 18 gauge copper wire.
• All exhaust systems must have a spark arrestor.
IT IS MANDATORY TO TAKE THE COMBUSTION AIR FROM
THE OUTSIDE WHEN INSTALLING THIS UNIT IN AIR TIGHT OR
MANUFACTURED/MOBILE HOMES.
CAUTION: The structural integrity of the manufactured home
oor, wall, and ceiling/roof must be maintained. Make sure
to maintain an effective vapor barrier by sealing with silicone
where the chimney or other components penetrate to the exterior of the structure. Refer to and follow the
chimney manufacturer’s installation instructions.
WARNING: Do not install in sleeping room.
NOTE: Only the free standing model is
approved for installation into a mobile home.
Figure 15
HEARTH PAD
FLOORING
GROUND WIRE, DIRECTLY
TO METAL CHASSIS
STEEL FRAME
1/4” LAG BOLTS,
SECURELY FASTENED
9
