Ask Technology HDEX0016M1 - Package Contents; Features of the Interface; TX Front and Rear Panel View; RX Front and Rear Panel View

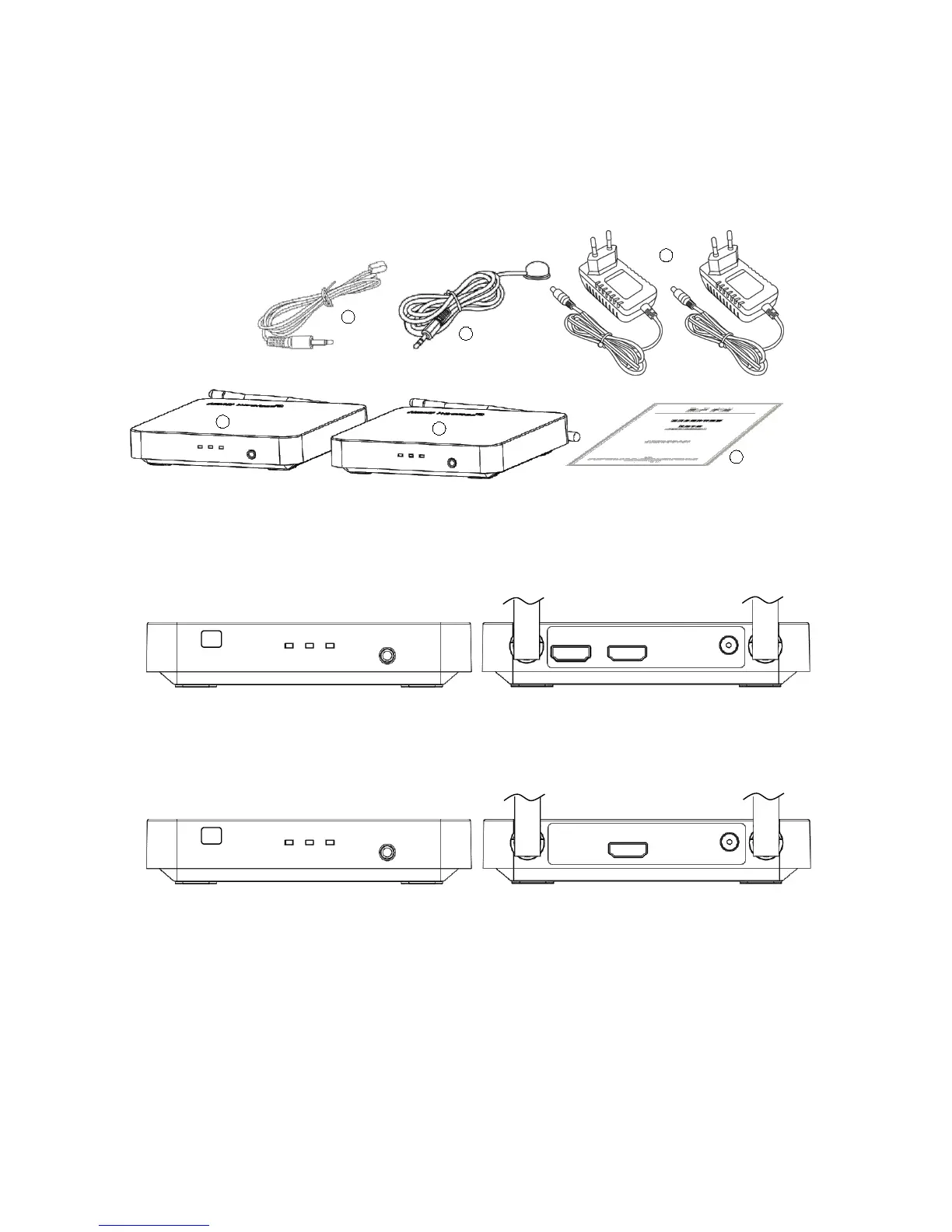

PACKAGE CONTENTS:
1. HDMI Wireless Transmitter 1pcs
2. HDMI Wireless Receiver 1pcs
3. IR Transmitter cable 1pcs
4. IR Receiver cable 1pcs
5. User manual 1pcs
6. DC power adapter 2pcs
FEATURES OF THE INTERFACE:
Transmitter (TX)
FIG.1 TX Front Panel View FIG.2 TX Rear Panel View
Receiver (RX)
FIG.3 RX Front Panel View FIG.4 RX Rear Panel View
POWER: Power indicator
STATUS: System status indicator
HDMI: HDMI input/output status indicator
IR OUT: Insert IR Transmitter cable
IR IN: Insert IR Receiver cable
HDMI IN: HDMI INPUT
HDMI OUT: HDMI OUTPUT
DC5V: 5V DC in jack
IR OUT
POWER STATUS HDMI
TX
HDMI IN
HDMI OUT
DC5V
IR IN
POWER STATUS HDMI
RX
HDMI OUT
DC5V
2
1
3
4
5
6
