EN 21
INSTALLATION
2
1
Fig.11
Fig.10
Fig.12

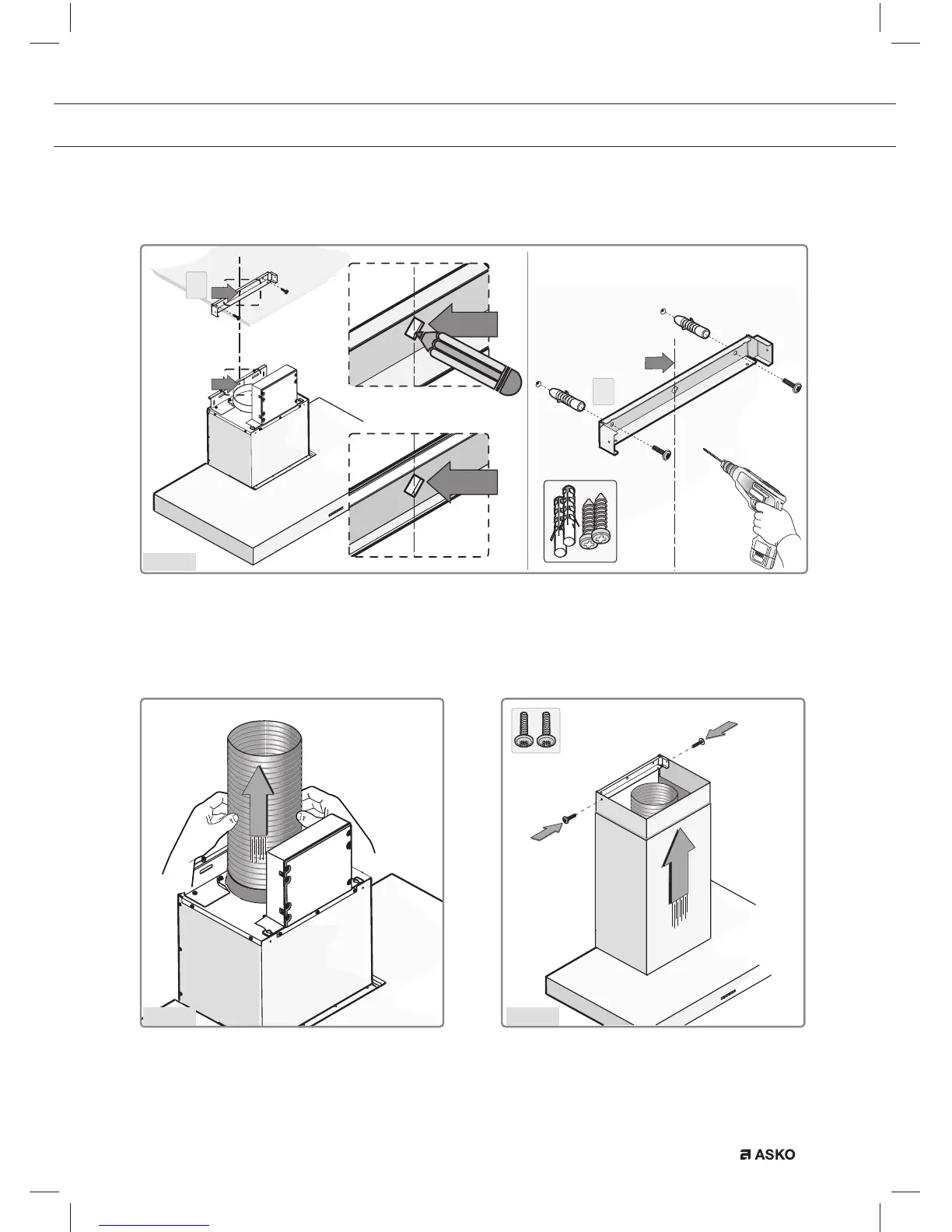

- Position the bracket referring to the sizes in Figure 1 and secure this with the supplied screws and
plugs (Fig.10).
- Connect the fl ange to the air outlet using a
tube (Fig.11).
- Place the top shaft in the bottom shaft and
put this on the hood’s casing. Slide the top
shaft against the bracket and secure this
with the two screws (Fig.12).
