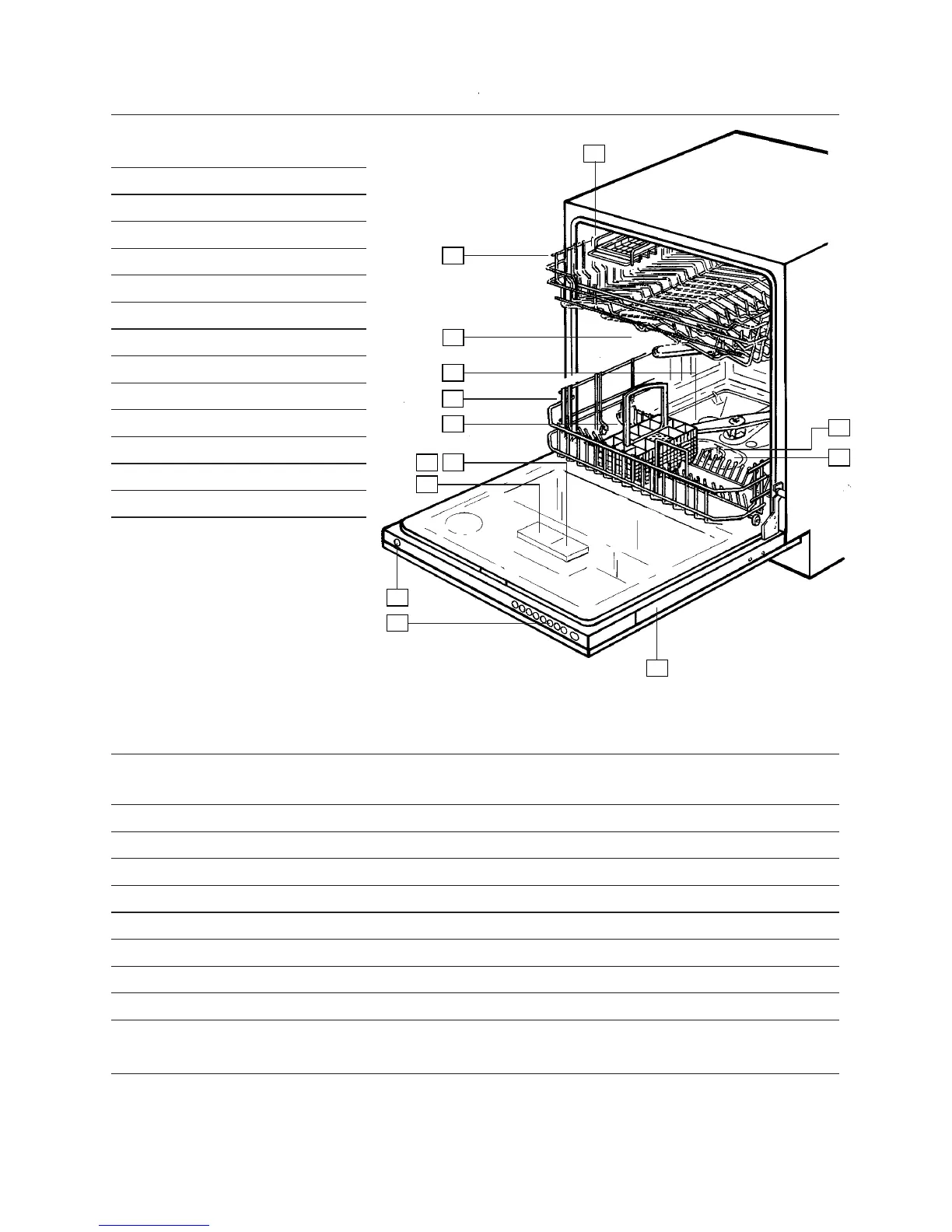

1. KNIFE BASKET
2. UPPER BASKET
3. LAMP
4. SPRAY ARMS
5.LOWER BASKET
6. CUTLERY BASKET
7. RINSE AID FILLING
8. RINSE AID DISPENSER
9. DETERGENT COMPARTMENT
10. MAIN POWER SWITCH
11. PROGRAMME PANEL
12. COARSE FILTER
13. FINE FILTER
14. TYPE PLATE
* Deviations may occur depending
on the model and the market con-
cerned.
THE PARTS OF THE DISHWASHER*
TECHNICAL DATA
HEIGHT 820–890 MM
WIDTH 596 MM
DEPTH 550 MM****
WEIGHT 48 KG/51 KG WITH SOFTENER*
CAPACITY** 14 COVERS
WATER PRESSURE 0,03–1,0 MPA (0,3–10 KP/CM
2
)
MAX. TEMPERATURE INLET-WATER 80° C
POWER SUPPLY SINGLE PHASE, 230 V, 50HZ 10/16A***
MAX. CONNECTING POWER 2 000 W***
ACCESSORIES WORKTOP, SIDE PLATES,
ANTI-TIP DEVICE, TRIMMING FRAMES
**According to standard, AS/NZS 2007.1.
***See type plate.
****Without wooden door fitted.
9
10
7
8
3
4
5
6
1
2
13
12
11
14
