Asko D5233 - Fitting the Dishwasher: Part 3; Final Securing and Leveling

33

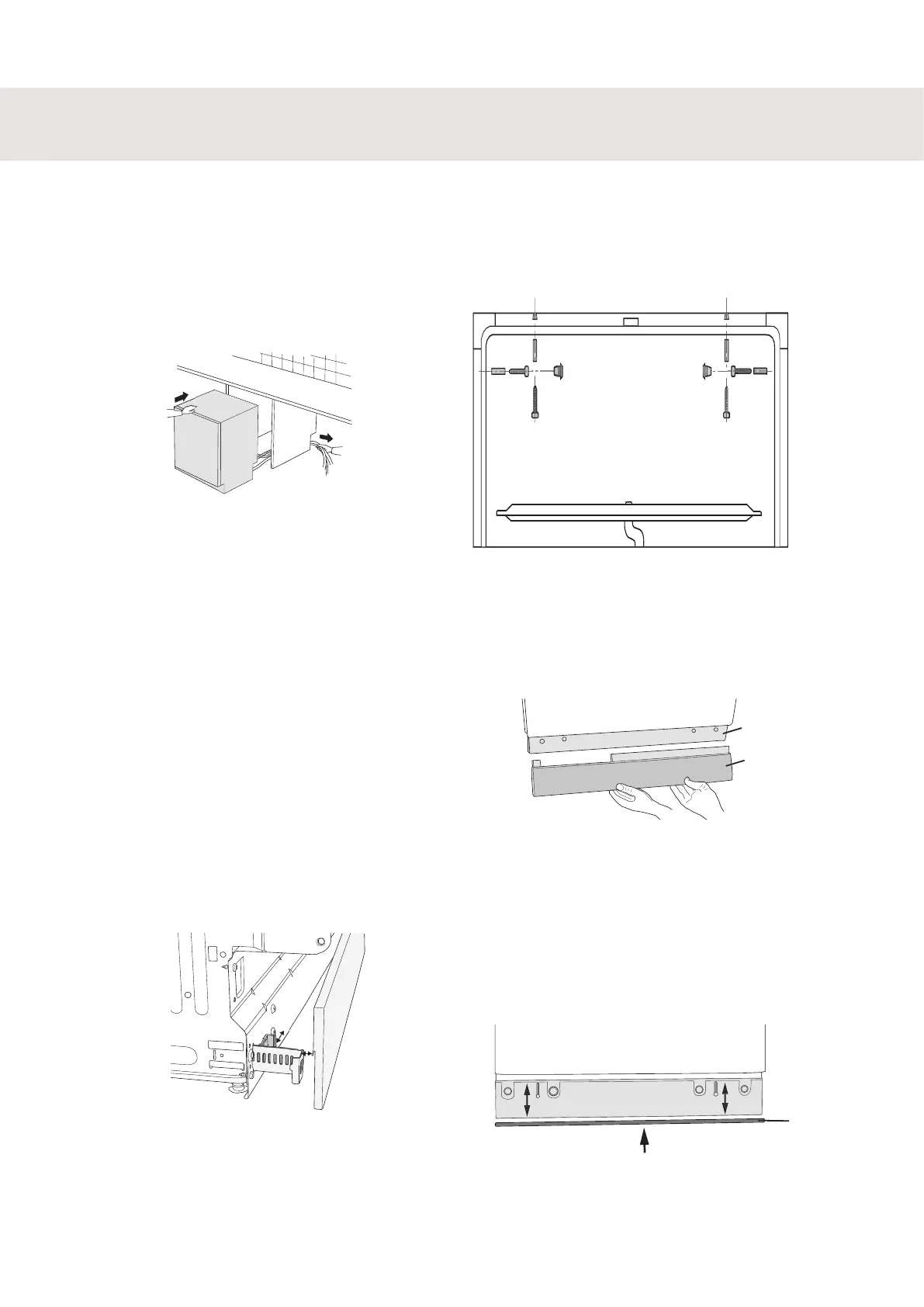

Screw the dishwasher into place
The enclosed plastic plugs are used for cover-
ing the screw holes if the dishwasher is to be
screwed at the sides. After fixing check that
the front feet are in contact with the floor.
Fitting strip seal
(on floor plinth covering plate)
Proceed as follows:
1. Remove the plastic plinth by gripping
with both hands under the plastic plinth
(A), and lift outwards and upwards.
2. Undo the two screws on the covering plate
(B).
3. Glue the accompanying rubber strip (C)
to the underside of the covering plate
(against the floor).
4. Screw the covering plate back into place.
Adjust the covering plate so that the rubber
strip is just in contact with the floor.
5. Replace the plastic plinth
Slide the dishwasher into place
• Pull the drainage hose and connection
pipe when the machine is pushed into
place.
• Check that the hose has no kinks or sharp
bends, and check that there is nothing that
can damage the hoses.
Installing the plinth (kick plate)
The dishwasher has two kick-plates (some
models). The taller one should be used if the
machine is to be 850 - 870 mm high and the
depth of the plinth can be varied between
45 - 105 mm. The lower one is to be used
if the machine will be 820 - 845 mm with a
plinth depth of between 50 - 105 mm. Attach
the enclosed felt insulation to the kick-plate
(some models).
Set the correct plinth depth as follows:
1. Bring the grey hooks towards each other
and pull out the brackets as far as required.
Press in the catches so that they lock the
brackets in place.
2. Suspend the kick-plate from the brackets
by pushing into the slots.
A
B
x
x
x
C
Not all models
