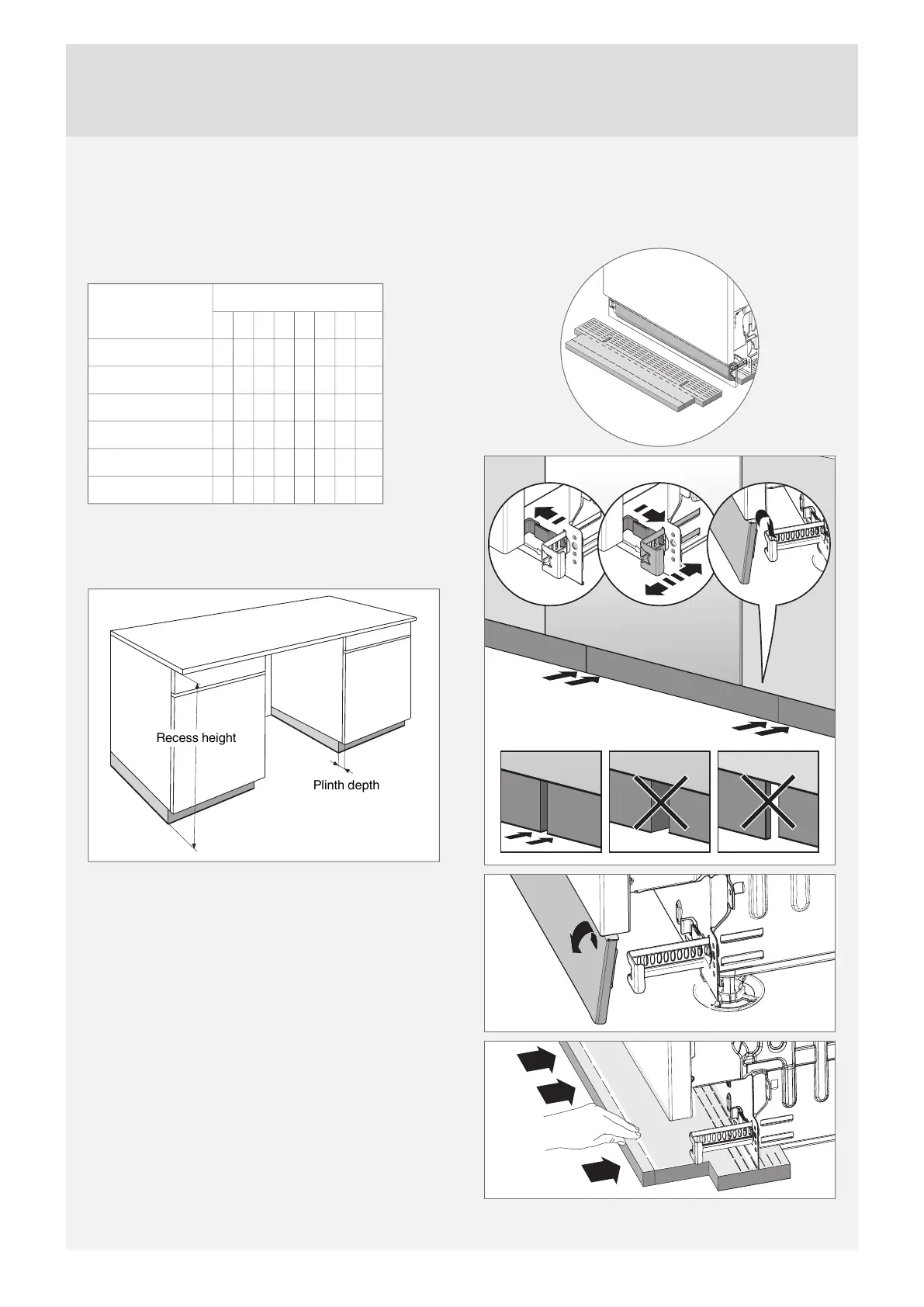

Adjusting the plinth (only when using
toe kick accessory)
The dishwasher is supplied with one or two toe kicks depending
on the model. The table shows which toe kick you should use
depending on the recess height and plinth depth.
Plinth depth (mm)Recess height (mm)
10090807060504030
HHHHLLLL860
HHHHHHHH870
HHHHHHHH880
HHHHHHHH890
HHHHHHHH900
HHHHHHHH910
Low toe kick (height=90 mm), article number 80 735 66L
High toe kick (height=120 mm), article number 80 735 67H
Recess height
Plinth depth
Set the correct plinth depth as follows
(Not applicable to all models)*
1.
2.
3.
