Adjust the height and slide the
dishwasher into place
1 Start by measuring the height from the floor to the bottom
edge of the worktop.
2 Measure the height from the floor to the top edge of the
dishwasher.

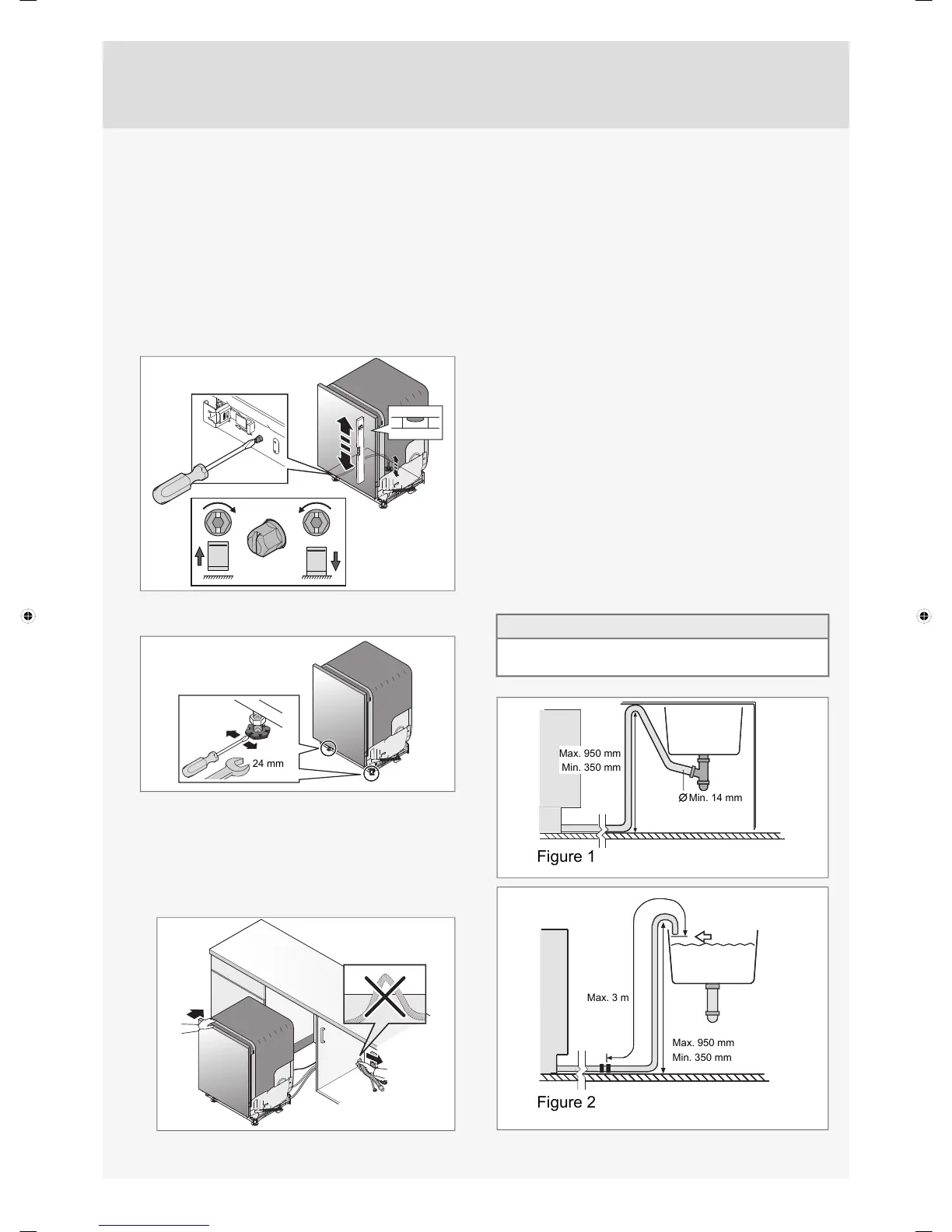

3 Lean the dishwasher forwards a little and roughly adjust the
rear foot by turning the adjustment screw at the front clockwise
to raise and anticlockwise to lower the dishwasher (see
illustration below). Use a broad screwdriver or a socket
screwdriver.
4 Adjust the front feet by turning them clockwise to raise and
anticlockwise to lower the dishwasher.
24 mm
5 Check that there is an air gap of at least 3 mm between the
underside of the worktop and the top edge of the dishwasher.
6 Slide the dishwasher into place.
• Pull through the drainage and supply hoses when the
machine is slid into place.
• Check that the hoses have no kinks or sharp bends, and
check that there is nothing that can damage the hoses.
7 Make any final adjustments to the feet (the dishwasher may
lean no more than 5 mm) and tighten the lock nuts on the front
feet.
If you want to install your dishwasher freestanding, skip steps 2,
3 and 6 above.
Drainage connection
When the drainage hose is routed to a connection nipple on the
sink unit's water trap (see illustration 1), please note that the hose
must be attached at the same height as the underside of the sink
unit, otherwise dishwater from the sink may flow back into the
dishwasher. The drainage hose is threaded onto the cone-shaped
connection pipe on the sink unit's water trap. The cone-shaped
pipe must be cut to an internal diameter of at least 14 mm. For
other connection alternatives, see illustrations 2 and 3.
The drainage hose may be extended by a maximum of 3 m (the
total length of the drainage hose must not exceed 4.5 m). Any
joins and connecting pipes must have an internal diameter of at
least 14 mm. However, the drainage hose should ideally be
replaced with a new hose without joins.
No part of the drainage hose may be more than 950 mm above
the bottom of the dishwasher. The hose must not be routed
directly to a floor drain or the like. In such cases, the hose can
act as a siphon and empty the dishwasher.
The hose must always discharge at least 350 mm above the
bottom of the machine.
Ensure that the drainage hose has no kinks.
NOTE!
The hose must be attached at the same height as the underside
of the sink.
Max. 950 mm
Min. 350 mm
Min. 14 mm
Figure 1
Max. 950 mm
Min. 350 mm
Max. 3 m
Figure 2
25
