Evacuation of the moist air can be
performed in two ways:
•
Waste air from the dryer cabinet is led to an
evacuation duct or an outlet in the wall using
the vent hose supplied. Recommended!
•
Ventilation out into the room where the dryer
cabinet is positioned.
Ventilation out into the room where the
dryer cabinet is positioned
•
Preferably open the door or window in the room
for the best ventilation.
•
When the dryer cabinet is built-in, the supplied
ventilation hose (only some markets) is
replaced with a permanent ventilation pipe with
a diameter of 100 mm.
•
The distance between the top edge of the
ventilation pipe and the ceiling must not be less
than 300 mm.
•
The ventilation pipe must reach outside of the
in-built cabinet.
•
Ensure a good air supply to the dryer cabinet’s
air intake.
•
The ventilation holes in the dryer cabinet must
not be blocked.

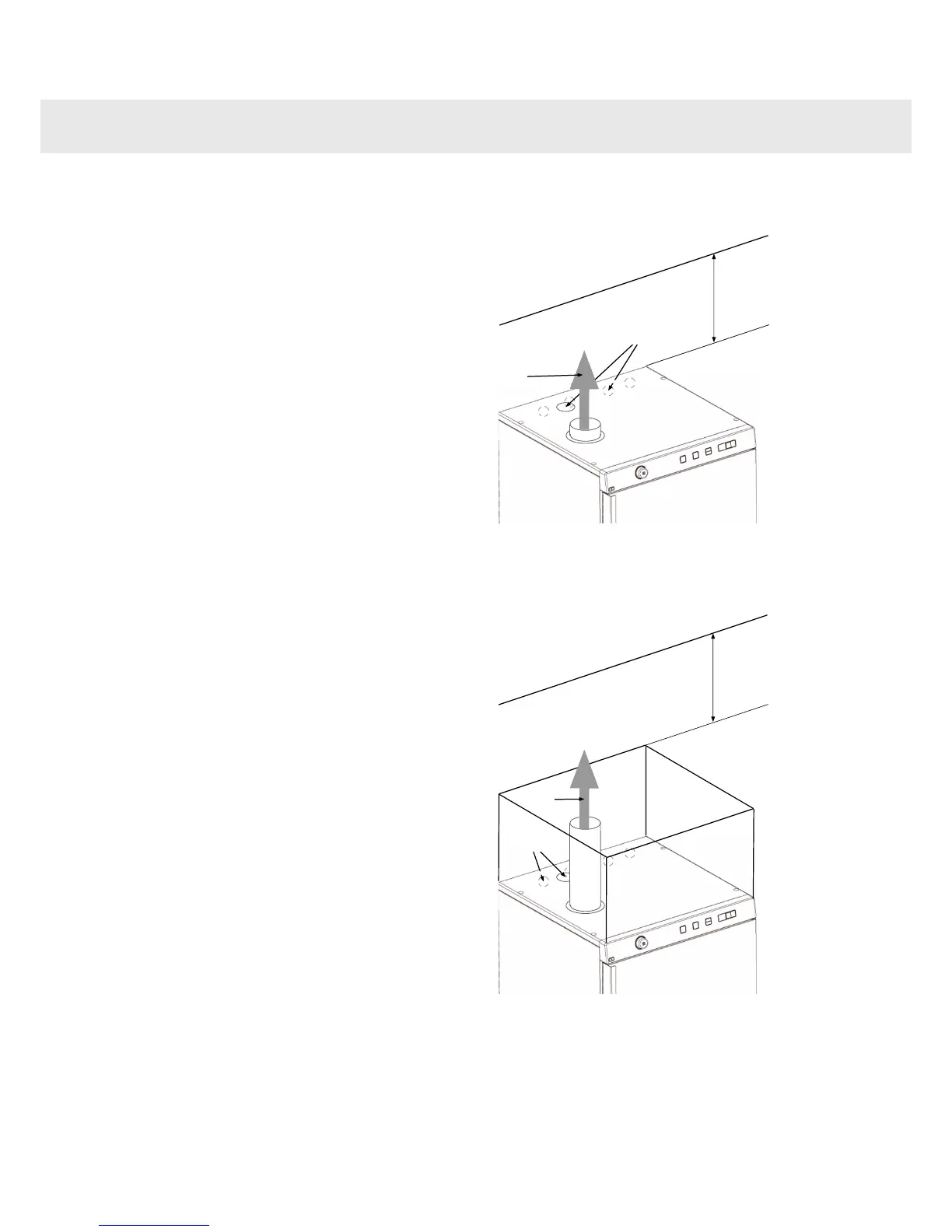

1.
Moist air out
2.
Air intake
2
Minimum 300
mm to the
ceiling
1
Ventilation out into the room where the dryer
cabinet is positioned. Dryer cabinet freestanding
Minimum 300
mm to the
ceiling
2
1
Ventilation out into the room where the dryer
cabinet is positioned. Dryer cabinet in-built in
tailored in-built cabinet.
9
Connect to the ventilation
